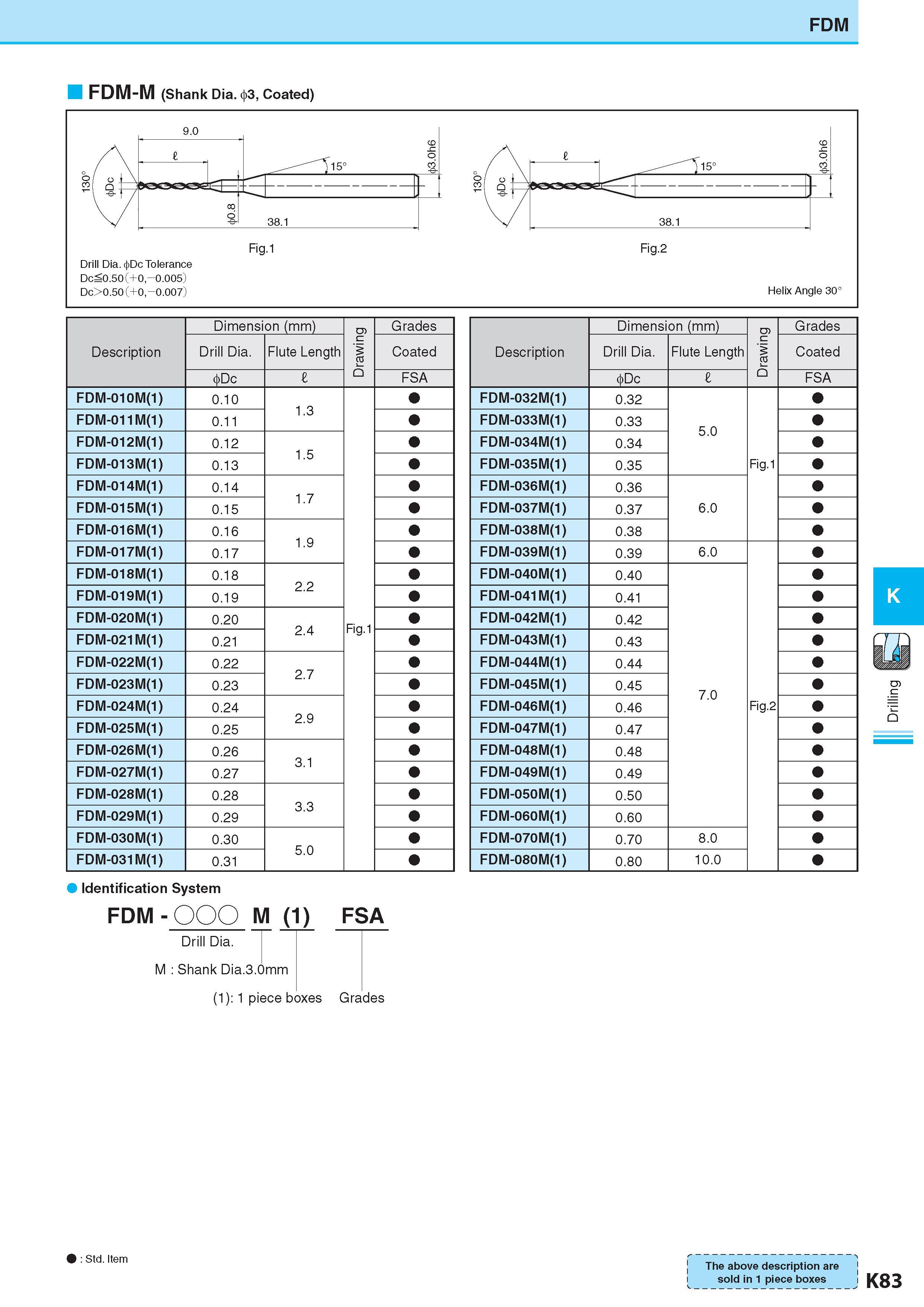

FDM FDM-M (Shank Dia. 03, Coated) Drill Dia. c)>Dc Tolerance DcS0.50 (+0-0.005) Dc>0.50 (+0,-0.007) Helix Angle 30° Dimension (mm) Размеры в мм Drawing Grades Description Обозначение Drill Dia. Flute Length Coated 0Dc 1 FSA FDM-032M(1) 0.32 FDM-033M(1) 0.33 5.0 FDM-034M(1) 0.34 FDM-035M(1) 0.35 Fig.1 FDM-036M(1) 0.36 FDM-037M(1) 0.37 6.0 FDM-038M(1) 0.38 FDM-039M(1) 0.39 6.0 FDM-040M(1) 0.40 FDM-041M(1) 0.41 FDM-042M(1) 0.42 FDM-043M(1) 0.43 FDM-044M(1) 0.44 FDM-045M(1) 0.45 7.0 FDM-046M(1) 0.46 Fig.2 FDM-047M(1) 0.47 FDM-048M(1) 0.48 FDM-049M(1) 0.49 FDM-050M(1) 0.50 FDM-060M(1) 0.60 FDM-070M(1) 0.70 8.0 FDM-080M(1) 0.80 10.0 Dimension (mm) Размеры в мм ro in 5 ar LJ Grades Description Обозначение Drill Dia. Flute Length Coated 0Dc 1 FSA FDM-010M(1) 0.10 1.3 FDM-011M(1) 0.11 FDM-012M(1) 0.12 1.5 FDM-013M(1) 0.13 FDM-014M(1) 0.14 1.7 FDM-015M(1) 0.15 FDM-016M(1) 0.16 1.9 FDM-017M(1) 0.17 FDM-018M(1) 0.18 2.2 FDM-019M(1) 0.19 FDM-020M(1) 0.20 2.4 Fig.1 FDM-021M(1) 0.21 FDM-022M(1) 0.22 2.7 FDM-023M(1) 0.23 FDM-024M(1) 0.24 2.9 FDM-025M(1) 0.25 FDM-026M(1) 0.26 3.1 FDM-027M(1) 0.27 FDM-028M(1) 0.28 3.3 FDM-029M(1) 0.29 FDM-030M(1) 0.30 5.0 FDM-031M(1) 0.31 Identification System FDM - OOO M (1) FSA Drill Dia. M : Shank Dia.3.0mm (1): 1 piece boxes Grades K : Std. Item Стандартная позиция The above description are j i sold in 1 piece boxes K83 Drilling
