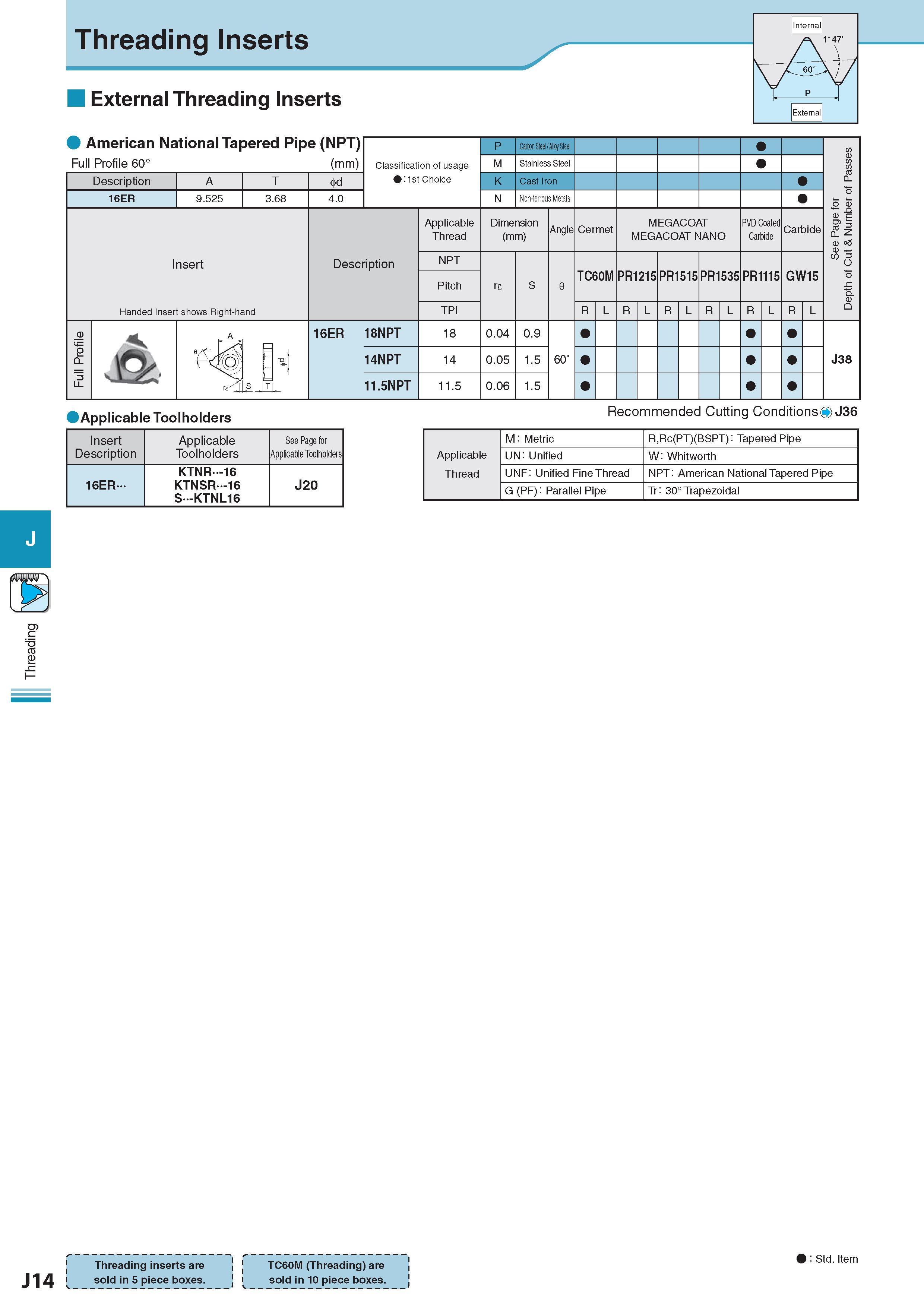

Threading Threading Inserts External Threading Inserts Internal 1°47‘ \ 60° V/ T P External American National Tapered Pipe (NPT) Full Profile 60° (mm) Description Обозначение 16ER A 9.525 T 3.68 Insert Handed Insert shows Right-hand 4.0 Classification of usage :1st Choice Description Обозначение Applicable Thread NPT Pitch TPI p M Carton Steel /Alloy Steel Stainless Steel Dimension (mm) Размеры в мм Angle Cermet TC60M R L MEGACOAT MEGACOAT NANO PR1215 R L PR1515 R L PR1535 R L PVD Coated Carbide PR1115 R L Carbide GW15 R L oe f b em m s A 16ER 18NPT 18 0.04 0.9 14NPT 14 0.05 1.5 60" J38 11.5NPT 11.5 0.06 1.5 Applicable Toolholders Recommended Cutting Conditions Рекомендованные режимы резания на станкахO J36 S 0 A Insert Description Обозначение Applicable Toolholders See Page for Applicable Toolholders KTNR-16 16ER KTNSR-16 J20 S-KTNL16 j Threading inserts are \ TC60M (Threading) are J14 l . sold in 5 piece boxes. sold in 10 piece boxes. M: Metric R,Rc(PT)(BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Tr: 30° Trapezoidal : Std. Item
