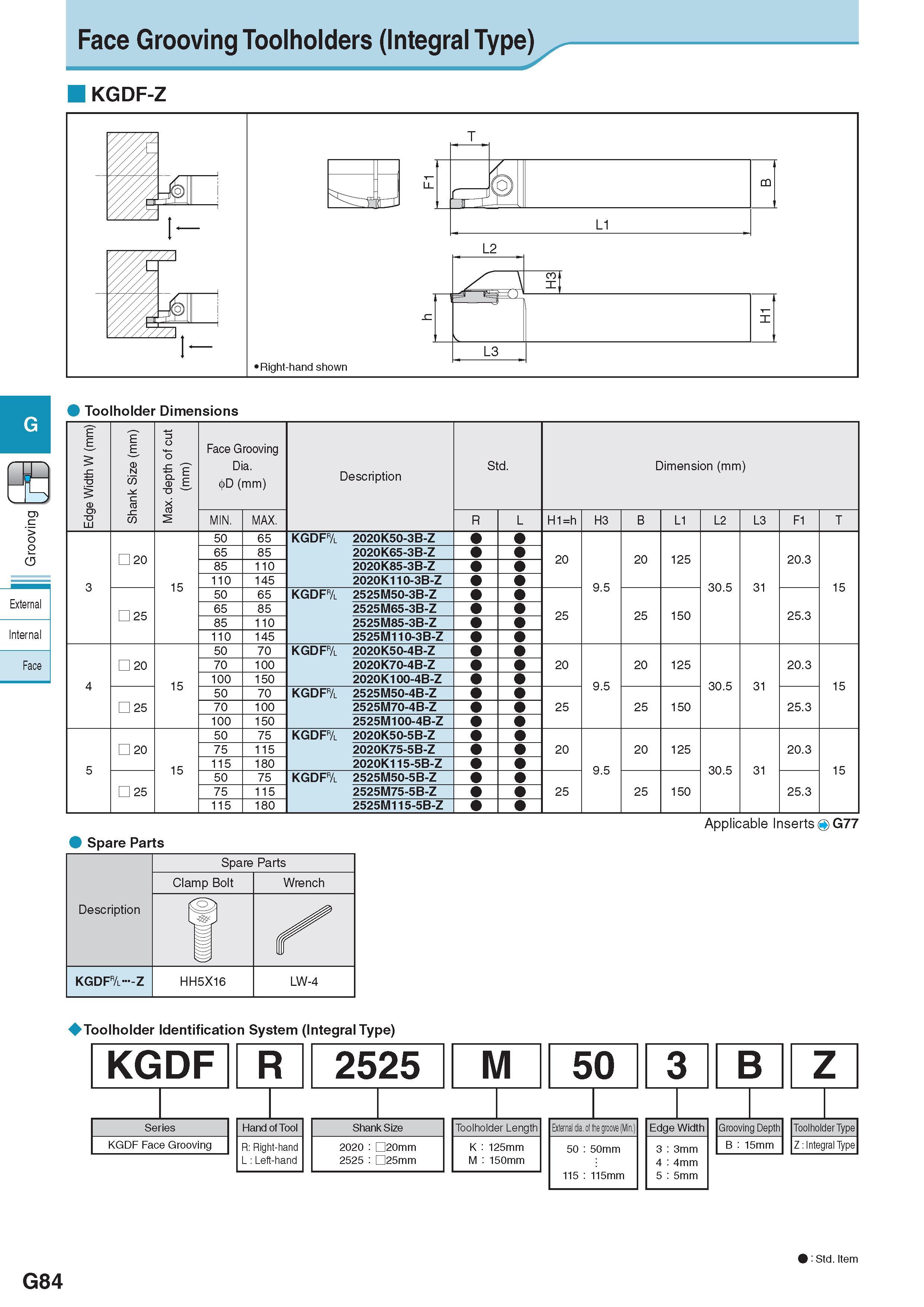

Face Grooving Toolholders (Integral Type) KGDF-Z Показано правое исполнение инструмента Toolholder Dimensions Edge Width W (mm) Shank Size (mm) Max. depth of cut (mm) Face Grooving Dia. (mm) Description Обозначение Std. Dimension (mm) Размеры в мм MIN. MAX. R L H1=h H3 B L1 L2 L3 F1 T 3 20 15 50 65 KGDF& 2020K50-3B-Z 20 9.5 20 125 30.5 31 20.3 15 65 85 2020K65-3B-Z 85 110 2020K85-3B-Z 110 145 2020K110-3B-Z 25 50 65 KGDF& 2525M50-3B-Z 25 25 150 25.3 65 85 2525M65-3B-Z 85 110 2525M85-3B-Z 110 145 2525M110-3B-Z 4 20 15 50 70 KGDF& 2020K50-4B-Z 20 9.5 20 125 30.5 31 20.3 15 70 100 2020K70-4B-Z 100 150 2020K100-4B-Z 25 50 70 KGDF& 2525M50-4B-Z 25 25 150 25.3 70 100 2525M70-4B-Z 100 150 2525M100-4B-Z 5 20 15 50 75 KGDF& 2020K50-5B-Z 20 9.5 20 125 30.5 31 20.3 15 75 115 2020K75-5B-Z 115 180 2020K115-5B-Z 25 50 75 KGDF& 2525M50-5B-Z 25 25 150 25.3 75 115 2525M75-5B-Z 115 180 2525M115-5B-Z External Internal Face Spare Parts Applicable Inserts O G77 Toolholder Identification System (Integral Type) KGDF R 2525 M 50 3 B Z Series Hand of Tool Shank Size Toolholder Length External dia. of the groove (Min.) Edge Width Grooving Depth Toolholder Type KGDF Face Grooving R: Right-hand L : Left-hand 2020 : 20mm 2525 : 25mm K : 125mm M : 150mm 50 : 50mm 115 : 115mm 3 : 3mm 4 : 4mm 5 : 5mm B : 15mm Z : Integral Type G G84 : Std. Item
