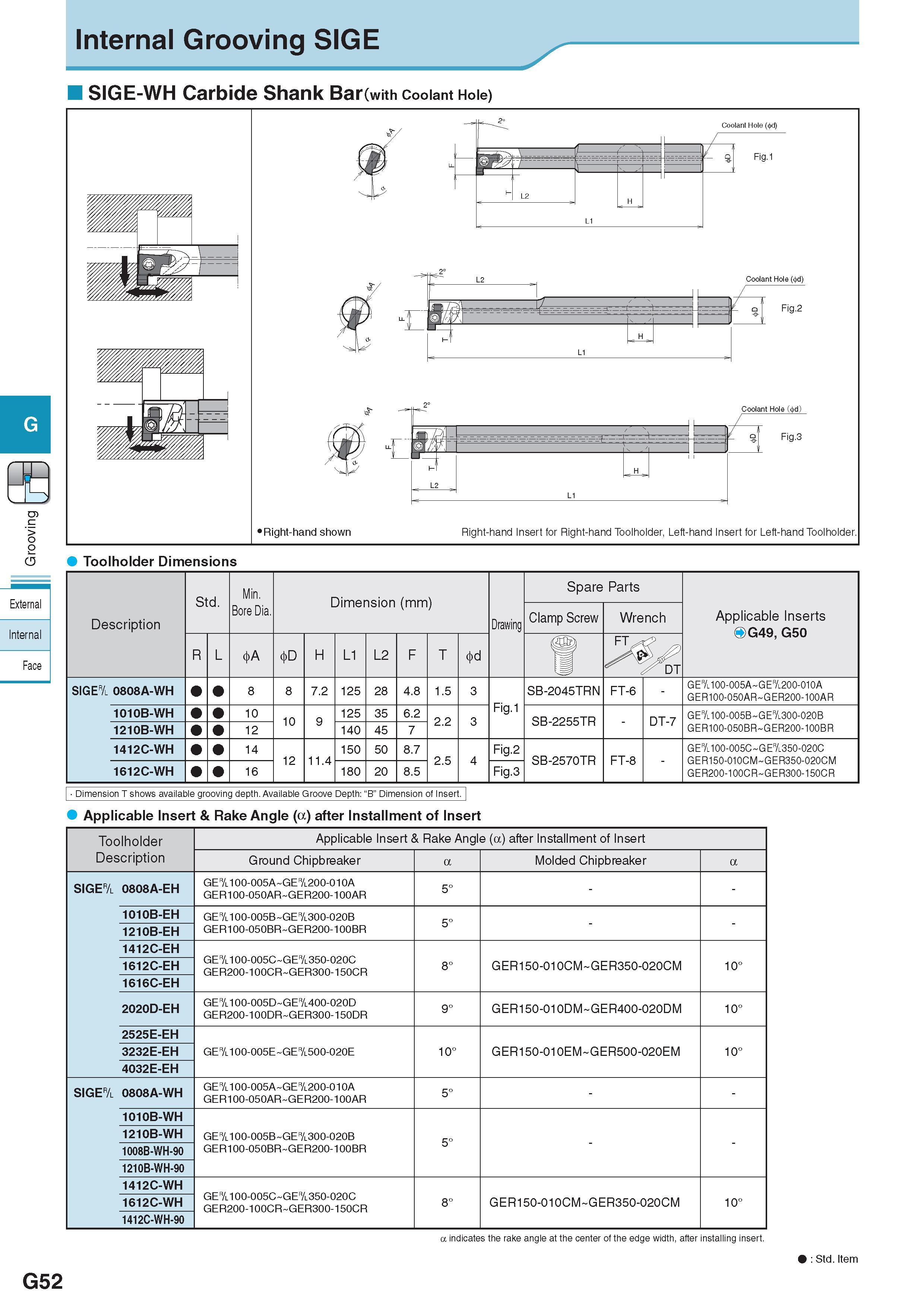

Internal Grooving SIGE SIGE-WH Carbide Shank Bar(with Coolant Hole) H M / 1 731 U- T T) t - ilir - r / EM irH H Coolant Hole (<£d) Fig.2 \m Pi- - 4 -4, 1 / n \mm "nrH Coolant Hole ( ftd) Fig.3 Показано правое исполнение инструмента Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм Drawing Spare Parts Applicable Inserts OG49, G50 Clamp Screw Wrench R L A D H L1 L2 F T d ( j) SIGE& 0808A-WH 8 8 7.2 125 28 4.8 1.5 3 Fig.l SB-2045TRN FT-6 - GE& 100-005A GE&200-010A GER100-050AR GER200-100AR 1010B-WH 10 10 9 125 35 6.2 2.2 3 SB-2255TR - DT-7 GE&100-005B GE&300-020B GER100-050BR GER200-100BR 1210B-WH 12 140 45 7 1412C-WH 14 12 11.4 150 50 8.7 2.5 4 Fig.2 SB-2570TR FT-8 - GE&100-005C GE&350-020C GER150-010CM GER350-020CM GER200-100CR GER300-150CR 1612C-WH 16 180 20 8.5 Fig.3 External Internal Face Dimension T shows available grooving depth. Available Groove Depth: “B” Dimension of Insert. Applicable Insert & Rake Angle (a) after Installment of Insert L2 L1 G H L2 L1 Toolholder Description Обозначение Applicable Insert & Rake Angle (a) after Installment of Insert Ground Chipbreaker Стружколом сменной пластины a Molded Chipbreaker Стружколом сменной пластины a SIGE& 0808A-EH GE&100-005A GE&200-010A GER100-050AR GER200-100AR 5° 1010B-EH GE&100-005B GE&300-020B GER100-050BR GER200-100BR 5° 1210B-EH 1412C-EH GE&100-005C GE&350-020C GER200-100CR GER300-150CR 8° GER150-010CM GER350-020CM 10° 1612C-EH 1616C-EH 2020D-EH GE&100-005D GE&400-020D GER200-100DR GER300-150DR 9° GER150-010DM GER400-020DM 10° 2525E-EH GE&100-005E GE&500-020E 10° GER150-010EM GER500-020EM 10° 3232E-EH 4032E-EH SIGE& 0808A-WH GE&100-005A GE&200-010A GER100-050AR GER200-100AR 5° 1010B-WH GE&100-005B GE&300-020B GER100-050BR GER200-100BR 5° 1210B-WH 1008B-WH-90 1210B-WH-90 1412C-WH GE&100-005C GE&350-020C GER200-100CR GER300-150CR 8° GER150-010CM GER350-020CM 10° 1612C-WH 1412C-WH-90 a indicates the rake angle at the center of the edge width, after installing insert. : Std. Item Стандартная позиция G52
