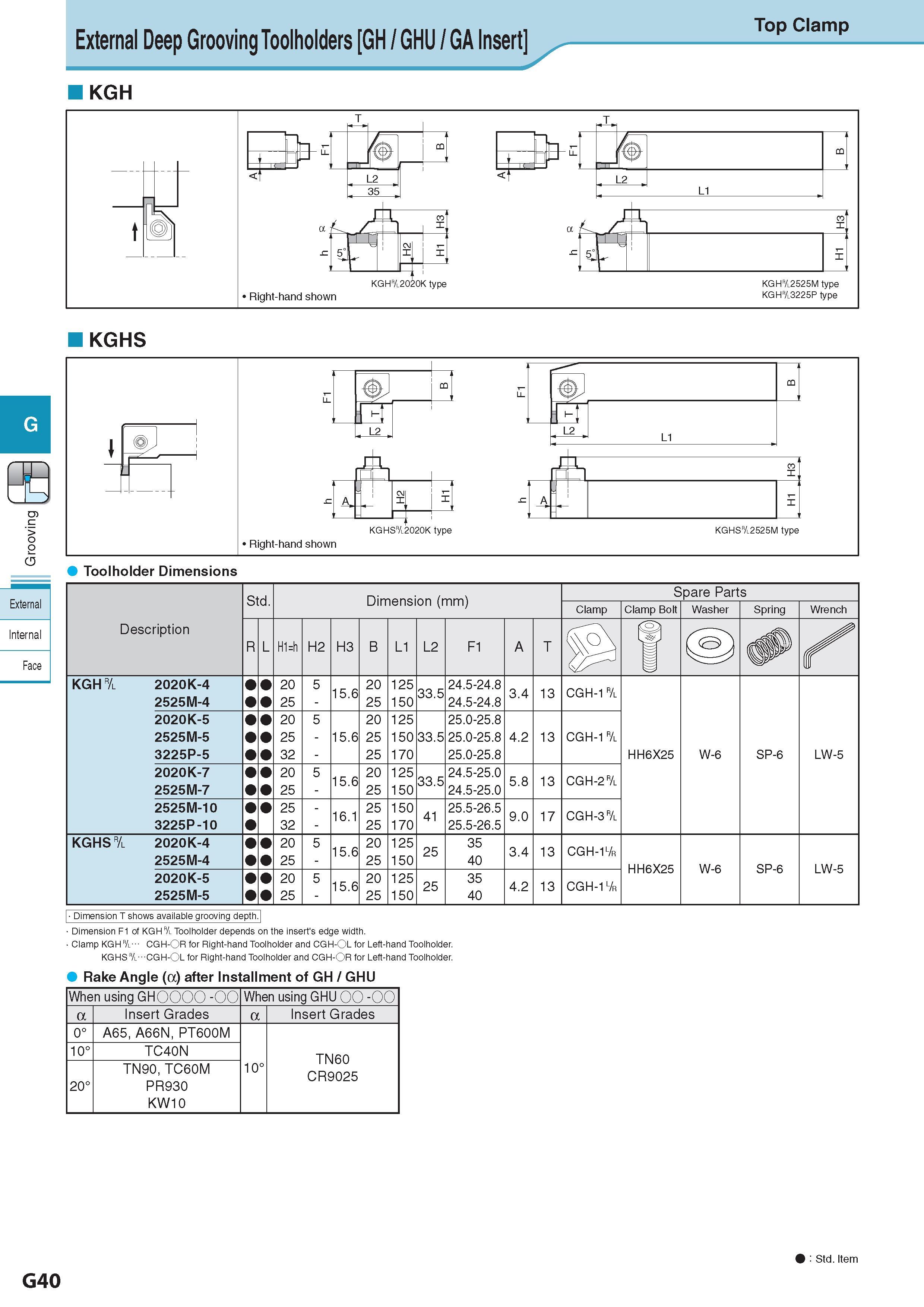

External Deep Grooving Toolholders GH / GHU / GA Insert Top Clamp KGH KGHS Description Обозначение Std. Dimension (mm) Размеры в мм Spare Parts Clamp Clamp Bolt Washer Spring Wrench R L H1=h H2 H3 B L1 L2 F1 A T P, s KGH & 2020K-4 2525M-4 20 25 5 15.6 20 25 125 150 33.5 24.5-24.8 24.5-24.8 3.4 13 CGH-1 & HH6X25 W-6 SP-6 LW-5 2020K-5 2525M-5 3225P-5 20 25 32 5 15.6 20 25 25 125 150 170 33.5 25.0-25.8 25.0-25.8 25.0-25.8 4.2 13 CGH-1 & 2020K-7 2525M-7 20 25 5 15.6 20 25 125 150 33.5 24.5-25.0 24.5-25.0 5.8 13 CGH-2 & 2525M-10 3225P-10 25 32 - 16.1 25 25 150 170 41 25.5-26.5 25.5-26.5 9.0 17 CGH-3 & KGHS & 2020K-4 2525M-4 20 25 5 15.6 20 25 125 150 25 35 40 3.4 13 CGH-1l/r HH6X25 W-6 SP-6 LW-5 2020K-5 2525M-5 20 25 5 15.6 20 25 125 150 25 35 40 4.2 13 CGH-1l/r External Internal Face Dimension T shows available grooving depth.) Dimension F1 of KGH & Toolholder depends on the insert's edge width. Clamp KGH& CGH-OR for Right-hand Toolholder and CGH-OL for Left-hand Toolholder. KGHS&-CGH-OL for Right-hand Toolholder and CGH-OR for Left-hand Toolholder. Rake Angle (a) after Installment of GH / GHU When using GHOOOO -OO When using GHU OO -OO a Insert Grades a Insert Grades 0° A65, A66N, PT600M 10° TC40N TN60 CR9025 20° TN90, TC60M PR930 KW10 10° G40 9 : Std. Item
