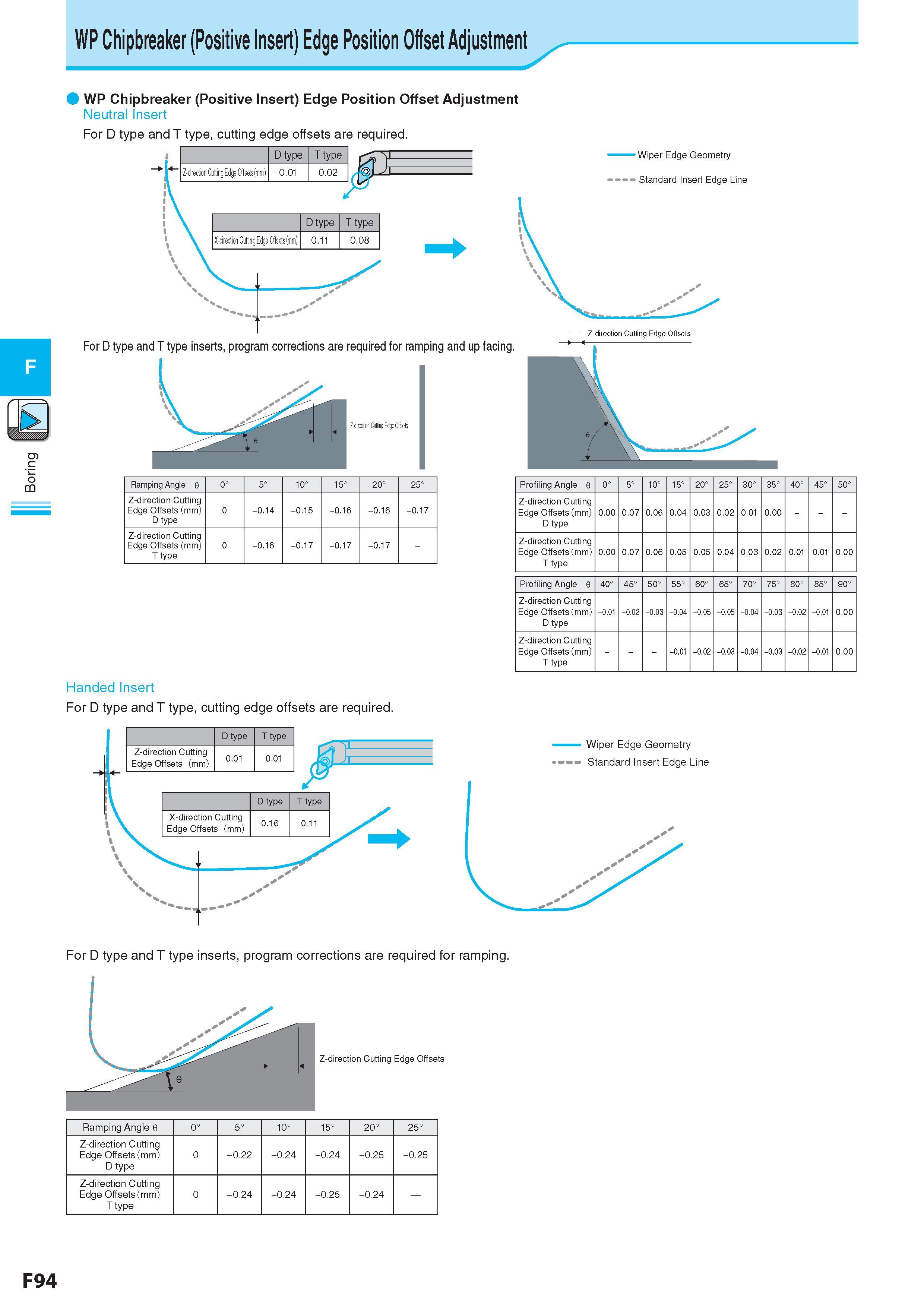

B Boring WP Chipbreaker Стружколом сменной пластины (Positive Insert) Edge Position Offset Adjustment WP Chipbreaker Стружколом сменной пластины (Positive Insert) Edge Position Offset Adjustment Neutral Insert For D type and T type, cutting edge offsets are required. D = D type T type Z-direction Cutting Edge Offsets(mm) 0.01 0.02 D type T type X-direction Cutting Edge Offsets (mm) 0.11 0.08 For D type and T type inserts, program corrections are required for ramping and up facing. Wiper Edge Geometry Standard Insert Edge Line Handed Insert For D type and T type, cutting edge offsets are required. Wiper Edge Geometry Standard Insert Edge Line For D type and T type inserts, program corrections are required for ramping. Z-direction Cutting Edge Offsets Ramping Angle 0 0° 5° 10° 15° 20° 25° Z-direction Cutting Edge Offsets (mm) D type 0 -0.22 -0.24 -0.24 -0.25 -0.25 Z-direction Cutting Edge Offsets (mm) T type 0 -0.24 -0.24 -0.25 -0.24 - F94
