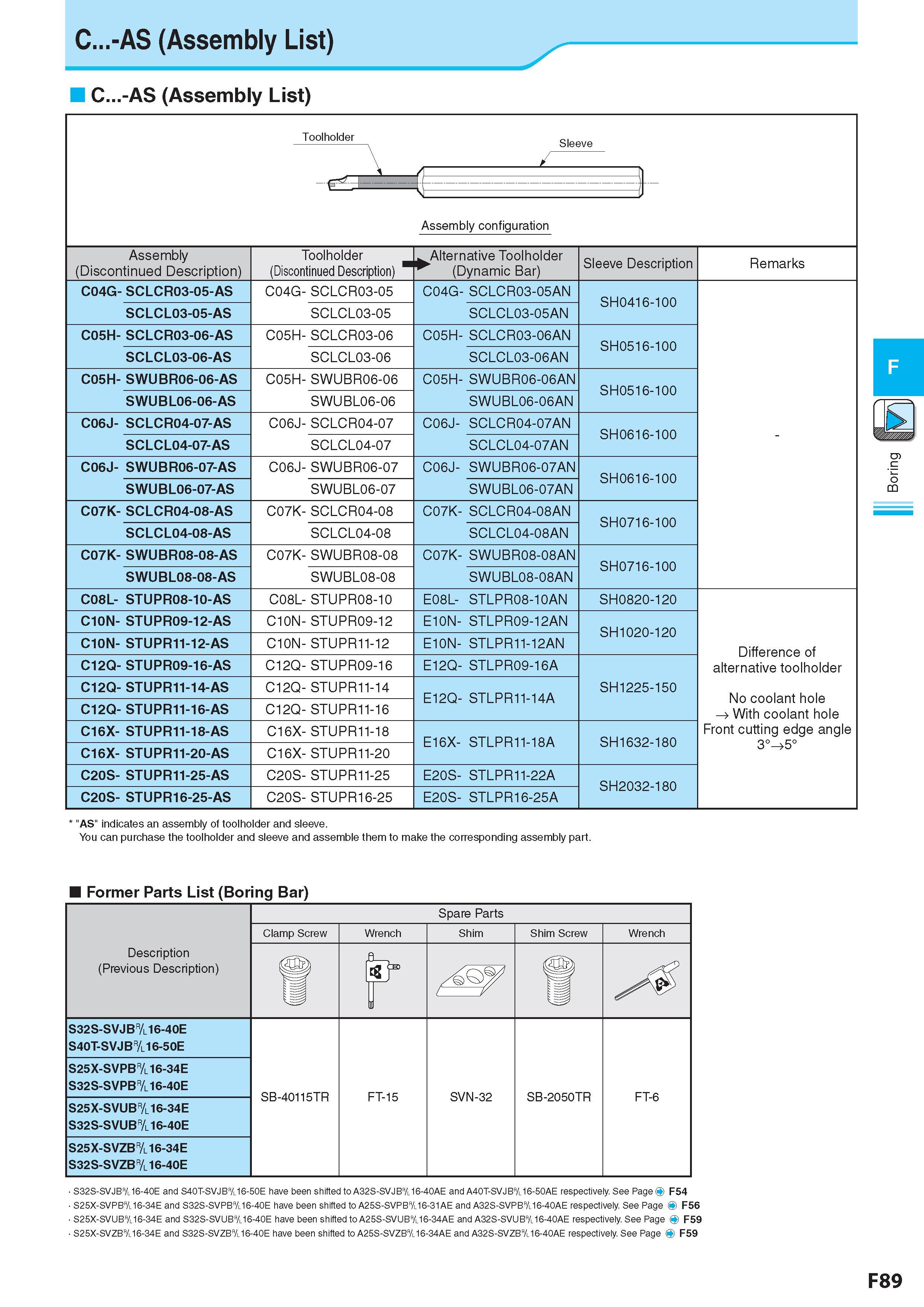

C...-AS (Assembly List) C...-AS (Assembly List) Toolholder \ r Sleeve - , ( Assembly configuration Assembly (Discontinued Description) Toolholder (Discontinued Description) Alternative Toolholder (Dynamic Bar) Sleeve Description Обозначение Remarks Примечания C04G- SCLCR03-05-AS C04G- SCLCR03-05 C04G- SCLCR03-05AN SH0416-100 - SCLCL03-05-AS SCLCL03-05 SCLCL03-05AN C05H- SCLCR03-06-AS C05H- SCLCR03-06 C05H- SCLCR03-06AN SH0516-100 SCLCL03-06-AS SCLCL03-06 SCLCL03-06AN C05H- SWUBR06-06-AS C05H- SWUBR06-06 C05H- SWUBR06-06AN SH0516-100 SWUBL06-06-AS SWUBL06-06 SWUBL06-06AN C06J- SCLCR04-07-AS C06J- SCLCR04-07 C06J- SCLCR04-07AN SH0616-100 SCLCL04-07-AS SCLCL04-07 SCLCL04-07AN C06J- SWUBR06-07-AS C06J- SWUBR06-07 C06J- SWUBR06-07AN SH0616-100 SWUBL06-07-AS SWUBL06-07 SWUBL06-07AN C07K- SCLCR04-08-AS C07K- SCLCR04-08 C07K- SCLCR04-08AN SH0716-100 SCLCL04-08-AS SCLCL04-08 SCLCL04-08AN C07K- SWUBR08-08-AS C07K- SWUBR08-08 C07K- SWUBR08-08AN SH0716-100 SWUBL08-08-AS SWUBL08-08 SWUBL08-08AN C08L- STUPR08-10-AS C08L- STUPR08-10 E08L- STLPR08-10AN SH0820-120 Difference of alternative toolholder No coolant hole With coolant hole Front cutting edge angle 3° 5° C10N- STUPR09-12-AS C10N- STUPR09-12 E10N- STLPR09-12AN SH1020-120 C10N- STUPR11-12-AS C10N- STUPR11-12 E10N- STLPR11-12AN C12Q- STUPR09-16-AS C12Q- STUPR09-16 E12Q- STLPR09-16A SH1225-150 C12Q- STUPR11-14-AS C12Q- STUPR11-14 E12Q- STLPR11-14A C12Q- STUPR11-16-AS C12Q- STUPR11-16 C16X- STUPR11-18-AS C16X- STUPR11-18 E16X- STLPR11-18A SH1632-180 C16X- STUPR11-20-AS C16X- STUPR11-20 C20S- STUPR11-25-AS C20S- STUPR11-25 E20S- STLPR11-22A SH2032-180 C20S- STUPR16-25-AS C20S- STUPR16-25 E20S- STLPR16-25A "AS" indicates an assembly of toolholder and sleeve. You can purchase the toolholder and sleeve and assemble them to make the corresponding assembly part. Former Parts List (Boring Bar) Description Обозначение (Previous Description) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench u ( 8 " fif S32S-SVJB & 16-40E S40T-SVJB & 16-50E S25X-SVPB & 16-34E S32S-SVPB & 16-40E S25X-SVUB&16-34E S32S-SVUB&16-40E S25X-SVZB & 16-34E S32S-SVZB & 16-40E SB-40115TR FT-15 SVN-32 SB-2050TR FT-6 S32S-SVJB&16-40E and S40T-SVJB&16-50E have been shifted to A32S-SVJB&16-40AE and A40T-SVJB&16-50AE respectively. See Page F54 S25X-SVPB&16-34E and S32S-SVPB&16-40E have been shifted to A25S-SVPB&16-31AE and A32S-SVPB&16-40AE respectively. See Page F56 S25X-SVUB&16-34E and S32S-SVUB&16-40E have been shifted to A25S-SVUB&16-34AE and A32S-SVUB&16-40AE respectively. See Page F59 S25X-SVZB&16-34E and S32S-SVZB&16-40E have been shifted to A25S-SVZB&16-34AE and A32S-SVZB&16-40AE respectively. See Page F59 F89 Boring
