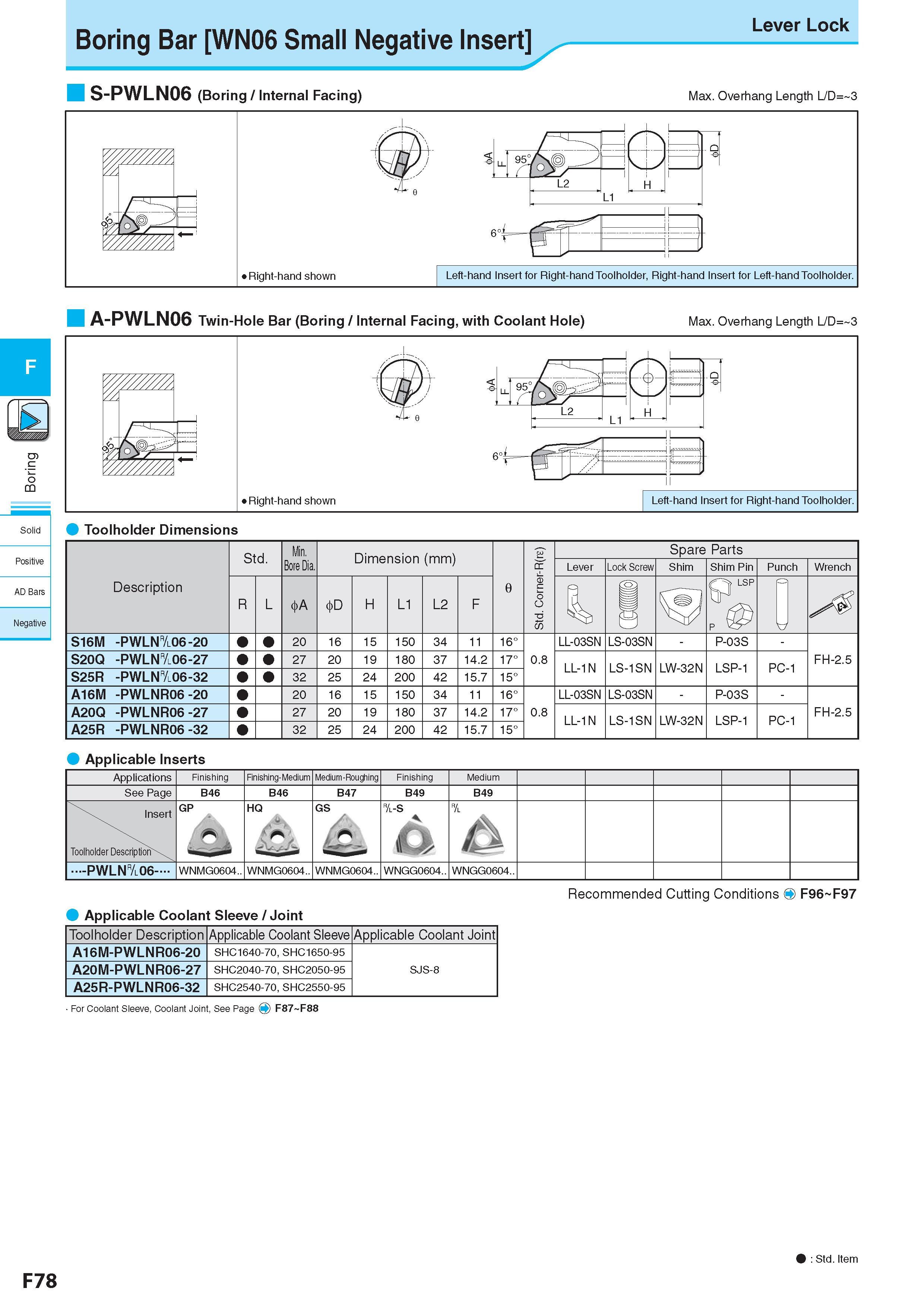

Boring Bar WN06 Small Negative Insert Lever Lock S-PWLN06 (Boring / Internal Facing) Max. Overhang Length L/D= 3 c o CQ Solid Positive AD Bars Negative A-PWLN06 Twin-Hole Bar (Boring / Internal Facing, with Coolant Hole) Max. Overhang Length L/D= 3 Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм e CC er nr or o td. Spare Parts Lever Lock Screw Shim Shim Pin Punch Wrench R L D H L1 L2 F 1 P- S16M -PWLN&06-20 20 16 15 150 34 11 16° 0.8 LL-03SN LS-03SN - P-03S - FH-2.5 S20Q -PWLN&06-27 27 20 19 180 37 14.2 17° LL-1N LS-1SN LW-32N LSP-1 PC-1 S25R -PWLN&06-32 32 25 24 200 42 15.7 15° A16M -PWLNR06 -20 20 16 15 150 34 11 16° 0.8 LL-03SN LS-03SN - P-03S - FH-2.5 A20Q -PWLNR06 -27 27 20 19 180 37 14.2 17° LL-1N LS-1SN LW-32N LSP-1 PC-1 A25R -PWLNR06 -32 32 25 24 200 42 15.7 15° Applicable Inserts Applications Finishing Finishing-Medium Medium-Roughing Finishing Medium See Page B46 B46 B47 B49 B49 Insert Toolholder Description Обозначение GP , HQ GS t.. &-S o h/l ...-PWLN&06 WNMG0604.. WNMG0604.. WNMG0604.. WNGG0604.. WNGG0604.. Recommended Cutting Conditions Рекомендованные режимы резания на станках O F96 F97 Applicable Coolant Sleeve / Joint Toolholder Description Обозначение Applicable Coolant Sleeve Applicable Coolant Joint A16M-PWLNR06-20 SHC1640-70, SHC1650-95 SJS-8 A20M-PWLNR06-27 SHC2040-70, SHC2050-95 A25R-PWLNR06-32 SHC2540-70, SHC2550-95 For Coolant Sleeve, Coolant Joint, See Page O F87 F88 F78 : Std. Item
