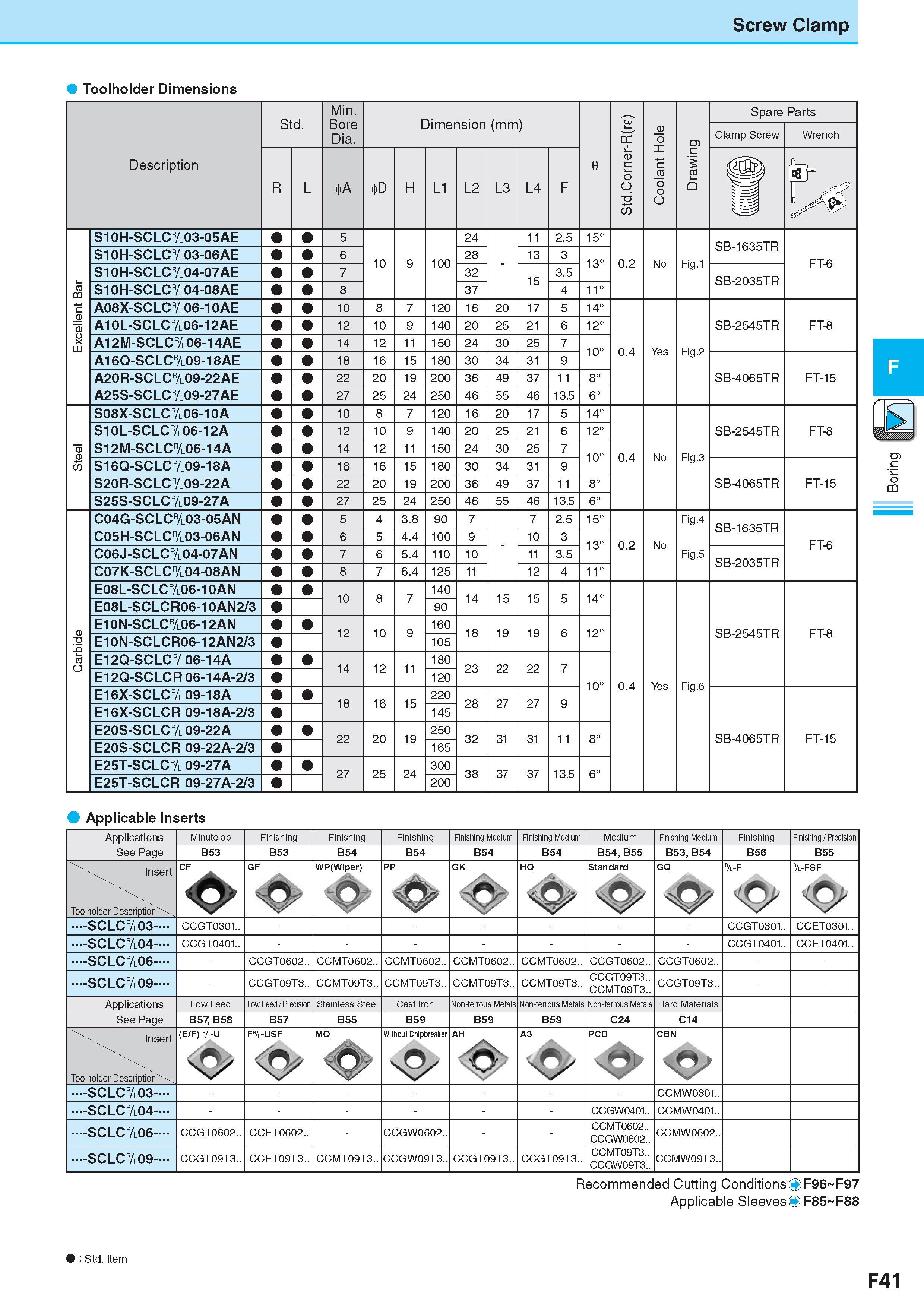

Screw Clamp Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм e Std.Corner-R(re) Coolant Hole Drawing Spare Parts Clamp Screw Wrench R L 4>A D H L1 L2 L3 L4 F u Excellent Bar S10H-SCLC&03-05AE 5 10 9 100 24 - 11 2.5 15° 0.2 No Fig.1 SB-1635TR FT-6 S10H-SCLC&03-06AE 6 28 13 3 13° S10H-SCLC&04-07AE 7 32 15 3.5 SB-2035TR S10H-SCLC&04-08AE 8 37 4 11° A08X-SCLC&06-10AE 10 8 7 120 16 20 17 5 14° 0.4 Yes Fig.2 SB-2545TR FT-8 A10L-SCLC&06-12AE 12 10 9 140 20 25 21 6 12° A12M-SCLC&06-14AE 14 12 11 150 24 30 25 7 10° A16Q-SCLC&09-18AE 18 16 15 180 30 34 31 9 SB-4065TR FT-15 A20R-SCLC&09-22AE 22 20 19 200 36 49 37 11 8° A25S-SCLC&09-27AE 27 25 24 250 46 55 46 13.5 6° Steel S08X-SCLC&06-10A 10 8 7 120 16 20 17 5 14° 0.4 No Fig.3 SB-2545TR FT-8 S10L-SCLC&06-12A 12 10 9 140 20 25 21 6 12° S12M-SCLC&06-14A 14 12 11 150 24 30 25 7 10° S16Q-SCLC&09-18A 18 16 15 180 30 34 31 9 SB-4065TR FT-15 S20R-SCLC&09-22A 22 20 19 200 36 49 37 11 8° S25S-SCLC&09-27A 27 25 24 250 46 55 46 13.5 6° Carbide C04G-SCLC&03-05AN 5 4 3.8 90 7 - 7 2.5 15° 0.2 No Fig.4 SB-1635TR FT-6 C05H-SCLC&03-06AN 6 5 4.4 100 9 10 3 13° Fig.5 C06J-SCLC&04-07AN 7 6 5.4 110 10 11 3.5 SB-2035TR C07K-SCLC&04-08AN 8 7 6.4 125 11 12 4 11° E08L-SCLC&06-10AN 10 8 7 140 14 15 15 5 14° 0.4 Yes Fig.6 SB-2545TR FT-8 E08L-SCLCR06-10AN2/3 90 E10N-SCLC&06-12AN 12 10 9 160 18 19 19 6 12° E10N-SCLCR06-12AN2/3 105 E12Q-SCLC&06-14A 14 12 11 180 23 22 22 7 10° E12Q-SCLCR 06-14A-2/3 120 E16X-SCLC& 09-18A 18 16 15 220 28 27 27 9 SB-4065TR FT-15 E16X-SCLCR 09-18A-2/3 145 E20S-SCLC& 09-22A 22 20 19 250 32 31 31 11 8° E20S-SCLCR 09-22A-2/3 165 E25T-SCLC& 09-27A 27 25 24 300 38 37 37 13.5 6° E25T-SCLCR 09-27A-2/3 200 Applicable Inserts Applications Minute ap Finishing Finishing Finishing Finishing-Medium Finishing-Medium Medium Finishing-Medium Finishing Finishing / Precision See Page B53 B53 B54 B54 B54 B54 B54, B55 B53, B54 B56 B55 Insert Toolholder Description\ CF <0> GF WP(Wiper) o PP GK HQ jA Standard < GQ &-F &-FSF ...-SCLC&03-.. CCGT0301.. - CCGT0301.. CCET0301.. ...-SCLC&04-.. CCGT0401.. - CCGT0401.. CCET0401.. ...-SCLC&06-.. - CCGT0602.. CCMT0602.. CCMT0602.. CCMT0602.. CCMT0602.. CCGT0602.. CCGT0602.. ...-SCLC&09-.. - CCGT09T3.. CCMT09T3.. CCMT09T3.. CCMT09T3.. CCMT09T3.. CCGT09T3.. CCMT09T3.. CCGT09T3.. Applications Low Feed Low Feed/Precision Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials See Page B57, B58 B57 B55 B59 B59 B59 C24 C14 Insert Toolholder Description Обозначение (E/F) /L-U f /l-usf MQ Without Chipbreaker Стружколом сменной пластины ❖ AH <0> A3 o PCD CBN ...-SCLC&03-.. - CCMW0301.. ...-SCLC&04-.. CCGW0401.. CCMW0401.. ...-SCLC&06-.. CCGT0602.. CCET0602.. - CCGW0602.. CCMT0602.. CCGW0602.. CCMW0602.. ...-SCLC&09-.. CCGT09T3.. CCET09T3.. CCMT09T3.. CCGW09T3.. CCGT09T3.. CCGT09T3.. CCMT09T3.. CCGW09T3.. CCMW09T3.. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO F96 F97 Applicable SleevesO F85 F88 : Std. Item Стандартная позиция F41 Boring
