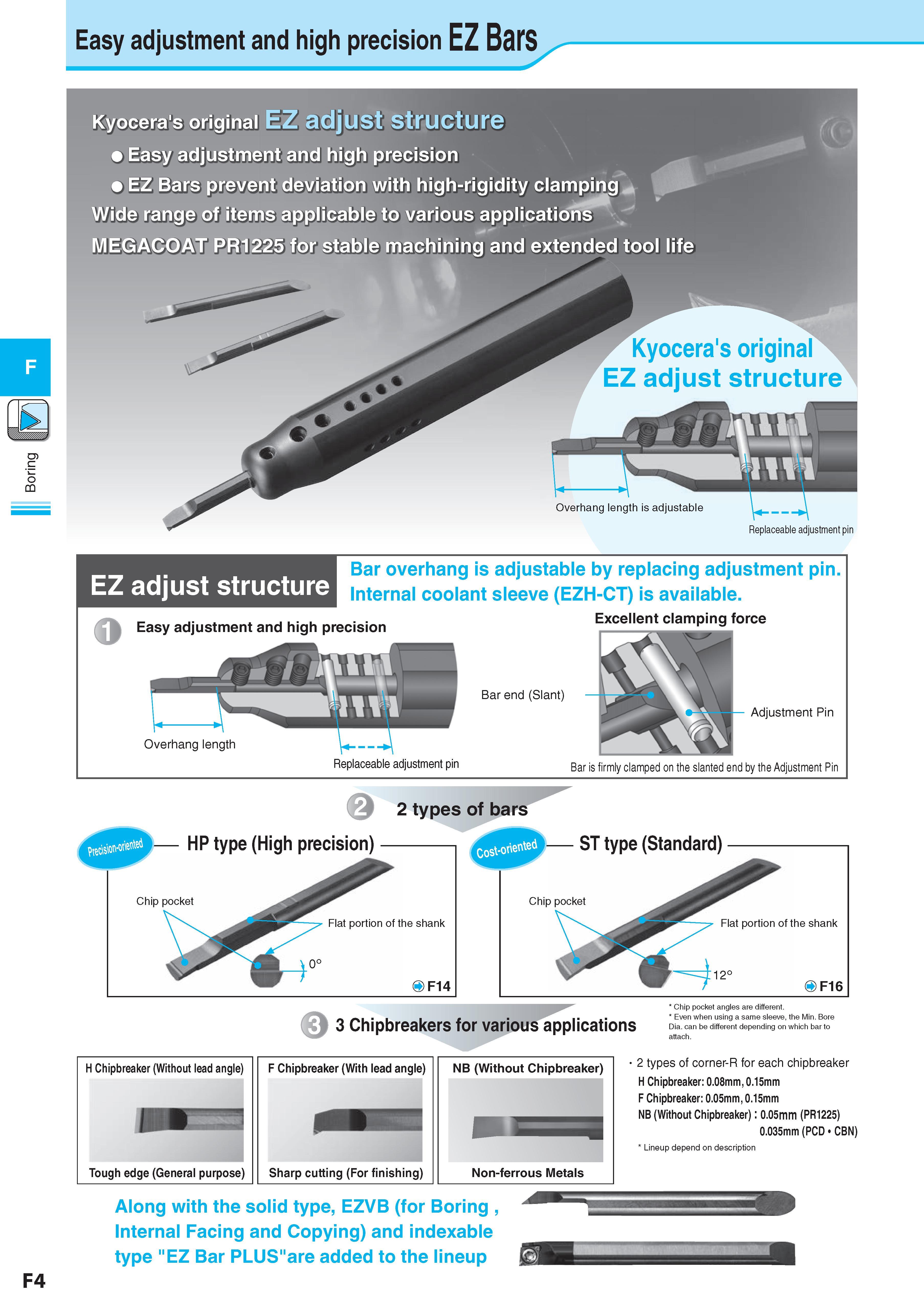

W//////////M Boring Easy adjustment and high precision EZ Bars Replaceable adjustment pin EZ adjust structure Easy adjustment and high precision Bar overhang is adjustable by replacing adjustment pin. Internal coolant sleeve (EZH-CT) is available. Excellent clamping force Bar end (Slant) Overhang length Adjustment Pin Replaceable adjustment pin Bar is firmly clamped on the slanted end by the Adjustment Pin 2 types of bars HP type (High precision) - ST type (Standard) Chip pocket Flat portion of the shank ) F14 Chip pocket Flat portion of the shank ) F16 3 Chipbreakers for various applications H Chipbreaker Стружколом сменной пластины (Without lead angle) Tough edge (General purpose) F Chipbreaker Стружколом сменной пластины (With lead angle) Sharp cutting (For finishing) NB (Without Chipbreaker Стружколом сменной пластины Non-ferrous Metals Chip pocket angles are different. Even when using a same sleeve, the Min. Bore Dia. can be different depending on which bar to attach. 2 types of corner-R for each chipbreaker H Chipbreaker: 0.08mm, 0.15mm F Chipbreaker: 0.05mm, 0.15mm NB (Without Chipbreaker): 0.05mm (PR1225) 0.035mm (PCD CBN) Lineup depend on description Along with the solid type, EZVB (for Boring , Internal Facing and Copying) and indexable type 11 EZ Bar PLUSMare added to the lineup F4
