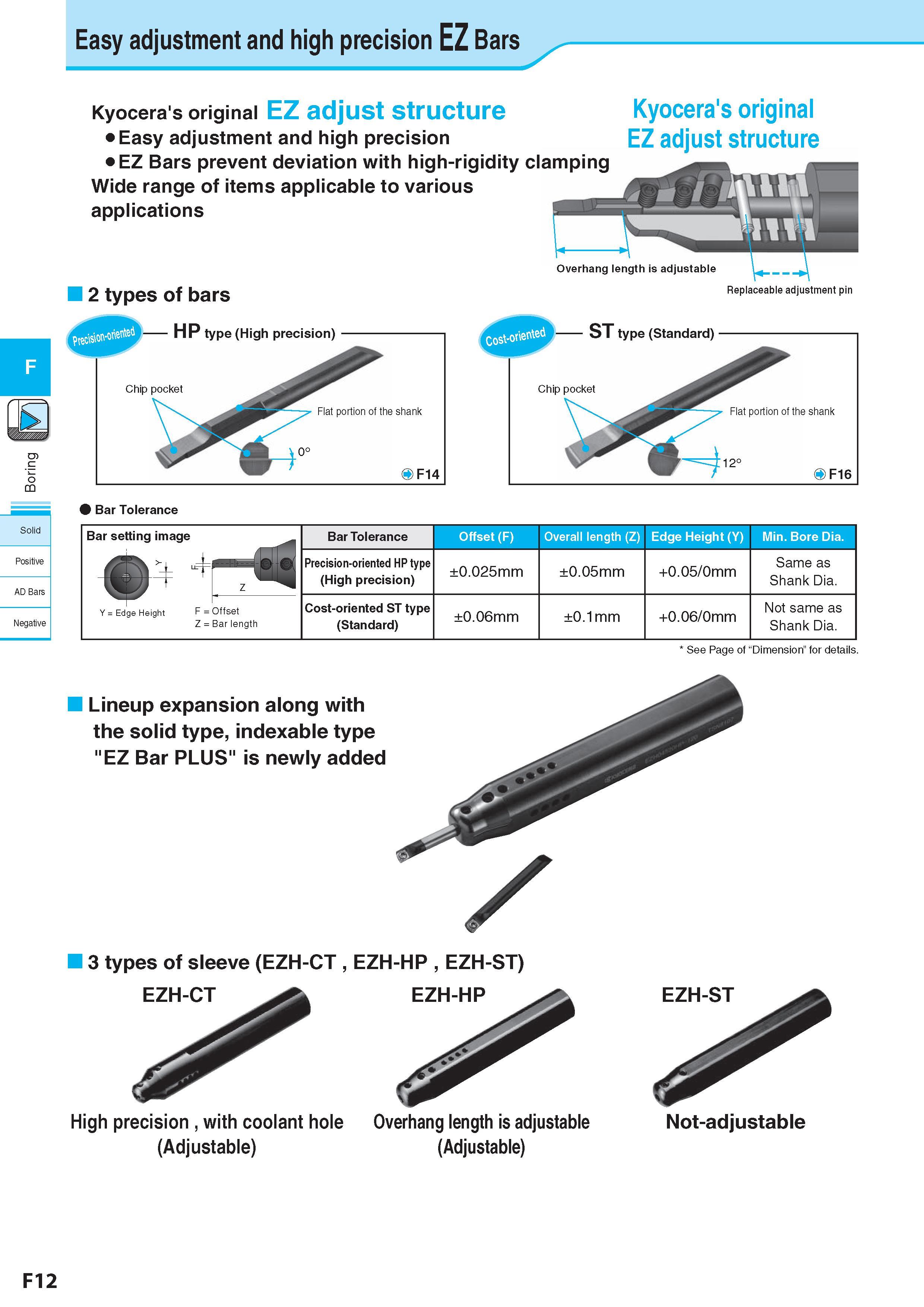

Easy adjustment and high precision EZ Bars c o CQ Solid Positive AD Bars Negative Kyocera's original EZ adjust structure Easy adjustment and high precision EZ Bars prevent deviation with high-rigidity Wide range of items applicable to various applications Overhang length is adjustable Replaceable adjustment pin ST type (Standard) Chip pocket Flat portion of the shank clamping Kyocera's original EZ adjust structure 2 types of bars HP type (High precision) Chip pocket Flat portion of the shank OF14 Bar Tolerance Bar setting image Bar Tolerance Offset (F) Overall length (Z) Edge Height (Y) Min. Bore Dia. . , „ (LIL-J Precision-oriented HP type (High precision) Same as Shank Dia. ife 4 -a ±0.025mm ±0.05mm +0.05/0mm Y = Edge Height F -Z - Offset Bar length Cost-oriented ST type (Standard) ±0.06mm ±0.1mm +0.06/0mm Not same as Shank Dia. See Page of “Dimension” for details. Lineup expansion along with the solid type, indexable type "EZ Bar PLUS" is newly added 3 types of sleeve (EZH-CT , EZH-HP , EZH-ST) EZH-HP High precision , with coolant hole Overhang length is adjustable (Adjustable) (Adjustable) Not-adjustable F12
