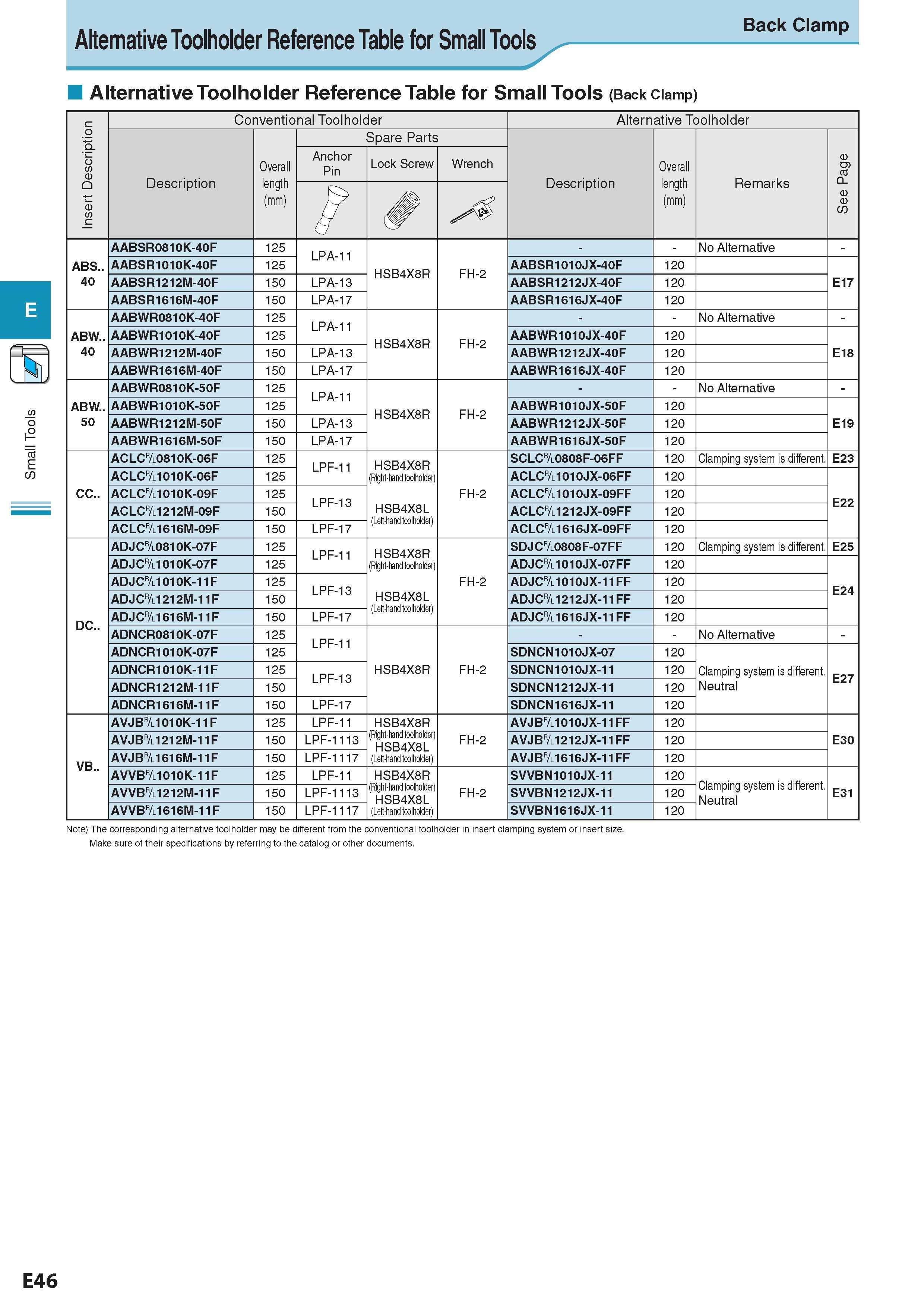

Small Tools Alternative Toolholder Reference Table for Small Tools Back Clamp Alternative Toolholder Reference Table for Small Tools (Back Clamp) E Insert Description Обозначение Conventional Toolholder Alternative Toolholder Description Обозначение Overall length (mm) Spare Parts Description Обозначение Overall length (mm) Remarks Примечания See Page Anchor Pin Lock Screw Wrench c ABS.. 40 AABSR0810K-40F 125 LPA-11 HSB4X8R FH-2 No Alternative - AABSR1010K-40F 125 AABSR1010JX-40F 120 E17 AABSR1212M-40F 150 LPA-13 AABSR1212JX-40F 120 AABSR1616M-40F 150 LPA-17 AABSR1616JX-40F 120 ABW.. 40 AABWR0810K-40F 125 LPA-11 HSB4X8R FH-2 No Alternative - AABWR1010K-40F 125 AABWR1010JX-40F 120 E18 AABWR1212M-40F 150 LPA-13 AABWR1212JX-40F 120 AABWR1616M-40F 150 LPA-17 AABWR1616JX-40F 120 ABW.. 50 AABWR0810K-50F 125 LPA-11 HSB4X8R FH-2 No Alternative - AABWR1010K-50F 125 AABWR1010JX-50F 120 E19 AABWR1212M-50F 150 LPA-13 AABWR1212JX-50F 120 AABWR1616M-50F 150 LPA-17 AABWR1616JX-50F 120 CC.. ACLC&0810K-06F 125 LPF-11 HSB4X8R (Right-hand toolholder) HSB4X8L (Left-hand toolholder) FH-2 SCLC&0808F-06FF 120 Clamping system is different. E23 ACLC&1010K-06F 125 ACLC&1010JX-06FF 120 E22 ACLC&1010K-09F 125 LPF-13 ACLC&1010JX-09FF 120 ACLC&1212M-09F 150 ACLC&1212JX-09FF 120 ACLC&1616M-09F 150 LPF-17 ACLC&1616JX-09FF 120 DC.. ADJC&0810K-07F 125 LPF-11 HSB4X8R (Right-hand toolholder) HSB4X8L (Left-hand toolholder) FH-2 SDJC&0808F-07FF 120 Clamping system is different. E25 ADJC&1010K-07F 125 ADJC&1010JX-07FF 120 E24 ADJC&1010K-11F 125 LPF-13 ADJC&1010JX-11FF 120 ADJC&1212M-11F 150 ADJC&1212JX-11FF 120 ADJC&1616M-11F 150 LPF-17 ADJC&1616JX-11FF 120 ADNCR0810K-07F 125 LPF-11 HSB4X8R FH-2 No Alternative - ADNCR1010K-07F 125 SDNCN1010JX-07 120 Clamping system is different. Neutral E27 ADNCR1010K-11F 125 LPF-13 SDNCN1010JX-11 120 ADNCR1212M-11F 150 SDNCN1212JX-11 120 ADNCR1616M-11F 150 LPF-17 SDNCN1616JX-11 120 VB.. AVJB&1010K-11F 125 LPF-11 HSB4X8R (Right-hand toolholder) HSB4X8L (Left-hand toolholder) FH-2 AVJB&1010JX-11FF 120 E30 AVJB&1212M-11F 150 LPF-1113 AVJB&1212JX-11FF 120 AVJB&1616M-11F 150 LPF-1117 AVJB&1616JX-11FF 120 AVVB&1010K-11F 125 LPF-11 HSB4X8R (Right-hand toolholder) HSB4X8L (Left-hand toolholder) FH-2 SVVBN1010JX-11 120 Clamping system is different. Neutral E31 AVVB&1212M-11F 150 LPF-1113 SVVBN1212JX-11 120 AVVB&1616M-11F 150 LPF-1117 SVVBN1616JX-11 120 Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. E46
