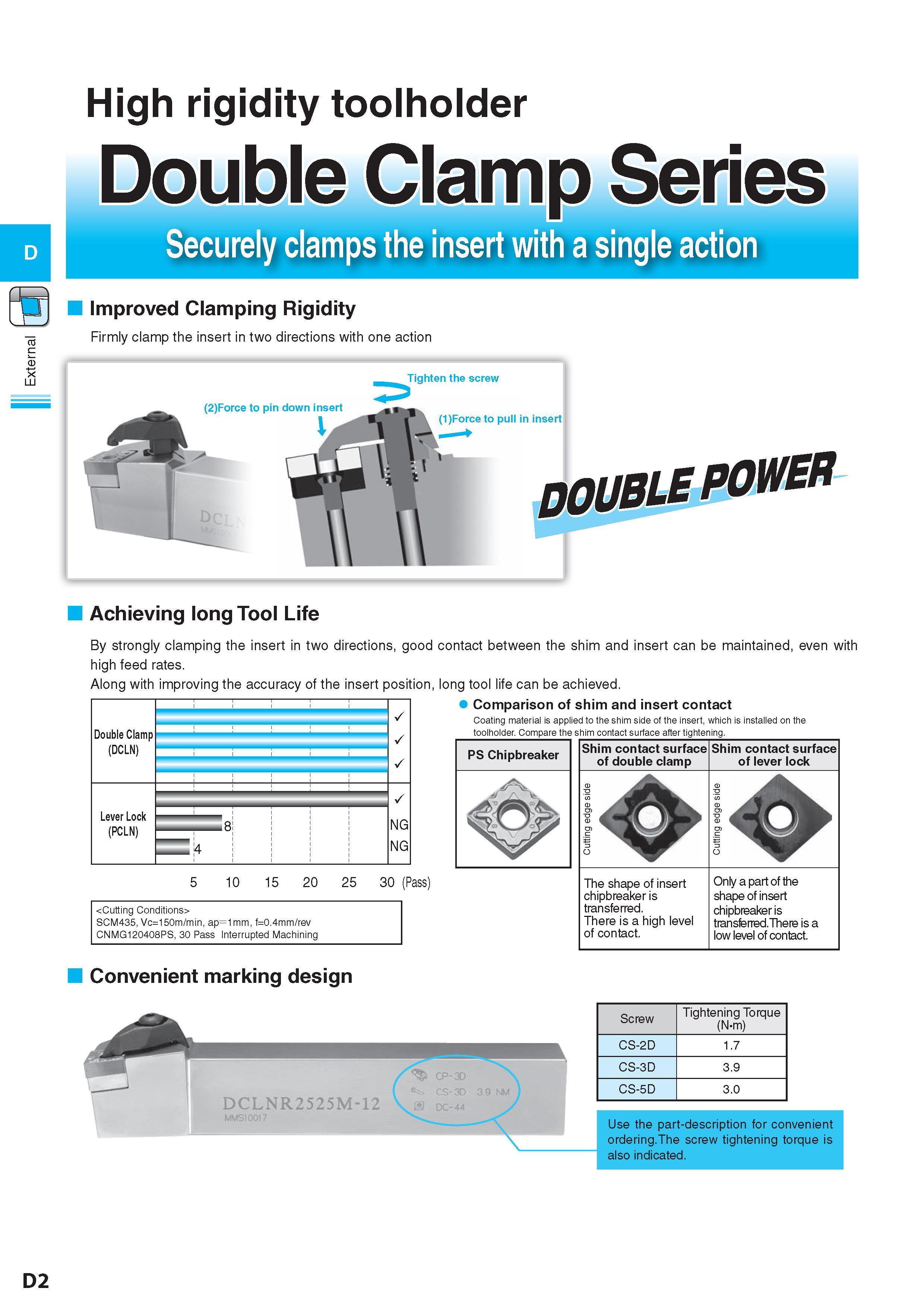

E External High rigidity toolholder Double Clamp Securely clamps the insert with a single action Improved Clamping Rigidity Firmly clamp the insert in two directions with one action (2)Force to pin down insert Tighten the screw \ (1)Force to pull in insert DOUBLE POWEH Achieving long Tool Life By strongly clamping the insert in two directions, good contact between the shim and insert can be maintained, even with high feed rates. Along with improving the accuracy of the insert position, long tool life can be achieved. Comparison of shim and insert contact Coating material is applied to the shim side of the insert, which is installed on the Double Clamp (DCLN) Lever Lock (PCLN) ✓ NG NG toolholder. Compare the shim contact surface after tightening. PS Chipbreaker Стружколом сменной пластины 5 10 15 20 25 30 (Pass) SCM435, Vc=150m/min, ap=1mm, f=0.4mm/rev CNMG120408PS, 30 Pass Interrupted Machining Shim contact surface of double clamp Shim contact surface of lever lock Cutting edge side Cutting edge side <5 The shape of insert chipbreaker is transferred. There is a high level of contact. Only a part of the shape of insert chipbreaker is transferred.There is a low level of contact. Convenient marking design Screw Tightening Torque (N-m) CS-2D 1.7 CS-3D 3.9 CS-5D 3.0 Use the part-description for convenient ordering.The screw tightening torque is also indicated. 8 4 D2
