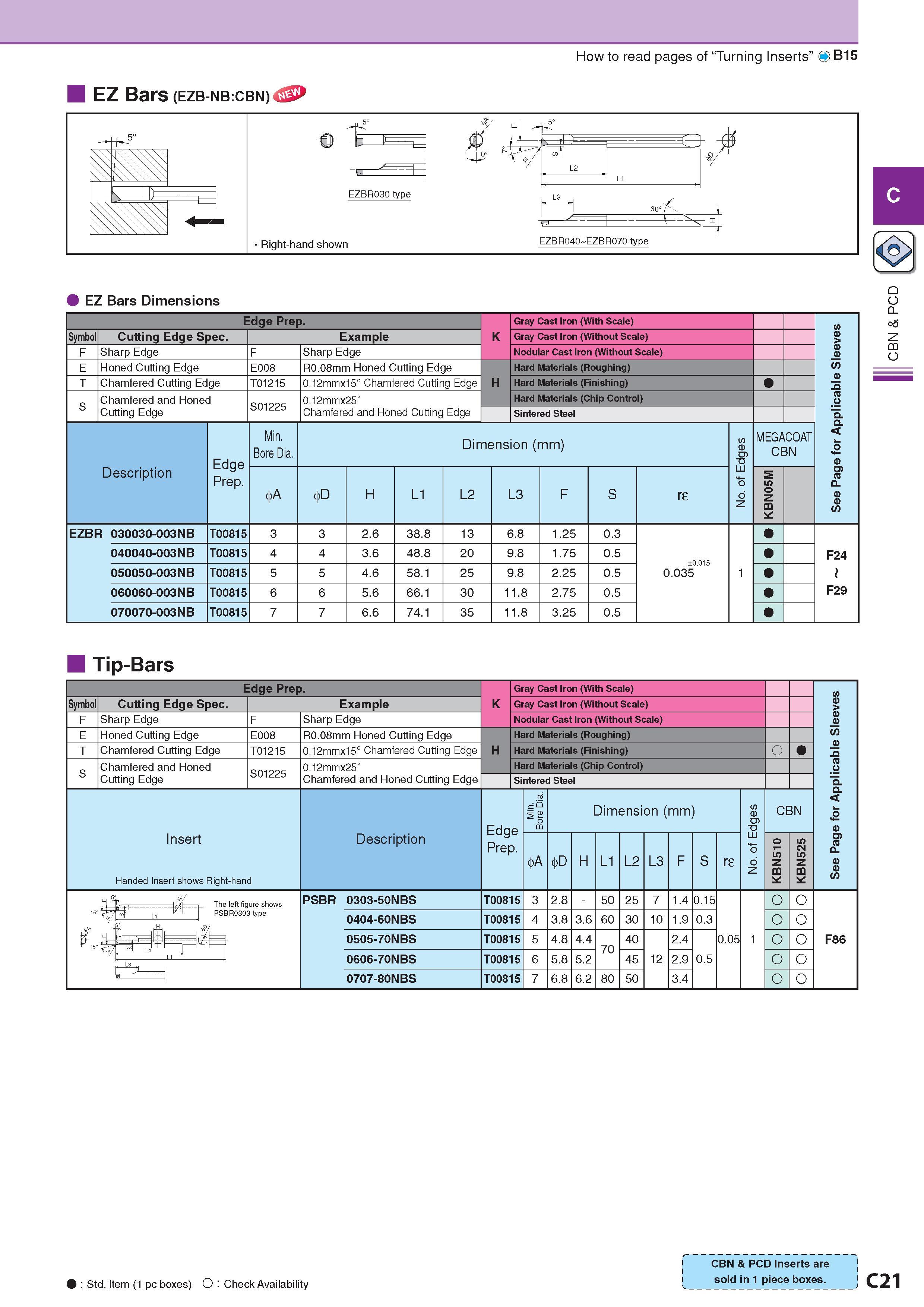

How to read pages of “Turning Inserts” O B15 EZ Bars (ezb-nb:cbn)4SSJ> EZBR030 type Показано правое исполнение инструмента EZ Bars Dimensions Edge Prep. Gray Cast Iron (With Scale) Symbol Cutting Edge Spec. Example K Gray Cast Iron (Without Scale) See Page for Applicable Sleeves F Sharp Edge F Sharp Edge Nodular Cast Iron (Without Scale) E Honed Cutting Edge E008 R0.08mm Honed Cutting Edge Hard Materials (Roughing) T Chamfered Cutting Edge T01215 0.12mmx15° Chamfered Cutting Edge H Hard Materials (Finishing) S Chamfered and Honed S01225 0.12mmx25' Hard Materials (Chip Control) Cutting Edge Chamfered and Honed Cutting Edge Sintered Steel Edge Prep. Min. Bore Dia. Dimension (mm) Размеры в мм No. of Edges MEGACOAT CBN Description Обозначение < A D H L1 L2 L3 F S re KBN05M EZBR 030030-003NB T00815 3 3 2.6 38.8 13 6.8 1.25 0.3 040040-003NB T00815 4 4 3.6 48.8 20 9.8 1.75 0.5 ±0.015 0.035 F24 050050-003NB T00815 5 5 4.6 58.1 25 9.8 2.25 0.5 1 I 060060-003NB T00815 6 6 5.6 66.1 30 11.8 2.75 0.5 F29 070070-003NB T00815 7 7 6.6 74.1 35 11.8 3.25 0.5 C o o Q oa m o Tip-Bars Edge Prep. K Gray Cast Iron (With Scale) See Page for Applicable Sleeves Symbol Cutting Edge Spec. Example Gray Cast Iron (Without Scale) F Sharp Edge F Sharp Edge Nodular Cast Iron (Without Scale) E Honed Cutting Edge E008 R0.08mm Honed Cutting Edge H Hard Materials (Roughing) T Chamfered Cutting Edge T01215 0.12mmx15° Chamfered Cutting Edge Hard Materials (Finishing) O S Chamfered and Honed Cutting Edge S01225 0.12mmx25' Chamfered and Honed Cutting Edge Hard Materials (Chip Control) Sintered Steel Insert Handed Insert shows Right-hand Description Обозначение Edge Prep. Min. Bore Dia. Dimension (mm) Размеры в мм No. of Edges CBN < A < D H L1 L2 L3 F S re 0 1 5 z B K 5 2 5 z B K 15 I T ,n 1 Theleft Sg ure shows 3 type PSBR 0303-50NBS T00815 3 2.8 - 50 25 7 1.4 0.15 0.05 1 F86 Vt7 >l L1 PSBR030 0404-60NBS T00815 4 3.8 3.6 60 30 10 1.9 0.3 0505-70NBS T00815 5 4.8 4.4 70 40 12 2.4 0.5 L3 0606-70NBS T00815 6 5.8 5.2 45 2.9 0707-80NBS T00815 7 6.8 6.2 80 50 3.4 : Std. Item Стандартная позиция (1 pc boxes) O : Check Availability CBN & PCD Inserts are sold in 1 piece boxes. J C21
