90 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.B61

Каталог KYOCERA 2017 Инструмент режущий Стр. B61 0090 Lab2u

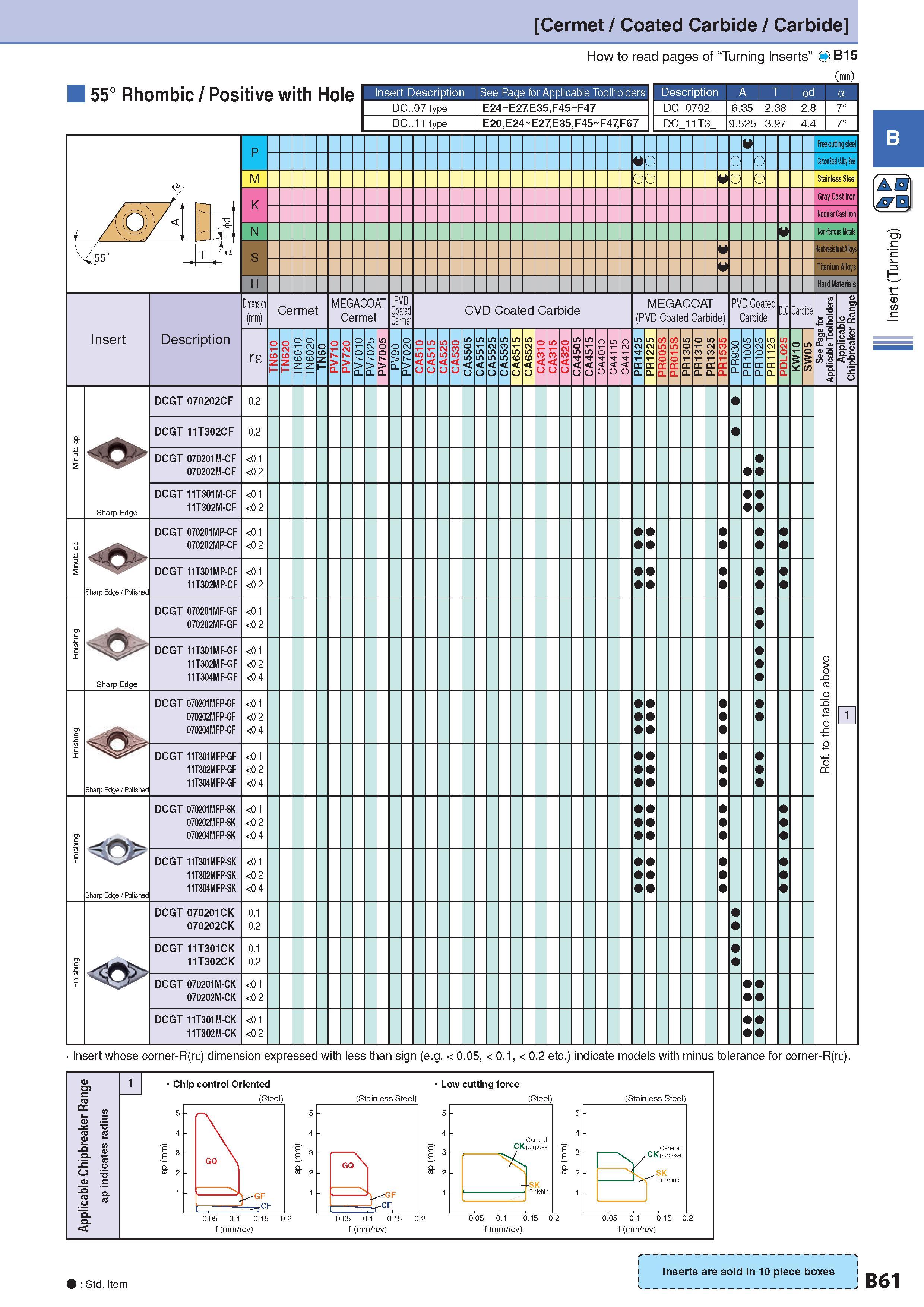

Cermet / Coated Carbide / Carbide 55° Rhombic / Positive with Hole How to read pages of “Turning Inserts” O B15 ( ) Insert Description Обозначение See Page for Applicable Toolholders I Description Обозначение A T DC..07 type DC..11 type E24 E27,E35,F45 F47 E20,E24 E27,E35,F45 F47,F67 DC 0702 DC 11T3 6.35 9.525 2.38 3.97 M Free-cutting steel Carbon Steel /Alloy Steel Stainless Steel Gray Cast Iron Nodular Cast Iron Non-fenous Metals Heat-iesistart Alloys Titanium Alloys Hard Materials Insert Dimension (mm) Размеры в мм Cermet MEGACOAT Cermet PVD Coated Cermet CVD Coated Carbide MEGACOAT (PVD Coated Carbide) PVD Coated Caibide DLC Carbide Description Обозначение r e e s Sharp Edge / Polished DCGT 070202CF 0.2 Sharp Edge DCGT 11T302CF 0.2 DCGT 070201M-CF 070202M-CF <0.1 <0.2 DCGT 11T301M-CF 11T302M-CF <0.1 <0.2 DCGT 070201MP-CF 070202MP-CF <0.1 <0.2 DCGT 11T301MP-CF 11T302MP-CF <0.1 <0.2 DCGT 070201MF-GF 070202MF-GF <0.1 <0.2 DCGT 11T301MF-GF 11T302MF-GF 11T304MF-GF <0.1 <0.2 <0.4 DCGT 070201MFP-GF 070202MFP-GF 070204MFP-GF <0.1 <0.2 <0.4 Sharp Edge / Polished DCGT 11T301MFP-GF 11T302MFP-GF 11T304MFP-GF <0.1 <0.2 <0.4 Sharp Edge / Polished DCGT 070201MFP-SK 070202MFP-SK 070204MFP-SK <0.1 <0.2 <0.4 DCGT 11T301MFP-SK 11T302MFP-SK 11T304MFP-SK <0.1 <0.2 <0.4 DCGT 070201CK 070202CK DCGT 11T301CK 11T302CK DCGT 070201M-CK 070202M-CK <0.1 <0.2 DCGT 11T301M-CK 11T302M-CK <0.1 <0.2 Insert whose corner-R(rs) dimension expressed with less than sign (e.g. < 0.05, < 0.1, < 0.2 etc.) indicate models with minus tolerance for corner-R(rs). P H Sharp Edge (0 -C o o -S Chip control Oriented (Steel) Low cutting force (Stainless Steel) (Steel) f (mm/rev) 0.05 0.1 0.15 0.2 f (mm/rev) : Std. Item Стандартная позиция Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes B61
