140 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.B111

Каталог KYOCERA 2017 Инструмент режущий Стр. B111 0140 Lab2u

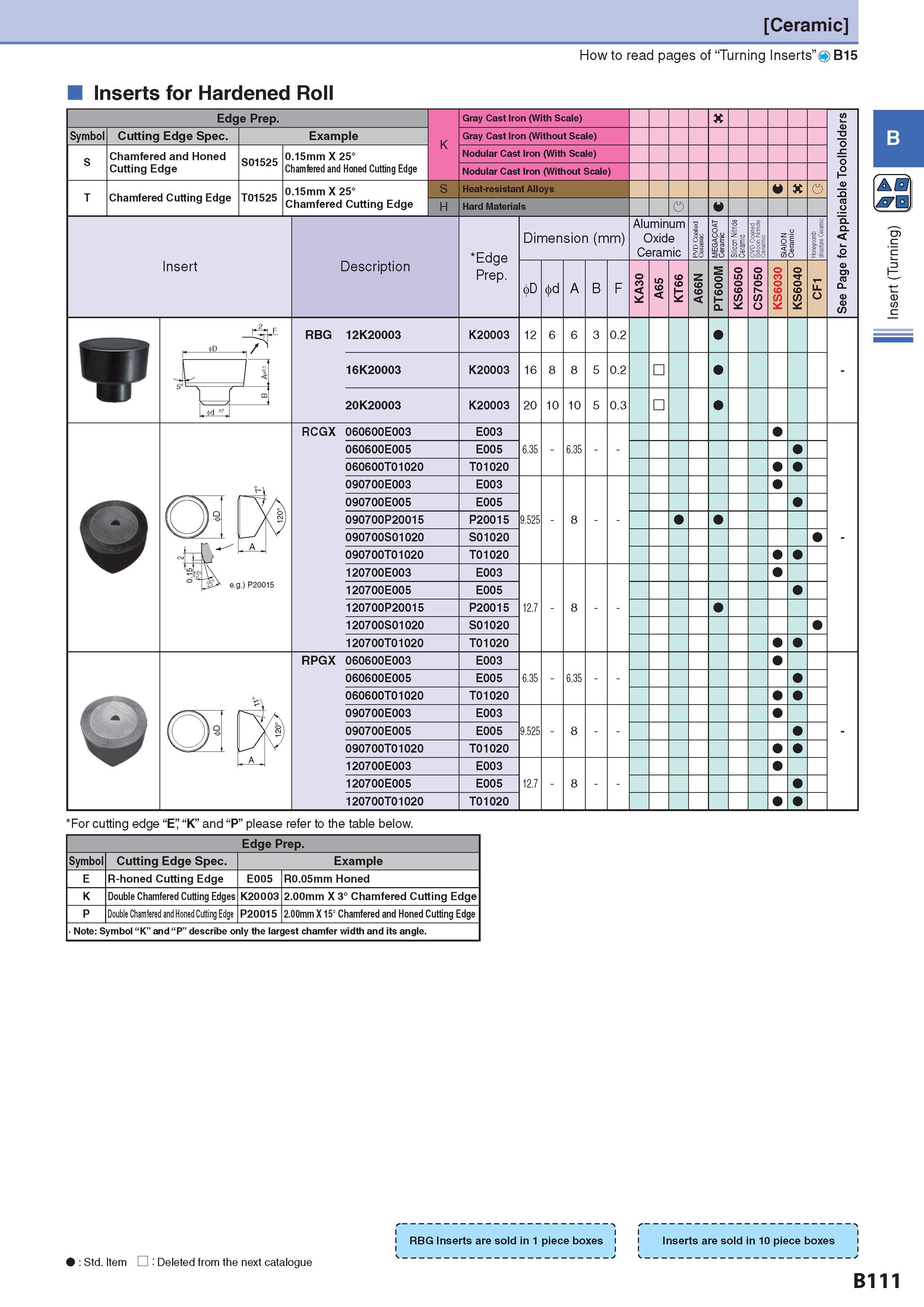

Ceramic How to read pages of “Turning Inserts” O B15 Inserts for Hardened Roll Edge Prep. Symbol Cutting Edge Spec. S Chamfered and Honed Cutting Edge Example S01525 0.15mm X 25° Chamfered and Honed Cutting Edge Gray Cast Iron (With Scale) Gray Cast Iron (Without Scale) Nodular Cast Iron (With Scale) Nodular Cast Iron (Without Scale) T T3 O .Q CD O "il CL < TO <0 Q 0) (f) Chamfered Cutting Edge T01525 0.15mm X 25° Chamfered Cutting Edge Heat-resistant Alloys Q T Hard Materials Q Insert Description Обозначение Edge Prep. Dimension (mm) Размеры в мм Aluminum Oxide Ceramic A C w RBG 12K20003 K20003 12 0.2 16K20003 K20003 16 0.2 20K20003 K20003 20 10 10 0.3 RCGX 060600E003 E003 060600E005 E005 6.35 6.35 060600T01020 T01020 090700E003 E003 090700E005 E005 090700P20015 P20015 9.525 090700S01020 S01020 090700T01020 T01020 120700E003 E003 e.g.) P20015 120700E005 E005 120700P20015 P20015 12.7 120700S01020 S01020 120700T01020 T01020 RPGX 060600E003 E003 060600E005 E005 6.35 6.35 060600T01020 T01020 090700E003 E003 090700E005 E005 9.525 090700T01020 T01020 120700E003 E003 120700E005 E005 12.7 120700T01020 T01020 B K T B F 6 6 3 8 8 5 5 8 8 8 8 For cutting edge “E” “K” and “P” please refer to the table below. Edge Prep. Symbol Cutting Edge Spec. Example E R-honed Cutting Edge E005 R0.05mm Honed K Double Chamfered Cutting Edges K20003 2.00mm X 3° Chamfered Cutting Edge P Double Chamfered and Honed Cutting Edge P20015 2.00mm X 15° Chamfered and Honed Cutting Edge Note: Symbol “K” and “P” describe only the largest chamfer width and its angle. RBG Inserts are sold in 1 piece boxes i : Std. Item Стандартная позиция : Deleted from the next catalogue Указанная позиция будет удалена в следующем каталоге Пластины продаются упаковками по 10 шт. Inserts are sold in 10 piece boxes B111 Insert (Turning)
