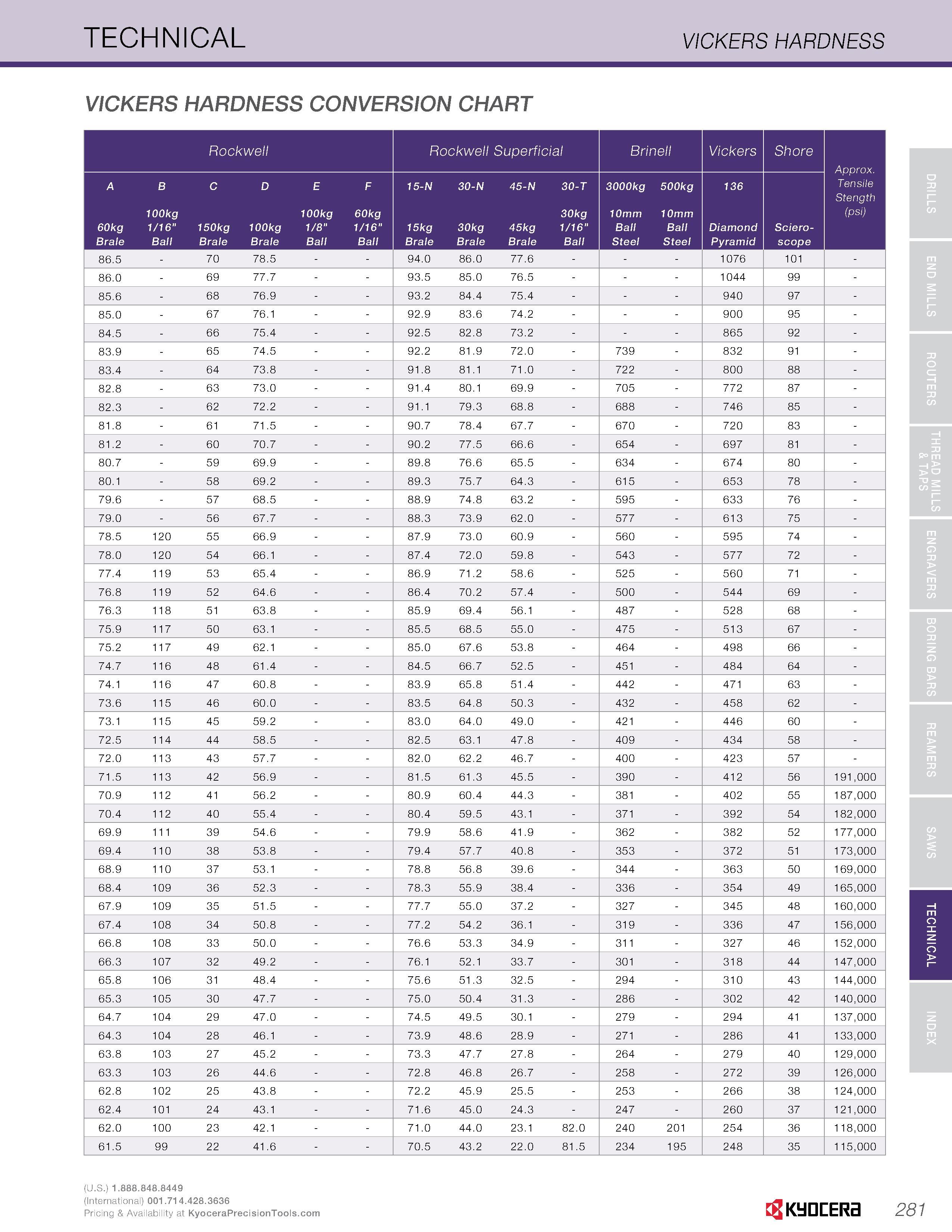

TECHNICAL VICKERS HARDNESS VICKERS HARDNESS CONVERSION CHART Rockwell RockwellSuperficial Brinell Vickers Shore A B C D E F 15-N 30-N 45-N 30-T 3000kg 500kg 136 Tensile 60kg Brale 100kg 1/16" Ball 150kg Brale 100kg Brale 100kg 1/8" Ball 60kg 1/16" Ball 15 kg Brale 30kg Brale 45kg Brale 30kg 1/16" Ball 10mm Ball Steel 10mm Ball Steel Diamond Pyramid Sciero- scope (psi) 86.5 70 78.5 - 94.0 86.0 77.6 - - 1076 101 - 86.0 69 77.7 - 93.5 85.0 76.5 - - 1044 99 - 85.6 68 76.9 - 93.2 84.4 75.4 - - 940 97 - 85.0 67 76.1 - 92.9 83.6 74.2 - - 900 95 - 84.5 66 75.4 - 92.5 82.8 73.2 - - 865 92 - 83.9 65 74.5 - 92.2 81.9 72.0 739 - 832 91 - 83.4 64 73.8 - 91.8 81.1 71.0 722 - 800 88 - 82.8 63 73.0 - 91.4 80.1 69.9 705 - 772 87 - 82.3 62 72.2 - 91.1 79.3 68.8 688 - 746 85 - 81.8 61 71.5 - 90.7 78.4 67.7 670 - 720 83 - 81.2 60 70.7 - 90.2 77.5 66.6 654 - 697 81 - 80.7 59 69.9 - 89.8 76.6 65.5 634 - 674 80 - 80.1 58 69.2 - 89.3 75.7 64.3 615 - 653 78 - 79.6 57 68.5 - 88.9 74.8 63.2 595 - 633 76 - 79.0 56 67.7 - 88.3 73.9 62.0 577 - 613 75 - 78.5 120 55 66.9 - 87.9 73.0 60.9 560 - 595 74 - 78.0 120 54 66.1 - 87.4 72.0 59.8 543 - 577 72 - 77.4 119 53 65.4 - 86.9 71.2 58.6 525 - 560 71 - 76.8 119 52 64.6 - 86.4 70.2 57.4 500 - 544 69 - 76.3 118 51 63.8 - 85.9 69.4 56.1 487 - 528 68 - 75.9 117 50 63.1 - 85.5 68.5 55.0 475 - 513 67 - 75.2 117 49 62.1 - 85.0 67.6 53.8 464 - 498 66 - 74.7 116 48 61.4 - 84.5 66.7 52.5 451 - 484 64 - 74.1 116 47 60.8 - 83.9 65.8 51.4 442 - 471 63 - 73.6 115 46 60.0 - 83.5 64.8 50.3 432 - 458 62 - 73.1 115 45 59.2 - 83.0 64.0 49.0 421 - 446 60 - 72.5 114 44 58.5 - 82.5 63.1 47.8 409 - 434 58 - 72.0 113 43 57.7 - 82.0 62.2 46.7 400 - 423 57 - 71.5 113 42 56.9 - 81.5 61.3 45.5 390 - 412 56 191,000 70.9 112 41 56.2 - 80.9 60.4 44.3 381 - 402 55 187,000 70.4 112 40 55.4 - 80.4 59.5 43.1 371 - 392 54 182,000 69.9 111 39 54.6 - 79.9 58.6 41.9 362 - 382 52 177,000 69.4 110 38 53.8 - 79.4 57.7 40.8 353 - 372 51 173,000 68.9 110 37 53.1 - 78.8 56.8 39.6 344 - 363 50 169,000 68.4 109 36 52.3 - 78.3 55.9 38.4 336 - 354 49 165,000 67.9 109 35 51.5 - 77.7 55.0 37.2 327 - 345 48 160,000 67.4 108 34 50.8 - 77.2 54.2 36.1 319 - 336 47 156,000 66.8 108 33 50.0 - 76.6 53.3 34.9 311 - 327 46 152,000 66.3 107 32 49.2 - 76.1 52.1 33.7 301 - 318 44 147,000 65.8 106 31 48.4 - 75.6 51.3 32.5 294 - 310 43 144,000 65.3 105 30 47.7 - 75.0 50.4 31.3 286 - 302 42 140,000 64.7 104 29 47.0 - 74.5 49.5 30.1 279 - 294 41 137,000 64.3 104 28 46.1 - - 73.9 48.6 28.9 - 271 - 286 41 133,000 63.8 103 27 45.2 - - 73.3 47.7 27.8 - 264 - 279 40 129,000 63.3 103 26 44.6 - - 72.8 46.8 26.7 - 258 - 272 39 126,000 62.8 102 25 43.8 - - 72.2 45.9 25.5 - 253 - 266 38 124,000 62.4 101 24 43.1 - - 71.6 45.0 24.3 - 247 - 260 37 121,000 62.0 100 23 42.1 - - 71.0 44.0 23.1 82.0 240 201 254 36 118,000 61.5 99 22 41.6 - - 70.5 43.2 22.0 81.5 234 195 248 35 115,000 Kyocera 281
