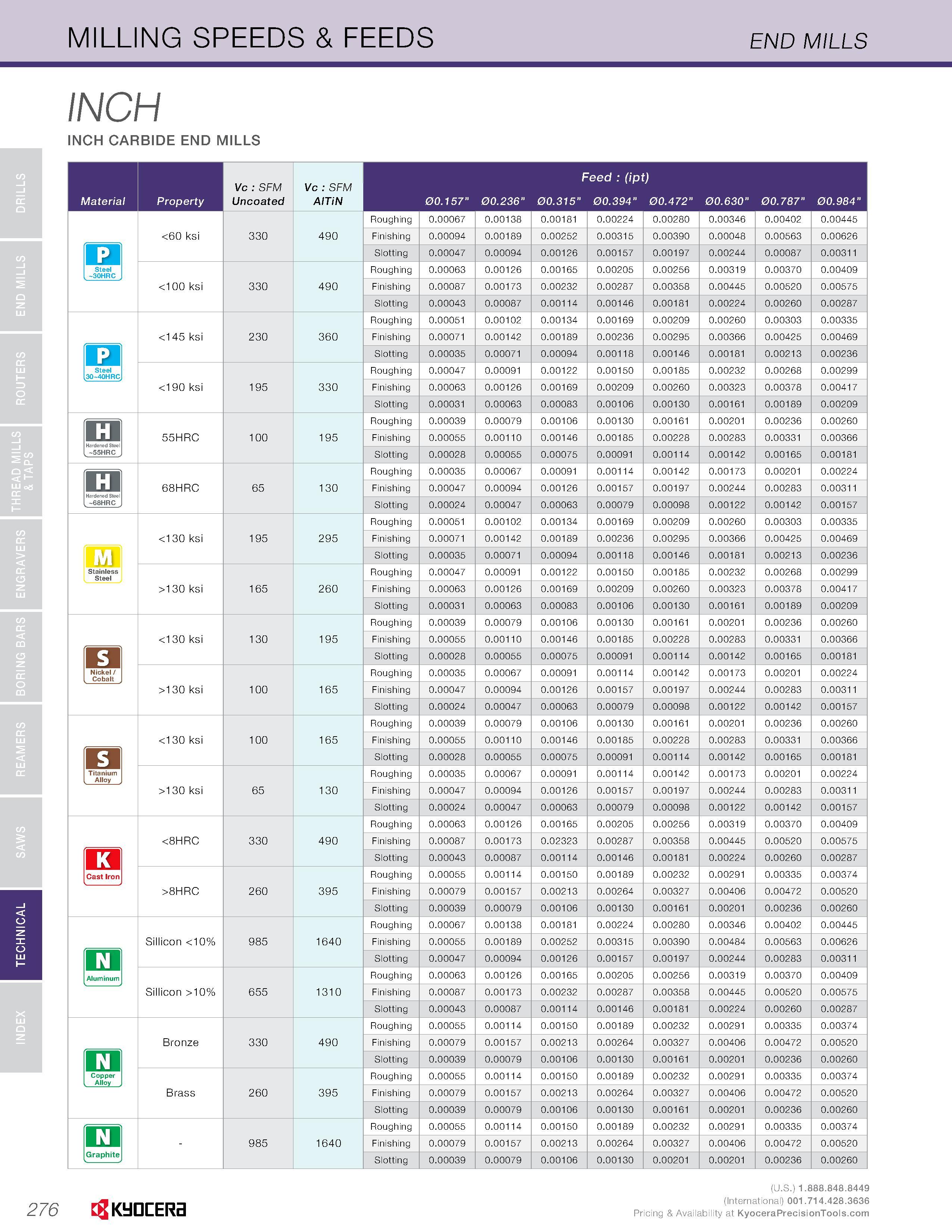

278 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.276

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 276 0278 ENG Lab2u

TECHNICAL MILLING SPEEDS & FEEDS END MILLS INCH INCH CARBIDE END MILLS Material Property Vc SFM Uncoated Vc SFM AITiN 00.157" 00.236" Feed (7p1 00.315" 00.394" ) 00.472" 00.630" 00.787" 00.984" <60 ksi 330 490 Roughing 0.00067 0.00138 0.00181 0.00224 0.00280 0.00346 0.00402 0.00445 Finishing 0.00094 0.00189 0.00252 0.00315 0.00390 0.00048 0.00563 0.00626 D Steel Slotting 0.00047 0.00094 0.00126 0.00157 0.00197 0.00244 0.00087 0.00311 <100 ksi 330 490 Roughing 0.00063 0.00126 0.00165 0.00205 0.00256 0.00319 0.00370 0.00409 Finishing 0.00087 0.00173 0.00232 0.00287 0.00358 0.00445 0.00520 0.00575 Slotting 0.00043 0.00087 0.00114 0.00146 0.00181 0.00224 0.00260 0.00287 <145 ksi 230 360 Roughing 0.00051 0.00102 0.00134 0.00169 0.00209 0.00260 0.00303 0.00335 Finishing 0.00071 0.00142 0.00189 0.00236 0.00295 0.00366 0.00425 0.00469 D Steel Slotting 0.00035 0.00071 0.00094 0.00118 0.00146 0.00181 0.00213 0.00236 <190 ksi 195 330 Roughing 0.00047 0.00091 0.00122 0.00150 0.00185 0.00232 0.00268 0.00299 Finishing 0.00063 0.00126 0.00169 0.00209 0.00260 0.00323 0.00378 0.00417 Slotting 0.00031 0.00063 0.00083 0.00106 0.00130 0.00161 0.00189 0.00209 m Hardened Steel -55HRC 55HRC 100 195 Roughing 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 Finishing 0.00055 0.00110 0.00146 0.00185 0.00228 0.00283 0.00331 0.00366 Slotting 0.00028 0.00055 0.00075 0.00091 0.00114 0.00142 0.00165 0.00181 m Hardened Steel -68HRC 68HRC 65 130 Roughing 0.00035 0.00067 0.00091 0.00114 0.00142 0.00173 0.00201 0.00224 Finishing 0.00047 0.00094 0.00126 0.00157 0.00197 0.00244 0.00283 0.00311 Slotting 0.00024 0.00047 0.00063 0.00079 0.00098 0.00122 0.00142 0.00157 <130 ksi 195 295 Roughing 0.00051 0.00102 0.00134 0.00169 0.00209 0.00260 0.00303 0.00335 Finishing 0.00071 0.00142 0.00189 0.00236 0.00295 0.00366 0.00425 0.00469 JjJ Stainless Slotting 0.00035 0.00071 0.00094 0.00118 0.00146 0.00181 0.00213 0.00236 >130 ksi 165 260 Roughing 0.00047 0.00091 0.00122 0.00150 0.00185 0.00232 0.00268 0.00299 Finishing 0.00063 0.00126 0.00169 0.00209 0.00260 0.00323 0.00378 0.00417 Slotting 0.00031 0.00063 0.00083 0.00106 0.00130 0.00161 0.00189 0.00209 <130 ksi 130 195 Roughing 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 Finishing 0.00055 0.00110 0.00146 0.00185 0.00228 0.00283 0.00331 0.00366 s Slotting 0.00028 0.00055 0.00075 0.00091 0.00114 0.00142 0.00165 0.00181 Nickel / >130 ksi 100 165 Roughing 0.00035 0.00067 0.00091 0.00114 0.00142 0.00173 0.00201 0.00224 Finishing 0.00047 0.00094 0.00126 0.00157 0.00197 0.00244 0.00283 0.00311 Slotting 0.00024 0.00047 0.00063 0.00079 0.00098 0.00122 0.00142 0.00157 <130 ksi 100 165 Roughing 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 Finishing 0.00055 0.00110 0.00146 0.00185 0.00228 0.00283 0.00331 0.00366 s Slotting 0.00028 0.00055 0.00075 0.00091 0.00114 0.00142 0.00165 0.00181 Titanium >130 ksi 65 130 Roughing 0.00035 0.00067 0.00091 0.00114 0.00142 0.00173 0.00201 0.00224 Finishing 0.00047 0.00094 0.00126 0.00157 0.00197 0.00244 0.00283 0.00311 Slotting 0.00024 0.00047 0.00063 0.00079 0.00098 0.00122 0.00142 0.00157 <8HRC 330 490 Roughing 0.00063 0.00126 0.00165 0.00205 0.00256 0.00319 0.00370 0.00409 Finishing 0.00087 0.00173 0.02323 0.00287 0.00358 0.00445 0.00520 0.00575 Cast Iron Slotting 0.00043 0.00087 0.00114 0.00146 0.00181 0.00224 0.00260 0.00287 >8HRC 260 395 Roughing 0.00055 0.00114 0.00150 0.00189 0.00232 0.00291 0.00335 0.00374 Finishing 0.00079 0.00157 0.00213 0.00264 0.00327 0.00406 0.00472 0.00520 Slotting 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 Sillicon <10% 985 1640 Roughing 0.00067 0.00138 0.00181 0.00224 0.00280 0.00346 0.00402 0.00445 Finishing 0.00055 0.00189 0.00252 0.00315 0.00390 0.00484 0.00563 0.00626 o Aluminum Slotting 0.00047 0.00094 0.00126 0.00157 0.00197 0.00244 0.00283 0.00311 Sillicon >10% 655 1310 Roughing 0.00063 0.00126 0.00165 0.00205 0.00256 0.00319 0.00370 0.00409 Finishing 0.00087 0.00173 0.00232 0.00287 0.00358 0.00445 0.00520 0.00575 Slotting 0.00043 0.00087 0.00114 0.00146 0.00181 0.00224 0.00260 0.00287 Bronze 330 490 Roughing 0.00055 0.00114 0.00150 0.00189 0.00232 0.00291 0.00335 0.00374 Finishing 0.00079 0.00157 0.00213 0.00264 0.00327 0.00406 0.00472 0.00520 IaJ Copper Alloy Slotting 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 Brass 260 395 Roughing 0.00055 0.00114 0.00150 0.00189 0.00232 0.00291 0.00335 0.00374 Finishing 0.00079 0.00157 0.00213 0.00264 0.00327 0.00406 0.00472 0.00520 Slotting 0.00039 0.00079 0.00106 0.00130 0.00161 0.00201 0.00236 0.00260 o Graphite - -/ - 985 1640 Roughing 0.00055 0.00114 0.00150 0.00189 0.00232 0.00291 0.00335 0.00374 Finishing 0.00079 0.00157 0.00213 0.00264 0.00327 0.00406 0.00472 0.00520 Slotting 0.00039 0.00079 0.00106 0.00130 0.00201 0.00201 0.00236 0.00260 276 CgKyDCERa
