272 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.270

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 270 0272 ENG Lab2u

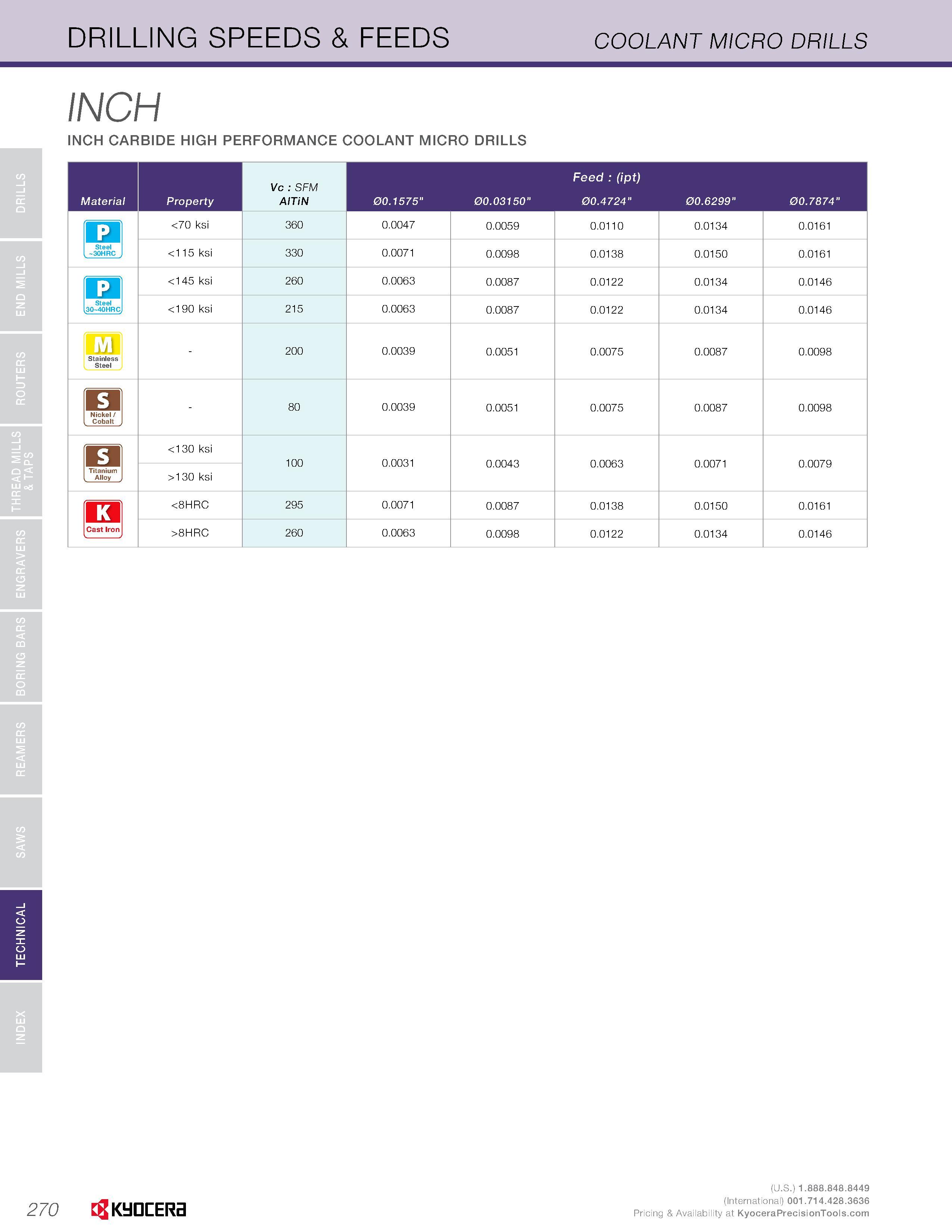

TECHNICAL DRILLING SPEEDS & FEEDS COOLANT MICRO DRILLS 270 INCH INCH CARBIDE HIGH PERFORMANCE COOLANT MICRO DRILLS Vc SFM Feed (ipt) Material Property AITiN 00.1575" 00.03150" 00.4724" 00.6299" 00.7874“ D <70 ksi 360 0.0047 0.0059 0.0110 0.0134 0.0161 Steel -30HRC <115 ksi 330 0.0071 0.0098 0.0138 0.0150 0.0161 D <145 ksi 260 0.0063 0.0087 0.0122 0.0134 0.0146 Steel 30-40HRC <190 ksi 215 0.0063 0.0087 0.0122 0.0134 0.0146 Stainless Steel - 200 0.0039 0.0051 0.0075 0.0087 0.0098 Nickel / Cobalt - 80 0.0039 0.0051 0.0075 0.0087 0.0098 <130 ksi 100 0.0031 0.0043 0.0063 0.0071 0.0079 Titanium Alloy >130 ksi <8HRC 295 0.0071 0.0087 0.0138 0.0150 0.0161 Cast Iron >8HRC 260 0.0063 0.0098 0.0122 0.0134 0.0146 (U.S.) wC.P l/unrcn (International) 001.714.428.3636 l\ZJULtl\d Pricing & Availability at
