238 Каталог KYOCERA 2016 Твердосплавный вращающийся режущий инструмент ENG Стр.236

Catalog KYOCERA 2016 Solid carbide cutting tools Стр. 236 0238 ENG Lab2u

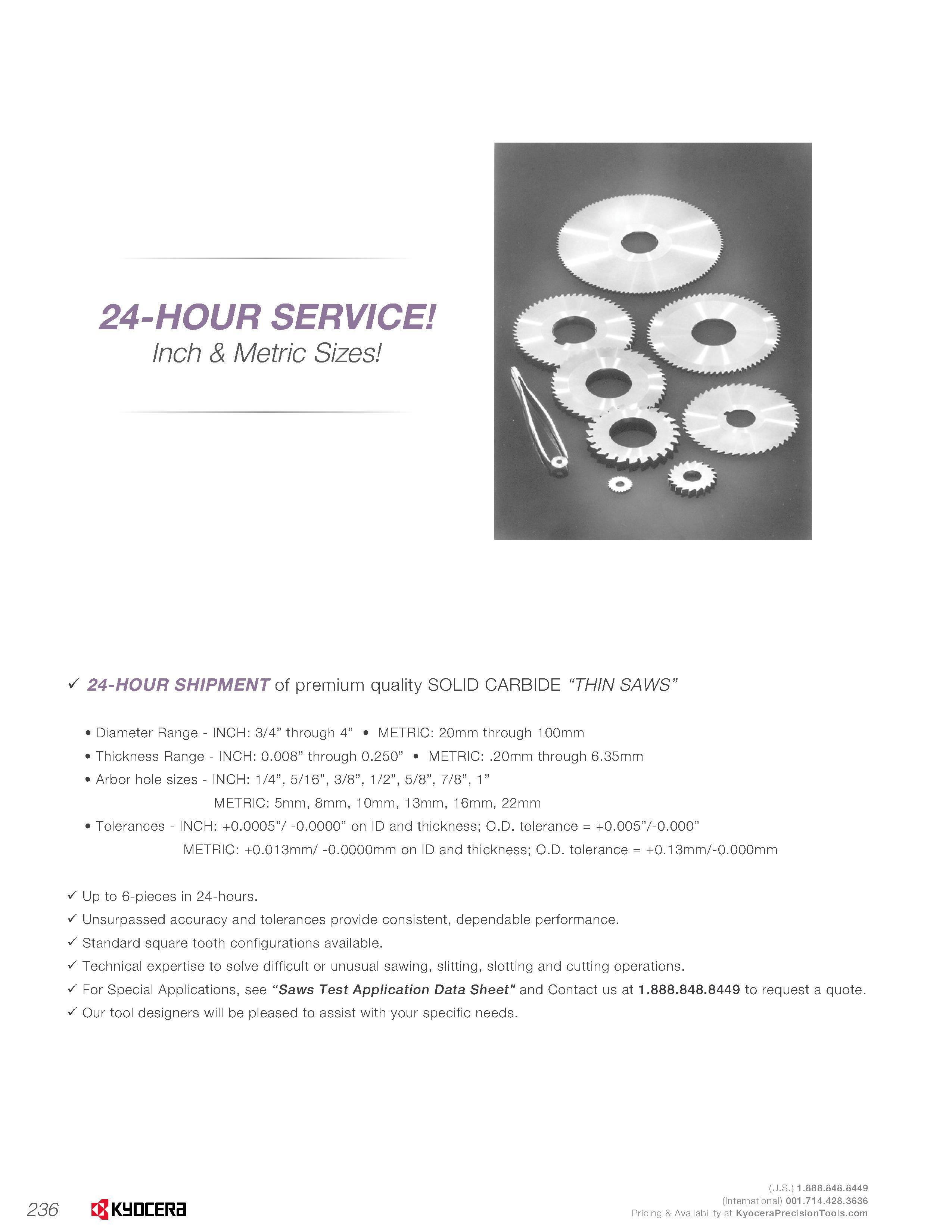

236 24-HOUR SERVICE Inch & Metric Sizes S 24-HOUR SHIPMENT of premium quality SOLID CARBIDE “THIN SAWS” Diameter Range - INCH: 3/4” through 4” METRIC: 20mm through 100mm Thickness Range - INCH: 0.008” through 0.250” METRIC: .20mm through 6.35mm Arbor hole sizes - INCH: 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 7/8”, 1” METRIC: 5mm, 8mm, 10mm, 13mm, 16mm, 22mm Tolerances - INCH: +0.0005”/ -0.0000” on ID and thickness; O.D. tolerance = +0.005”/-0.000” METRIC: +0.013mm/ -0.0000mm on ID and thickness; O.D. tolerance = +0.13mm/-0.000mm S Up to 6-pieces in 24-hours. S Unsurpassed accuracy and tolerances provide consistent, dependable performance. S Standard square tooth configurations available. S Technical expertise to solve difficult or unusual sawing, slitting, slotting and cutting operations. S For Special Applications, see “Saws Test Application Data Sheet" and Contact us at to request a quote. S Our tool designers will be pleased to assist with your specific needs.
