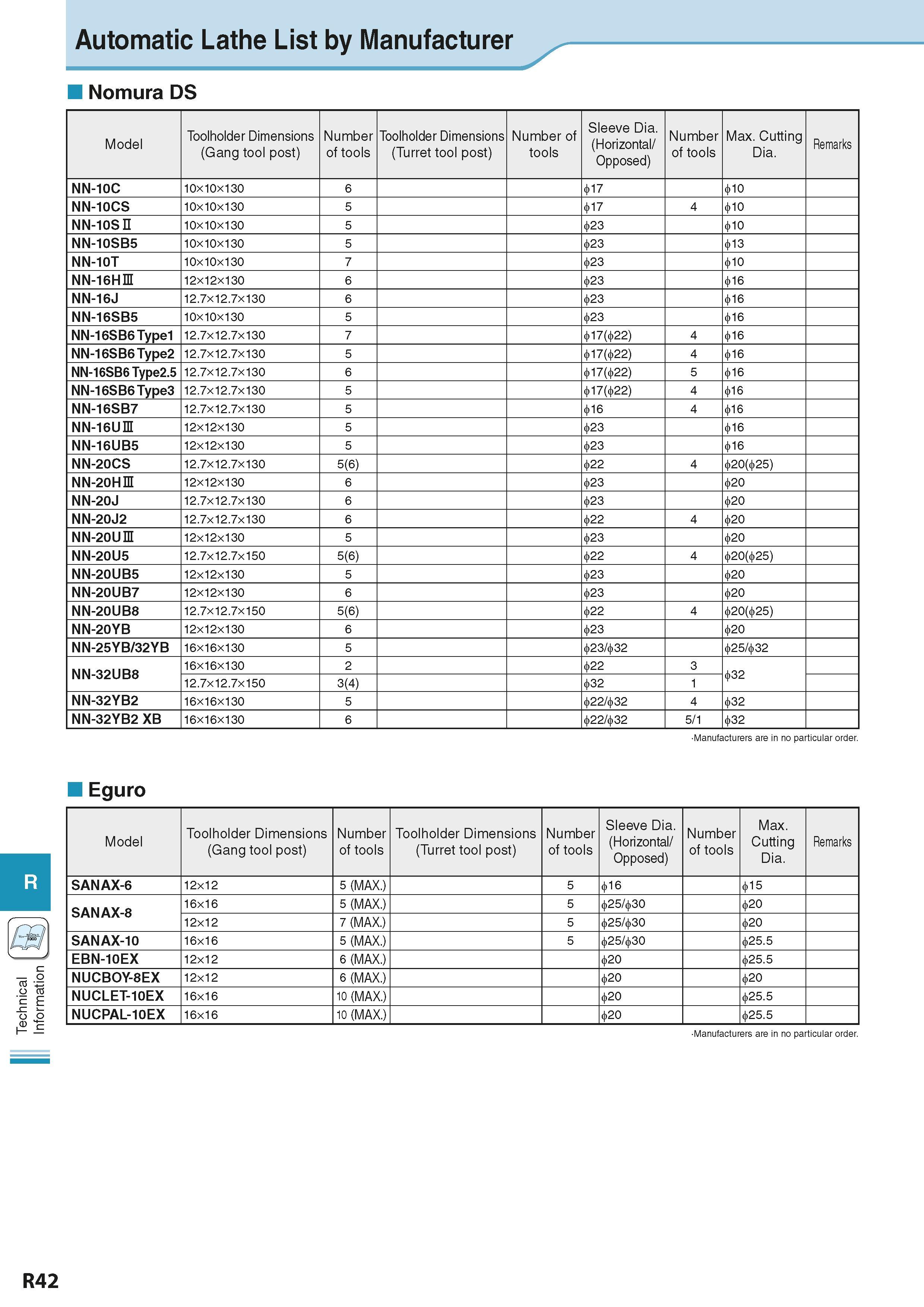

Technical Information Automatic Lathe List by Manufacturer Nomura DS Model Toolholder Dimensions Number Toolholder Dimensions Number of Sleeve Dia. (Horizontal/ Opposed) Number Max. Cutting Remarks (Gang tool post) of tools (Turret tool post) tools of tools Dia. NN-10C 10x10x130 6 17 10 NN-10CS 10x10x130 5 17 4 10 NN-10SH 10x10x130 5 23 10 NN-10SB5 10x10x130 5 23 13 NN-10T 10x10x130 7 23 10 NN-16Hm 12x12x130 6 23 16 NN-16J 12.7x12.7x130 6 23 16 NN-16SB5 10x10x130 5 23 16 NN-16SB6 Type1 12.7x12.7x130 7 17( 22) 4 16 NN-16SB6 Type2 12.7x12.7x130 5 17( 22) 4 16 NN-16SB6 Type2.5 12.7x12.7x130 6 17( 22) 5 16 NN-16SB6 Type3 12.7x12.7x130 5 17( 22) 4 16 NN-16SB7 12.7x12.7x130 5 16 4 16 NN-16Um 12x12x130 5 23 16 NN-16UB5 12x12x130 5 23 16 NN-20CS 12.7x12.7x130 5(6) 22 4 20( 25) NN-20Hm 12x12x130 6 23 20 NN-20J 12.7x12.7x130 6 23 20 NN-20J2 12.7x12.7x130 6 22 4 20 NN-20Um 12x12x130 5 23 20 NN-20U5 12.7x12.7x150 5(6) 22 4 20( 25) NN-20UB5 12x12x130 5 23 20 NN-20UB7 12x12x130 6 23 20 NN-20UB8 12.7x12.7x150 5(6) 22 4 20( 25) NN-20YB 12x12x130 6 23 20 NN-25YB/32YB 16x16x130 5 23/ 32 25/ 32 NN-32UB8 16x16x130 2 22 3 32 12.7x12.7x150 3(4) 32 1 NN-32YB2 16x16x130 5 22/ 32 4 32 NN-32YB2 XB 16x16x130 6 22/ 32 5/1 32 Manufacturers are in no particular order. Eguro Model Toolholder Dimensions (Gang tool post) Number of tools Toolholder Dimensions (Turret tool post) Number of tools Sleeve Dia. (Horizontal/ Opposed) Number of tools Max. Cutting Dia. Remarks SANAX-6 12x12 5 (MAX.) 5 16 15 SANAX-8 16x16 5 (MAX.) 5 25/ 30 20 12x12 7 (MAX.) 5 25/ 30 20 SANAX-10 16x16 5 (MAX.) 5 25/ 30 25.5 EBN-10EX 12x12 6 (MAX.) 20 25.5 NUCBOY-8EX 12x12 6 (MAX.) 20 20 NUCLET-10EX 16x16 10 (MAX.) 20 25.5 NUCPAL-10EX 16x16 10 (MAX.) 20 25.5 Manufacturers are in no particular order. R42
