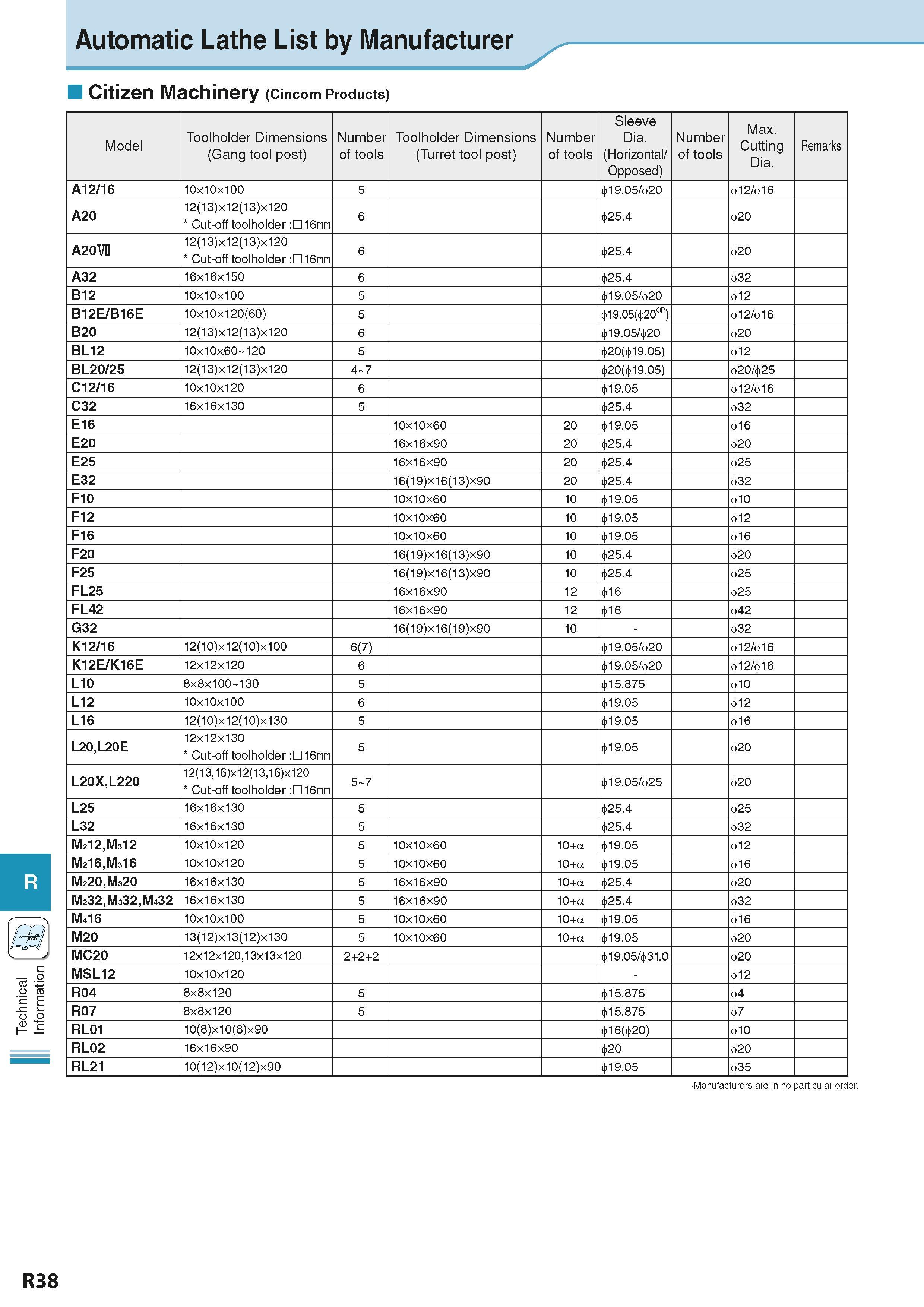

Technical Information Automatic Lathe List by Manufacturer Citizen Machinery (Cincom Products) Model Toolholder Dimensions (Gang tool post) Number of tools Toolholder Dimensions (Turret tool post) Number of tools Sleeve Dia. (Horizontal/ Opposed) Number of tools Max. Cutting Dia. Remarks A12/16 10x10x100 5 < 19.05/ 20 12/ 16 A20 12(13)x12(13)x120 Cut-off toolholder :D16mm 6 25.4 20 A20W 12(13)x12(13)x120 Cut-off toolholder :D16mm 6 25.4 20 A32 16x16x150 6 25.4 32 B12 10x10x100 5 19.05/ 20 12 B12E/B16E 10x10x120(60) 5 4>19.05( 20OP) 12/ 16 B20 12(13)x12(13)x120 6 19.05/ 20 20 BL12 10x10x60 120 5 20( 19.05) 12 BL20/25 12(13)x12(13)x120 4 7 20( 19.05) 20/ 25 C12/16 10x10x120 6 19.05 12/ 16 C32 16x16x130 5 25.4 32 E16 10x10x60 20 19.05 16 E20 16x16x90 20 25.4 20 E25 16x16x90 20 25.4 25 E32 16(19)x16(13)x90 20 25.4 32 F10 10x10x60 10 19.05 10 F12 10x10x60 10 19.05 12 F16 10x10x60 10 19.05 16 F20 16(19)x16(13)x90 10 25.4 20 F25 16(19)x16(13)x90 10 25.4 25 FL25 16x16x90 12 16 25 FL42 16x16x90 12 16 42 G32 16(19)x16(19)x90 10 - 32 K12/16 12(10)x12(10)x100 6(7) 19.05/ 20 12/ 16 K12E/K16E 12x12x120 6 19.05/ 20 12/ 16 L10 8x8x100 130 5 15.875 10 L12 10x10x100 6 19.05 12 L16 12(10)x12(10)x130 5 19.05 16 L20,L20E 12x12x130 Cut-off toolholder :D16mm 5 19.05 20 L20X,L220 12(13,16)x12(13,16)x120 Cut-off toolholder :D16mm 5 7 19.05/ 25 20 L25 16x16x130 5 25.4 25 L32 16x16x130 5 25.4 32 M212,Ma12 10x10x120 5 10x10x60 10+a 19.05 12 M216,Ma16 10x10x120 5 10x10x60 10+a 19.05 16 M220,Ma20 16x16x130 5 16x16x90 10+a 25.4 20 M232,Ma32,M432 16x16x130 5 16x16x90 10+a 25.4 32 M416 10x10x100 5 10x10x60 10+a 19.05 16 M20 13(12)x13(12)x130 5 10x10x60 10+a 19.05 20 MC20 12x12x120,13x13x120 2+2+2 19.05/ 31.0 20 MSL12 10x10x120 - 12 R04 8x8x120 5 15.875
