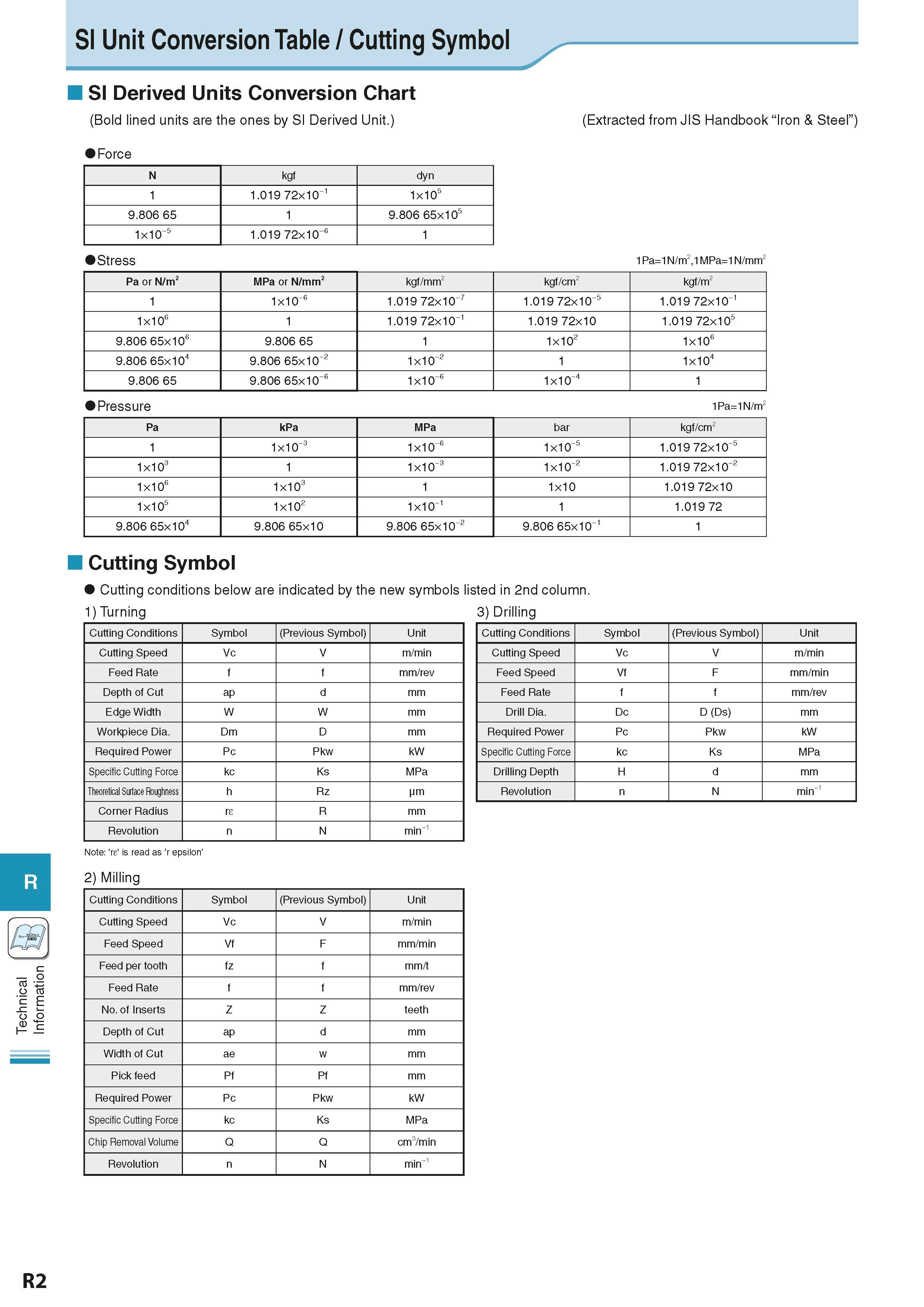

Technical Information SI Unit Conversion Table / Cutting Symbol SI Derived Units Conversion Chart (Bold lined units are the ones by SI Derived Unit.) Force (Extracted from JIS Handbook “Iron & Steel” N kgf dyn 1 1.019 72x10-1 1x105 9.806 65 1 9.806 65x105 1x10-5 1.019 72x10-6 1 Stress 1Pa=1N/m2,1MPa=1N/mm2 Pa or N/m2 MPa or N/mm2 kgf/mm2 kgf/cm2 kgf/m2 1 1x10-6 1.019 72x10-7 1.019 72x10-5 1.019 72x10-1 1x106 1 1.019 72x10-1 1.019 72x10 1.019 72x105 9.806 65x106 9.806 65 1 1x102 1x106 9.806 65x104 9.806 65x10-2 1x10-2 1 1x104 9.806 65 9.806 65x10-6 1x10-6 1x10-4 1 Pressure 1Pa=1N/m2 Pa kPa MPa bar kgf/cm2 1 1x10-3 1x10-6 1x10-5 1.019 72x10-5 1x103 1 1x10-3 1x10-2 1.019 72x10-2 1x106 1x103 1 1x10 1.019 72x10 1x105 1x102 1x10-1 1 1.019 72 9.806 65x104 9.806 65x10 9.806 65x10-2 9.806 65x10-1 1 Cutting Symbol Cutting conditions below are indicated by the new symbols listed in 2nd column. 1) Turning 3) Drilling Cutting Conditions Symbol (Previous Symbol) Unit Cutting Speed Vc V m/min Feed Rate f f mm/rev Depth of Cut ap d mm Edge Width W W mm Workpiece Dia. Dm D mm Required Power Pc Pkw kW Specific Cutting Force kc Ks MPa Theoretical Surface Roughness h Rz m Corner Radius re R mm Revolution n N min-1 Cutting Conditions Symbol (Previous Symbol) Unit Cutting Speed Vc V m/min Feed Speed Vf F mm/min Feed Rate f f mm/rev Drill Dia. Dc D (Ds) mm Required Power Pc Pkw kW Specific Cutting Force kc Ks MPa Drilling Depth H d mm Revolution n N min-1 Note: 're' is read as 'r epsilon' 2) Milling Cutting Conditions Symbol (Previous Symbol) Unit Cutting Speed Vc V m/min Feed Speed Vf F mm/min Feed per tooth fz f mm/t Feed Rate f f mm/rev No. of Inserts Z Z teeth Depth of Cut ap d mm Width of Cut ae w mm Pick feed Pf Pf mm Required Power Pc Pkw kW Specific Cutting Force kc Ks MPa Chip Removal Volume cm3/min Revolution n N min-1 R2
