839 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.M153

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. M153 0839 Lab2u

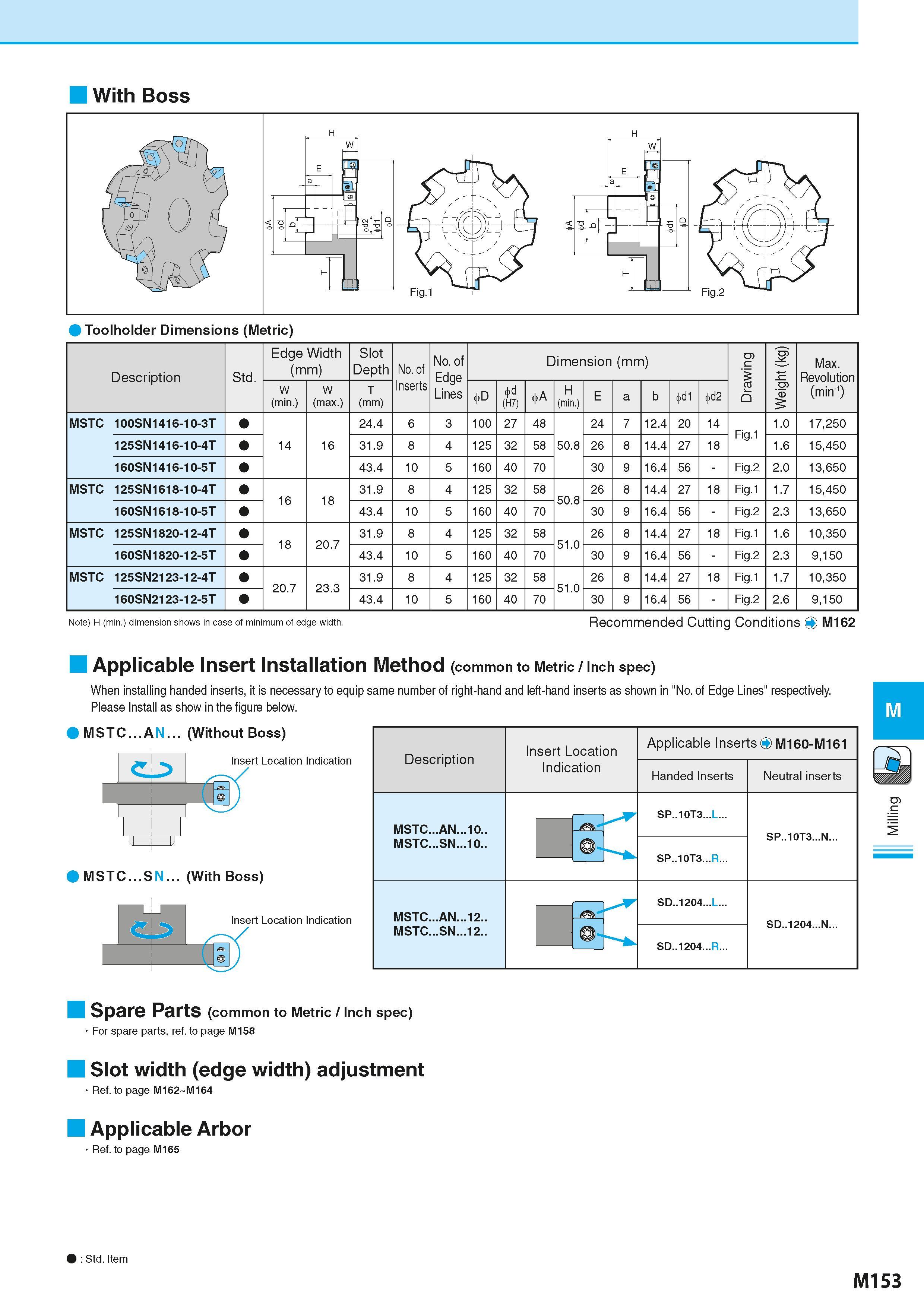

With Boss Toolholder Dimensions (Metric) Description Обозначение инструмента для заказа Std. Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines Dimension (mm) Размеры инструмента указаны в мм Drawing Weight (kg) Max. Revolution (min-1) W (min.) W (max.) T (mm) D d (H7) A H (min.) E a b d1 4>d2 MSTC 100SN1416-10-3T 14 16 24.4 6 3 100 27 48 50.8 24 7 12.4 20 14 Fig.1 1.0 17,250 125SN1416-10-4T 31.9 8 4 125 32 58 26 8 14.4 27 18 1.6 15,450 160SN1416-10-5T 43.4 10 5 160 40 70 30 9 16.4 56 - Fig.2 2.0 13,650 MSTC 125SN1618-10-4T 16 18 31.9 8 4 125 32 58 50.8 26 8 14.4 27 18 Fig.1 1.7 15,450 160SN1618-10-5T 43.4 10 5 160 40 70 30 9 16.4 56 - Fig.2 2.3 13,650 MSTC 125SN1820-12-4T 18 20.7 31.9 8 4 125 32 58 51.0 26 8 14.4 27 18 Fig.1 1.6 10,350 160SN1820-12-5T 43.4 10 5 160 40 70 30 9 16.4 56 - Fig.2 2.3 9,150 MSTC 125SN2123-12-4T 20.7 23.3 31.9 8 4 125 32 58 51.0 26 8 14.4 27 18 Fig.1 1.7 10,350 160SN2123-12-5T 43.4 10 5 160 40 70 30 9 16.4 56 - Fig.2 2.6 9,150 Note) h (min.) dimension shows in case of minimum of edge width. Recommended Cutting Conditions O M162 Applicable Insert Installation Method (common to Metric / inch spec) When installing handed inserts, it is necessary to equip same number of right-hand and left-hand inserts as shown in "No. of Edge Lines" respectively. Please Install as show in the figure below. MSTC...AN... (Without Boss) Insert Location Indication MSTC...SN... (With Boss) Insert Location Indication Description MSTC...AN...10.. MSTC...SN...10.. MSTC...AN...12.. MSTC...SN...12.. Insert Location Indication <0 O- Applicable Inserts 4) M160-M161 Handed Inserts SP..10T3...L.. SP..10T3...R.. SD..1204...L.. SD..1204...R.. Neutral inserts SP..10T3...N.. SD..1204...N.. Spare Parts (common to Metric / Inch spec) For spare parts, ref. to page M158 Slot width (edge width) adjustment Ref. to page M162 M164 Applicable Arbor Ref. to page M165 M Std. Item M153
