668 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.L54

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. L54 0668 Lab2u

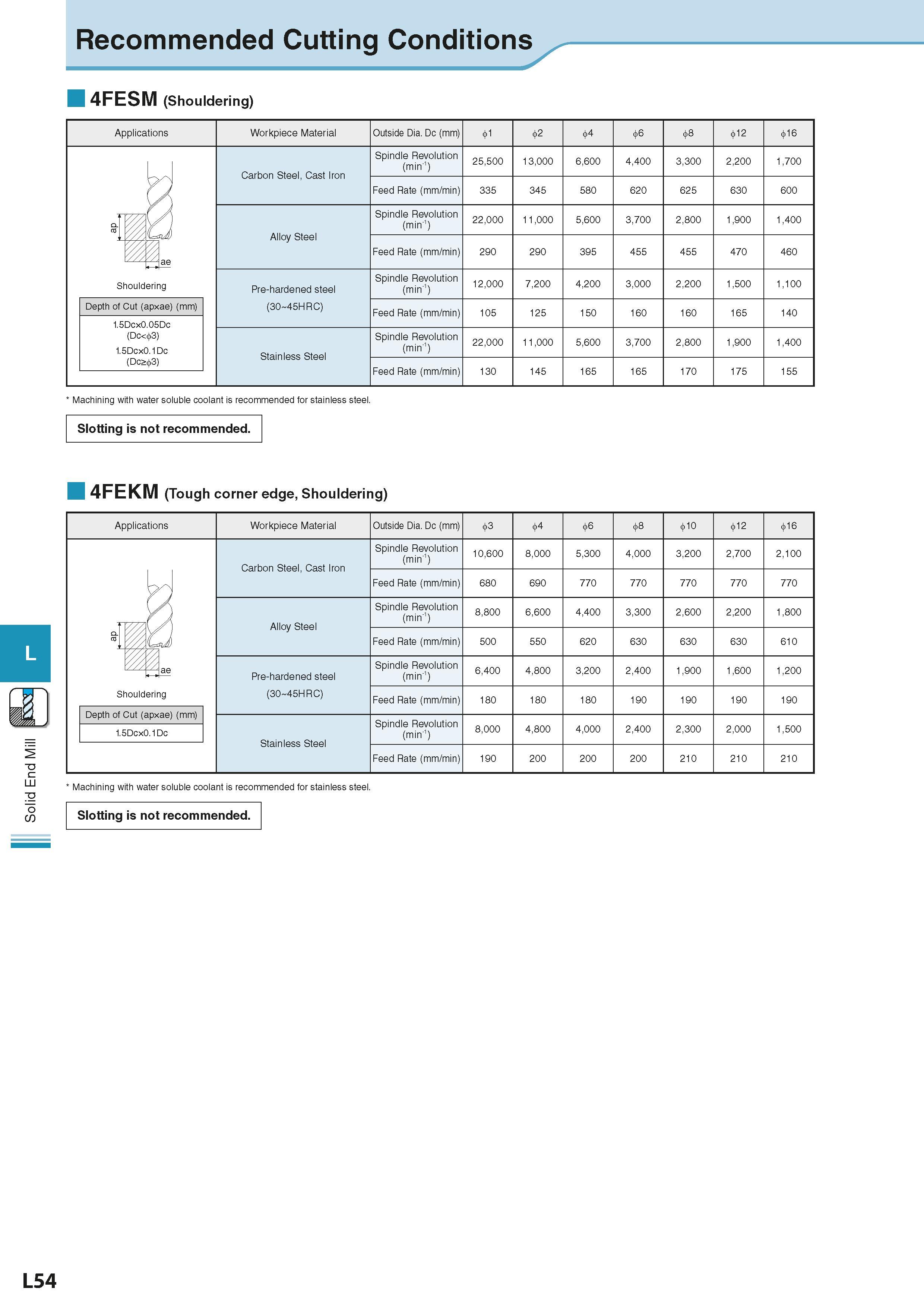

Solid End Mill Recommended Cutting Conditions 4FESM (Shouldering) Applications Workpiece Material Outside Dia. Dc (mm) 61 62 64 66 68 612 616 Carbon Steel, Cast Iron Spindle Revolution (min-1) 25,500 13,000 6,600 4,400 3,300 2,200 1,700 Feed Rate (mm/min) 335 345 580 620 625 630 600 CC Alloy Steel Spindle Revolution (min-1) 22,000 11,000 5,600 3,700 2,800 1,900 1,400 ae Feed Rate (mm/min) 290 290 395 455 455 470 460 Shouldering Pre-hardened steel (30 45HRC) Spindle Revolution (min-1) 12,000 7,200 4,200 3,000 2,200 1,500 1,100 Depth of Cut (apxae) (mm) 1.5Dcx0.05Dc (Dc<63) 1.5Dcx0.1Dc (Dc> 3) Feed Rate (mm/min) 105 125 150 160 160 165 140 Stainless Steel Spindle Revolution (min-1) 22,000 11,000 5,600 3,700 2,800 1,900 1,400 Feed Rate (mm/min) 130 145 165 165 170 175 155 Machining with water soluble coolant is recommended for stainless steel. Slotting is not recommended. 4FEKM (Tough corner edge, Shouldering) Applications Workpiece Material Outside Dia. Dc (mm) 63 64 66 68 610 612 616 Carbon Steel, Cast Iron Spindle Revolution (min-1) 10,600 8,000 5,300 4,000 3,200 2,700 2,100 Feed Rate (mm/min) 680 690 770 770 770 770 770 Alloy Steel Spindle Revolution (min-1) 8,800 6,600 4,400 3,300 2,600 2,200 1,800 CC Feed Rate (mm/min) 500 550 620 630 630 630 610 77 '// -f ae Pre-hardened steel (30 45HRC) Spindle Revolution (min-1) 6,400 4,800 3,200 2,400 1,900 1,600 1,200 Shouldering Depth of Cut (apxae) (mm) 1.5Dcx0.1Dc Feed Rate (mm/min) 180 180 180 190 190 190 190 Stainless Steel Spindle Revolution (min-1) 8,000 4,800 4,000 2,400 2,300 2,000 1,500 Feed Rate (mm/min) 190 200 200 200 210 210 210 Machining with water soluble coolant is recommended for stainless steel. Slotting is not recommended. L54
