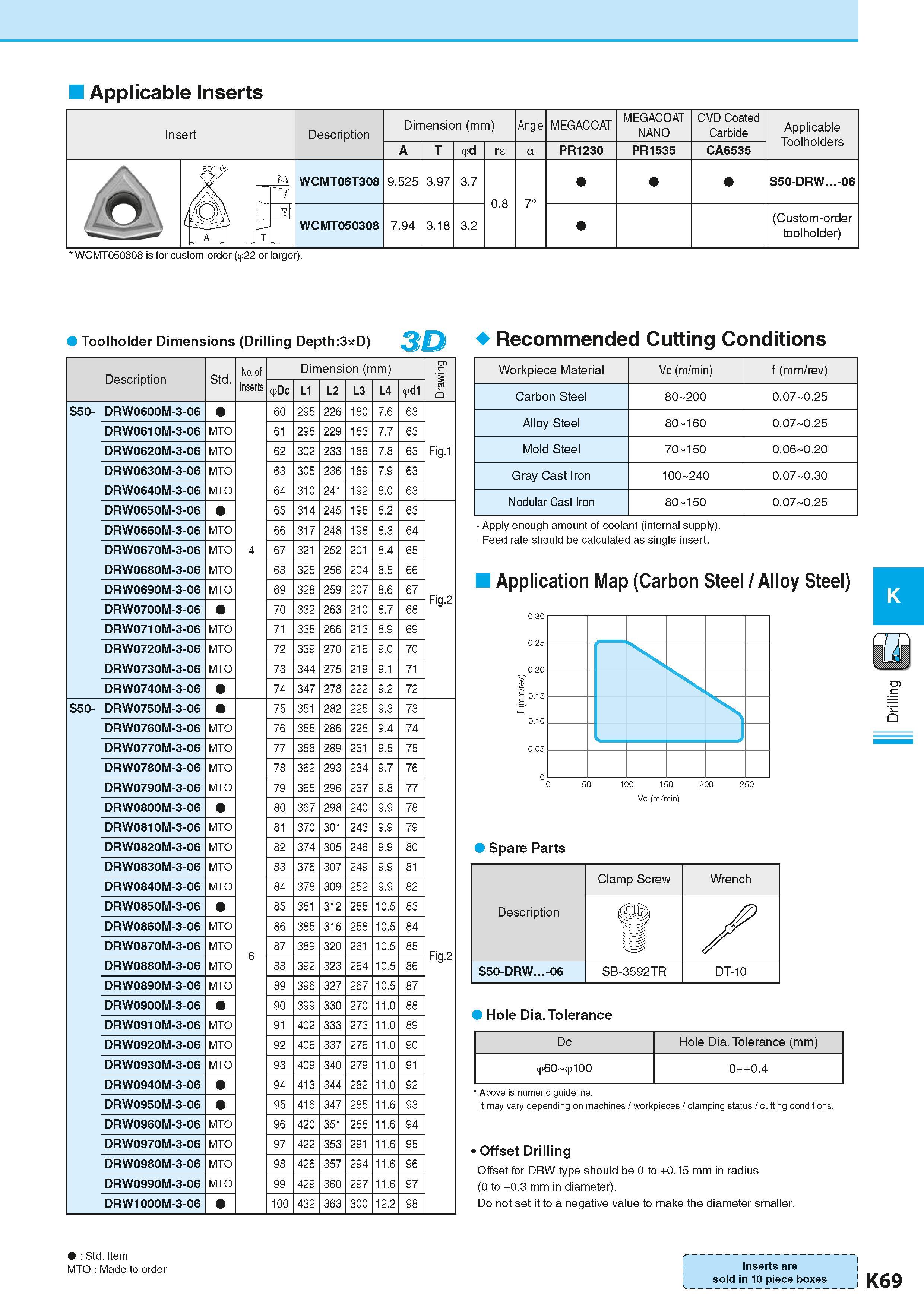

611 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.K69

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. K69 0611 Lab2u

Applicable Inserts Insert Description Dimension (mm) Размеры инструмента указаны в мм Angle MEGACOAT MEGACOAT NANO CVD Coated Carbide Applicable Toolholders A T 9d rs a PR1230 PR1535 CA6535 i8)\ 80° X m A T WCMT06T308 9.525 3.97 3.7 0.8 7° S50-DRW...-06 WCMT050308 7.94 3.18 3.2 (Custom-order toolholder) WCMT050308 is for custom-order (922 or larger). Toolholder Dimensions (Drilling Depth:3xD) 3D Recommended Cutting Conditions Description Обозначение инструмента для заказа Std. No. of Dimension (mm) Размеры инструмента указаны в мм Drawing Inserts 9Dc L1 L2 L3 L4 9d1 S50- DRW0600M-3-06 60 295 226 180 7.6 63 DRW0610M-3-06 MTO 61 298 229 183 7.7 63 DRW0620M-3-06 MTO 62 302 233 186 7.8 63 Fig.1 DRW0630M-3-06 MTO 63 305 236 189 7.9 63 DRW0640M-3-06 MTO 64 310 241 192 8.0 63 DRW0650M-3-06 65 314 245 195 8.2 63 DRW0660M-3-06 MTO 66 317 248 198 8.3 64 DRW0670M-3-06 MTO 4 67 321 252 201 8.4 65 DRW0680M-3-06 MTO 68 325 256 204 8.5 66 DRW0690M-3-06 MTO 69 328 259 207 8.6 67 Fig.2 DRW0700M-3-06 70 332 263 210 8.7 68 DRW0710M-3-06 MTO 71 335 266 213 8.9 69 DRW0720M-3-06 MTO 72 339 270 216 9.0 70 DRW0730M-3-06 MTO 73 344 275 219 9.1 71 DRW0740M-3-06 74 347 278 222 9.2 72 S50- DRW0750M-3-06 75 351 282 225 9.3 73 DRW0760M-3-06 MTO 76 355 286 228 9.4 74 DRW0770M-3-06 MTO 77 358 289 231 9.5 75 DRW0780M-3-06 MTO 78 362 293 234 9.7 76 DRW0790M-3-06 MTO 79 365 296 237 9.8 77 DRW0800M-3-06 80 367 298 240 9.9 78 DRW0810M-3-06 MTO 81 370 301 243 9.9 79 DRW0820M-3-06 MTO 82 374 305 246 9.9 80 DRW0830M-3-06 MTO 83 376 307 249 9.9 81 DRW0840M-3-06 MTO 84 378 309 252 9.9 82 DRW0850M-3-06 85 381 312 255 10.5 83 DRW0860M-3-06 MTO 86 385 316 258 10.5 84 DRW0870M-3-06 MTO 6 87 389 320 261 10.5 85 Fig.2 DRW0880M-3-06 MTO 88 392 323 264 10.5 86 DRW0890M-3-06 MTO 89 396 327 267 10.5 87 DRW0900M-3-06 90 399 330 270 11.0 88 DRW0910M-3-06 MTO 91 402 333 273 11.0 89 DRW0920M-3-06 MTO 92 406 337 276 11.0 90 DRW0930M-3-06 MTO 93 409 340 279 11.0 91 DRW0940M-3-06 94 413 344 282 11.0 92 DRW0950M-3-06 95 416 347 285 11.6 93 DRW0960M-3-06 MTO 96 420 351 288 11.6 94 DRW0970M-3-06 MTO 97 422 353 291 11.6 95 DRW0980M-3-06 MTO 98 426 357 294 11.6 96 DRW0990M-3-06 MTO 99 429 360 297 11.6 97 DRW1000M-3-06 100 432 363 300 12.2 98 Workpiece Material Vc (m/min) f (mm/rev) Carbon Steel 80 200 0.07 0.25 Alloy Steel 80 160 0.07 0.25 Mold Steel 70 150 0.06 0.20 Gray Cast Iron 100 240 0.07 0.30 Nodular Cast Iron 80 150 0.07 0.25 Apply enough amount of coolant (internal supply). Feed rate should be calculated as single insert. Application Map (Carbon Steel / Alloy Steel) 100 150 200 250 Vc (m/min) 0 0 50 Spare Parts Description Clamp Screw Wrench fjf / S50-DRW...-06 SB-3592TR DT-10 Hole Dia. Tolerance Dc Hole Dia. Tolerance (mm) 960-9100 0 +0.4 Above is numeric guideline. It may vary depending on machines / workpieces / clamping status / cutting conditions. Offset Drilling Offset for DRW type should be 0 to +0.15 mm in radius (0 to +0.3 mm in diameter). Do not set it to a negative value to make the diameter smaller. Std. Item MTO Made to order nserts are i sold in 10 piece boxes 0.25 0.20 £ 0.15 0.10 0.05 K K69 Drilling
