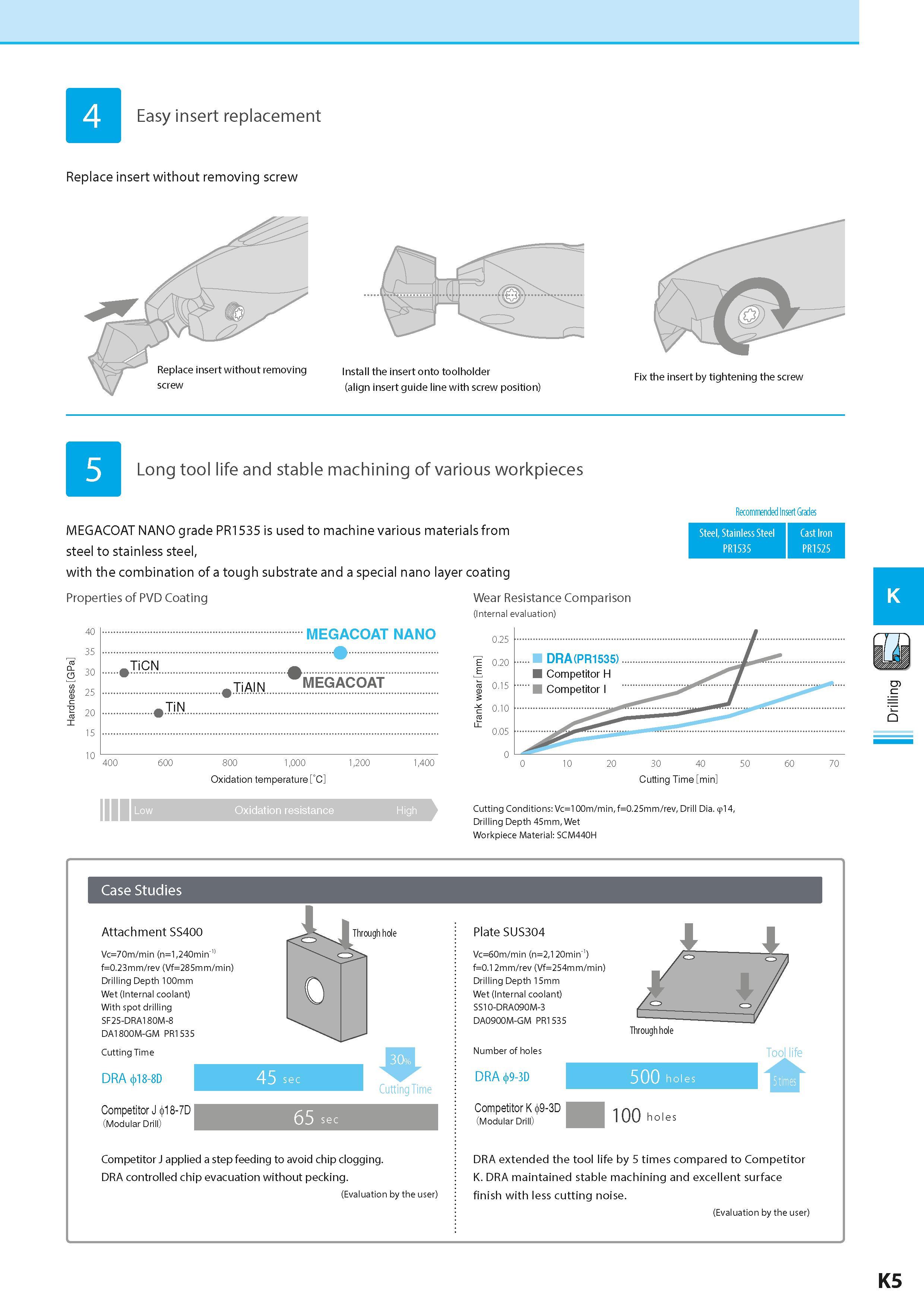

Easy insert replacement Replace insert without removing screw Install the insert onto toolholder (align insert guide line with screw position) Longtoollife and stable machining of various workpieces MEGACOAT NANO grade PR1535 is used to machine various materials from steel to stainless steel, with the combination of a tough substrate and a special nano layer coating Properties of PVD Coating Wear Resistance Comparison (Internal evaluation) 4C 35 2 3C O) 25 0 z- 2C I 15 1C TiCN MEGACOAT NANO ... .......... TiAIN MEGACOAT TiN Recommended Insert Grades Steel, Stainless Steel Cast Iron PR1535 PR1525 mu 8CC 1,CCC Oxidation temperature °C Oxidation resistance Cutting Time min. Cutting Conditions: Vc=100m/min, f=0.25mm/rev, Drill Dia. 914, Drilling Depth 45mm, Wet Workpiece Material: SCM440H 4CC 50C High Case Studies Attachment SS400 Vc=70m/min (n=1,240min-1) f=0.23mm/rev (Vf=285mm/min) Drilling Depth 100mm Wet (Internal coolant) With spot drilling SF25-DRA180M-8 DA1800M-GM PR1535 Cutting Time DRA fl8-8D Competitor J 18-7D (Modular Drill) Competitor J applied a step feeding to avoid chip clogging. DRA controlled chip evacuation without pecking. (Evaluation by the user) Plate SUS304 Vc=60m/min (n=2,120min-1) f=0.12mm/rev (Vf=254mm/min) Drilling Depth 15mm Wet (Internal coolant) SS10-DRA090M-3 DA0900M-GM PR1535 Number of holes DRA 9-3D Competitor K 9-3D (Modular Drill) Through hole 500 holes 100 holes Tool life DRA extended the tool life by 5 times compared to Competitor K. DRA maintained stable machining and excellent surface finish with less cutting noise. (Evaluation by the user) K5 Drilling
