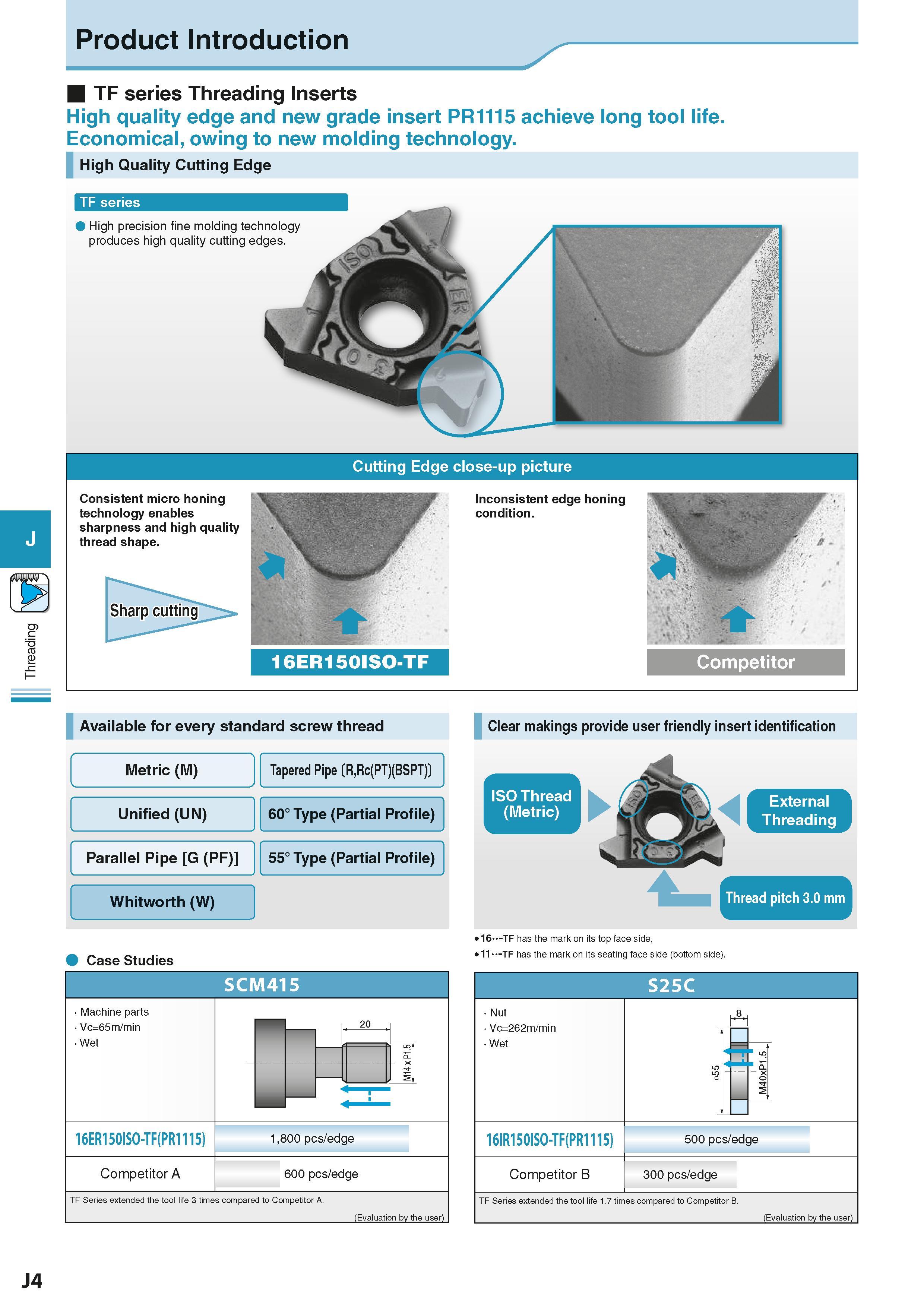

Threading Product Introduction TF series Threading Inserts High quality edge and new grade insert PR1115 achieve long tool life. Economical, owing to new molding technology. High Quality Cutting Edge TF series High precision fine molding technology produces high quality cutting edges. Cutting Edge close-up picture Consistent micro honing technology enables sharpness and high quality thread shape. Inconsistent edge honing condition. 16ER150ISO-TF Competitor Available for every standard screw thread Metric (M) Tapered Pipe (R,Rc(PT)(BSPT)) Unified (UN) 60° Type (Partial Profile) Parallel Pipe G (PF) 55° Type (Partial Profile) Whitworth (W) Clear makings provide user friendly insert identification External 1 Threading Thread pitch 3.0 mm Case Studies 16"-TF has the mark on its top face side, 11"-TF has the mark on its seating face side (bottom side). SCM415 Machine parts Vc=65m/min Wet l 20 s 1 CL J - < < B 16ER150ISO-TF(PR1115) 1,800 pcs/edge Competitor A 600 pcs/edge TF Series extended the tool life 3 times compared to Competitor A. (Evaluation by the user) S25C Nut Vc=262m/min Wet 5 5 < 10' K - X 0 4 5 16IR150ISO-TF(PR1115) 500 pcs/edge Competitor B 300 pcs/edge TF Series extended the tool life 1.7 times compared to Competitor B. (Evaluation by the user) J4
