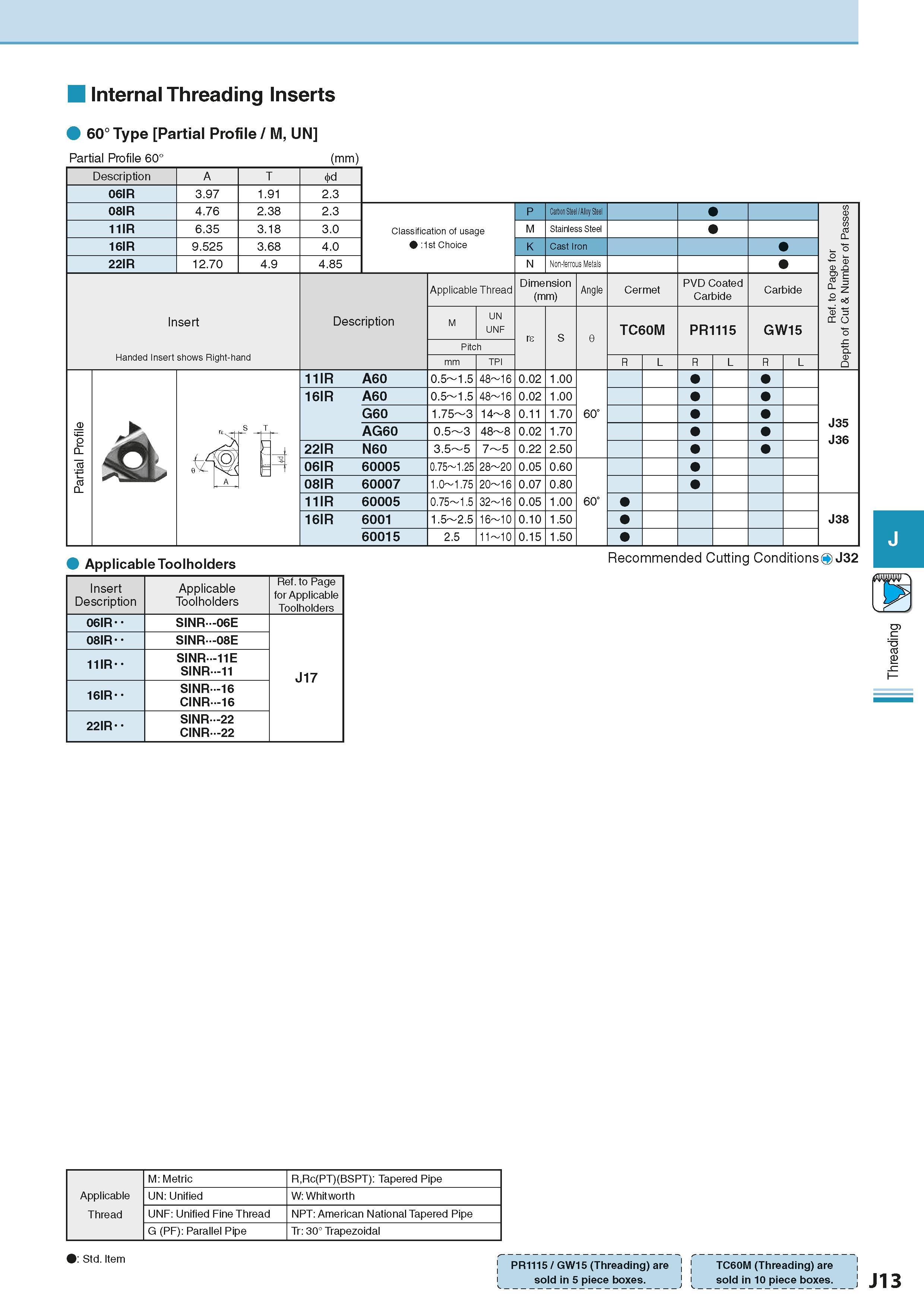

Internal Threading Inserts 60° Type Partial Profile / M, UN Partial Profile 60° (mm) Description 06IR A 3.97 T 1.91 2.3 08IR 4.76 2.38 2.3 11IR 6.35 3.18 3.0 16IR 9.525 3.68 4.0 Classification of usage :1st Choice 22IR 12.70 4.9 4.85 Insert Handed Insert shows Right-hand Description Applicable Thread UN UNF TPI P Carbon Steel /Alloy Steel M Stainless Steel N Non-ferrous Metals Dimension (mm) Размеры инструмента указаны в мм Angle Cermet TC60M PVD Coated Carbide PR1115 Carbide GW15 11IR A60 0.5-1.5 48-16 0.02 1.00 16IR A60 0.5-1.5 48-16 0.02 1.00 G60 1.75-3 14-8 0.11 1.70 60" AG60 0.5-3 48-8 0.02 1.70 22IR N60 3.5-5 7-5 0.22 2.50 06IR 60005 0.75-1.25 28-20 0.05 0.60 08IR 60007 1.0-1.75 20-16 0.07 0.80 11IR 60005 0.75-1.5 32-16 0.05 1.00 60" 16IR 6001 1.5-2.5 16-10 0.10 1.50 60015 2.5 11-10 0.15 1.50 J35 J36 J38 Applicable Toolholders Recommended Cutting ConditionsO J32 Insert Description Applicable Toolholders Ref. to Page for Applicable Toolholders 06IR SINR 06E J17 08IR SINR 08E 11IR SINR 11E SINR 11 16IR 66 11 CCCC ININ W o 22IR SINR 22 CINR 22 K M S e Pitch R L R L R L mm M: Metric R,Rc(PT)(BSPT): Tapered Pipe Applicable UN: Unified W: Whitworth Thread UNF: Unified Fine Thread NPT: American National Tapered Pipe G (PF): Parallel Pipe Tr: 30° Trapezoidal j PR1115 / GW15 (Threading) are j TC60M (Threading) are i sold in 5 piece boxes. J i sold in 10 piece boxes. J J13 Threading
