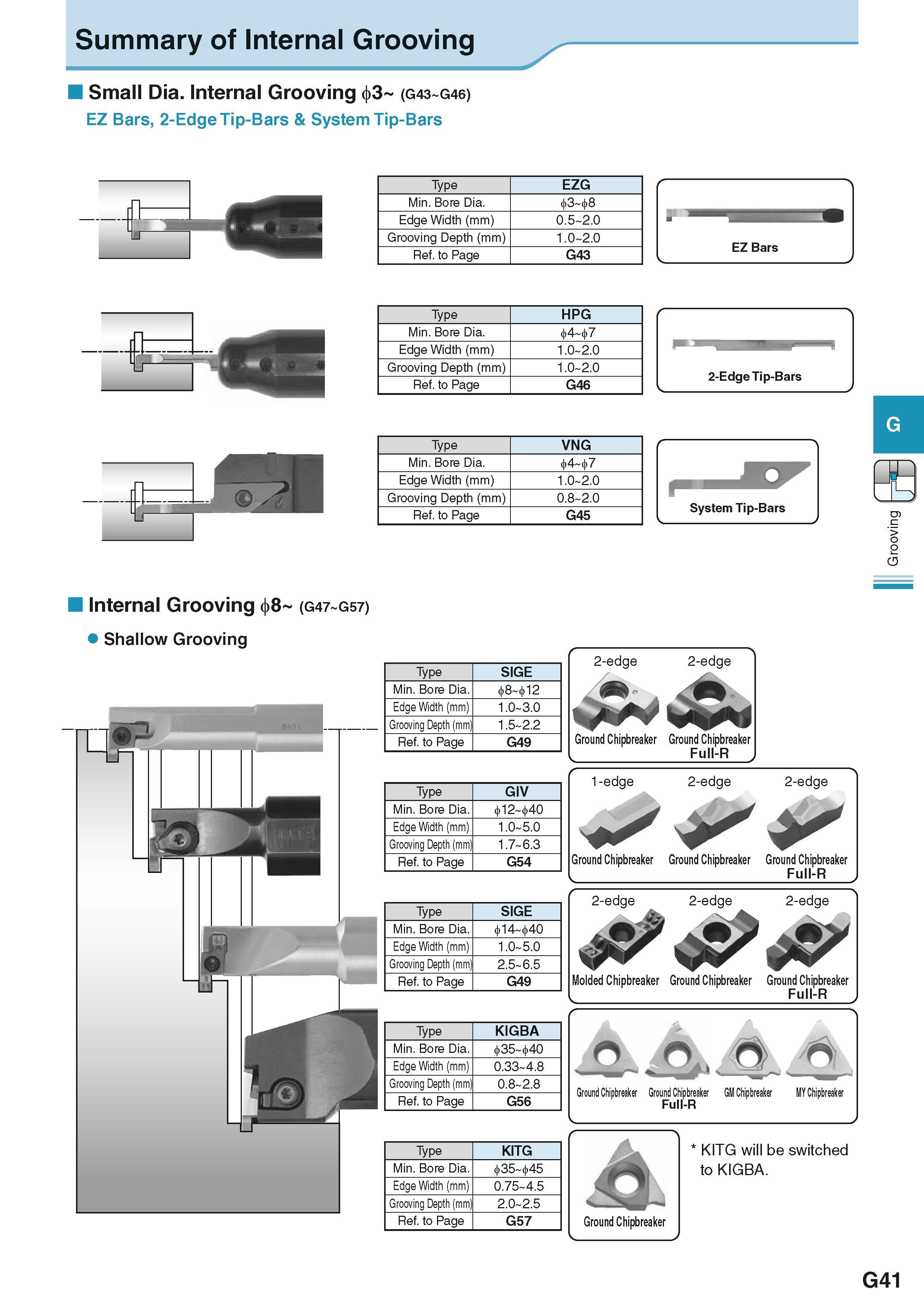

Summary of Internal Grooving Small Dia. Internal Grooving 3 (G43 G46) EZ Bars, 2-Edge Tip-Bars & System Tip-Bars Type EZG Min. Bore Dia. 3 8 Edge Width (mm) 0.5 2.0 Grooving Depth (mm) 1.0 2.0 Ref. to Page G43 Type HPG Min. Bore Dia. 4 7 Edge Width (mm) 1.0 2.0 Grooving Depth (mm) 1.0 2.0 Ref. to Page G46 Type VNG Min. Bore Dia. 4 7 Edge Width (mm) 1.0 2.0 Grooving Depth (mm) 0.8 2.0 Ref. to Page G45 > 5 Internal Grooving 8 (G47 G57) Shallow Grooving Type SIGE Min. Bore Dia. 8 12 Edge Width (mm) 1.0 3.0 Grooving Depth (mm) 1.5 2.2 Ref. to Page G49 2-edge 2-edge Ground Chipbreaker Ground Chipbreaker Full-R Type GIV Min. Bore Dia. 12 40 Edge Width (mm) 1.0 5.0 Grooving Depth (mm) 1.7 6.3 Ref. to Page G54 1-edge 2-edge 2-edge Ground Chipbreaker Ground Chipbreaker Ground Chipbreaker Full-R Type SIGE Min. Bore Dia. 14 40 Edge Width (mm) 1.0 5.0 Grooving Depth (mm) 2.5 6.5 Ref. to Page G49 2-edge 2-edge 2-edge Molded Chipbreaker Ground Chipbreaker Ground Chipbreaker Full-R Type KIGBA Min. Bore Dia. 35 40 Edge Width (mm) 0.33 4.8 Grooving Depth (mm) 0.8 2.8 Ref. to Page G56 Ground Chipbreaker Ground Chipbreaker Full-R GM Chipbreaker MY Chipbreaker Type KITG Min. Bore Dia. 35 45 Edge Width (mm) 0.75 4.5 Grooving Depth (mm) 2.0 2.5 Ref. to Page G57 Ground Chipbreaker ; KITG will be switched to KIGBA. G41
