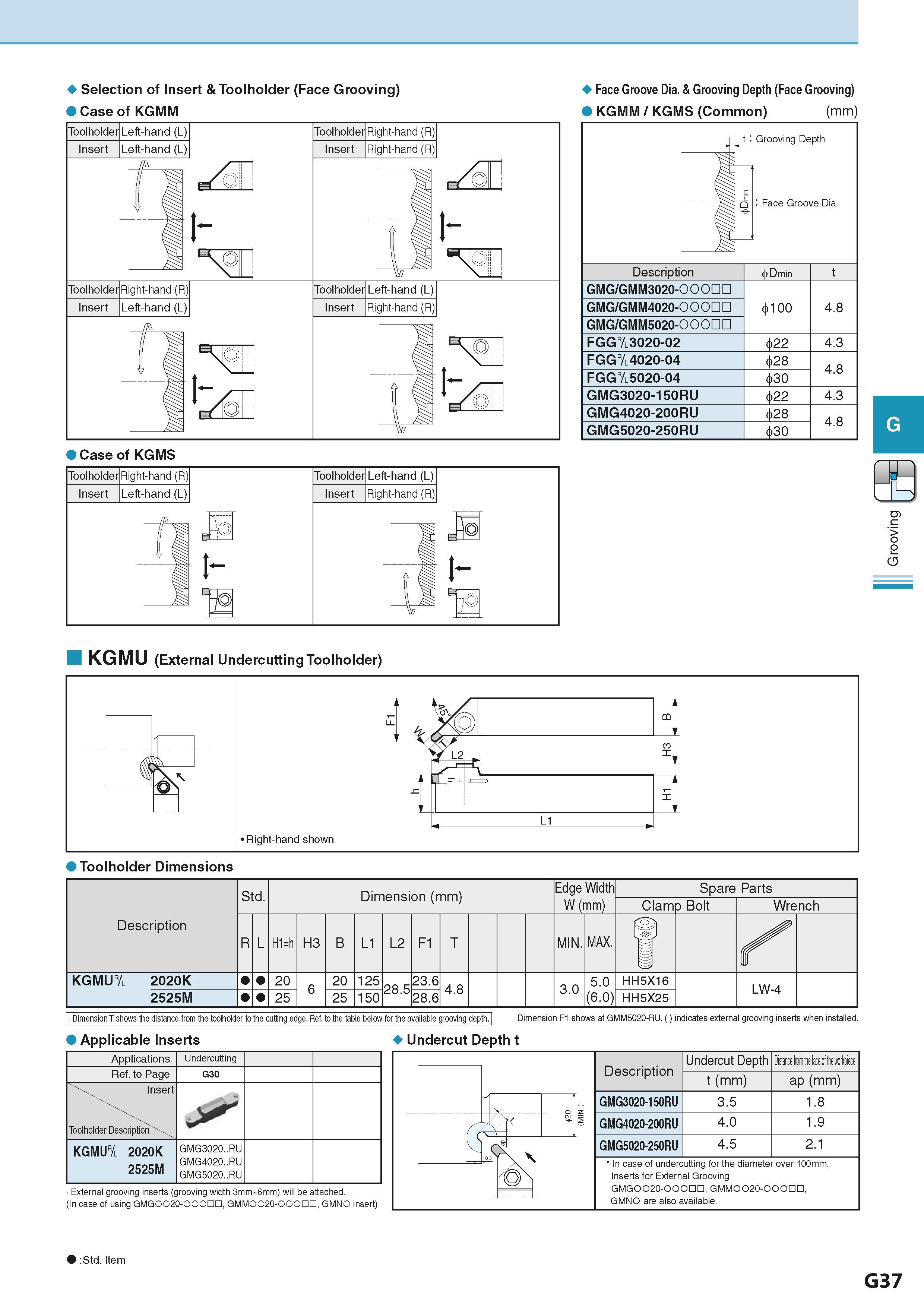

393 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.G37

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. G37 0393 Lab2u

Selection of Insert & Toolholder (Face Grooving) Case of KGMS Toolholder Right-hand (R) Insert Left-hand (L) Toolholder Left-hand (L) Insert Right-hand (R) Face Groove Dia. & Grooving Depth (Face Grooving) KGMM / KGMS (Common) (mm) t Grooving De pth ve Dia. - Face Groo Description <5 KGMU (External Undercutting Toolholder) Right-hand shown Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Edge Width W (mm) Spare Parts Clam p Bolt Wrench R L H1=h H3 B L1 L2 F1 T MIN. MAX. c> KGMU& 2020K 20 6 20 125 28.5 23.6 4.8 3.0 5.0 (6.0) HH5X16 LW-4 2525M 25 25 150 28.6 HH5X25 Dimension T shows the distance from the toolholder to the cutting edge. Ref, to the table below for the available grooving depth. Dimension F1 shows at GMM5020-RU. ( ) indicates external grooving inserts when installed. Applicable Inserts Undercut Depth t Applications Undercutting Ref. to Page G30 Insert Toolholder Description"' KGMU& 2020K 2525M GMG3020..RU GMG4020..RU GMG5020..RU External grooving inserts (grooving width 3mm 6mm) will be attached. (In case of using GMGOO20-OOODD, GMMOO20-OOODD, GMNO insert) Description Undercut Depth Distance from the fate of the workpiece t (mm) ap (mm) GMG3020-150RU 3.5 1.8 GMG4020-200RU 4.0 1.9 GMG5020-250RU 4.5 2.1 In case of undercutting for the diameter over 100mm, Inserts for External Grooving GMGOO20-OOODD, GMMOO20-OOODD, GMNO are also available. Std. Item G37
