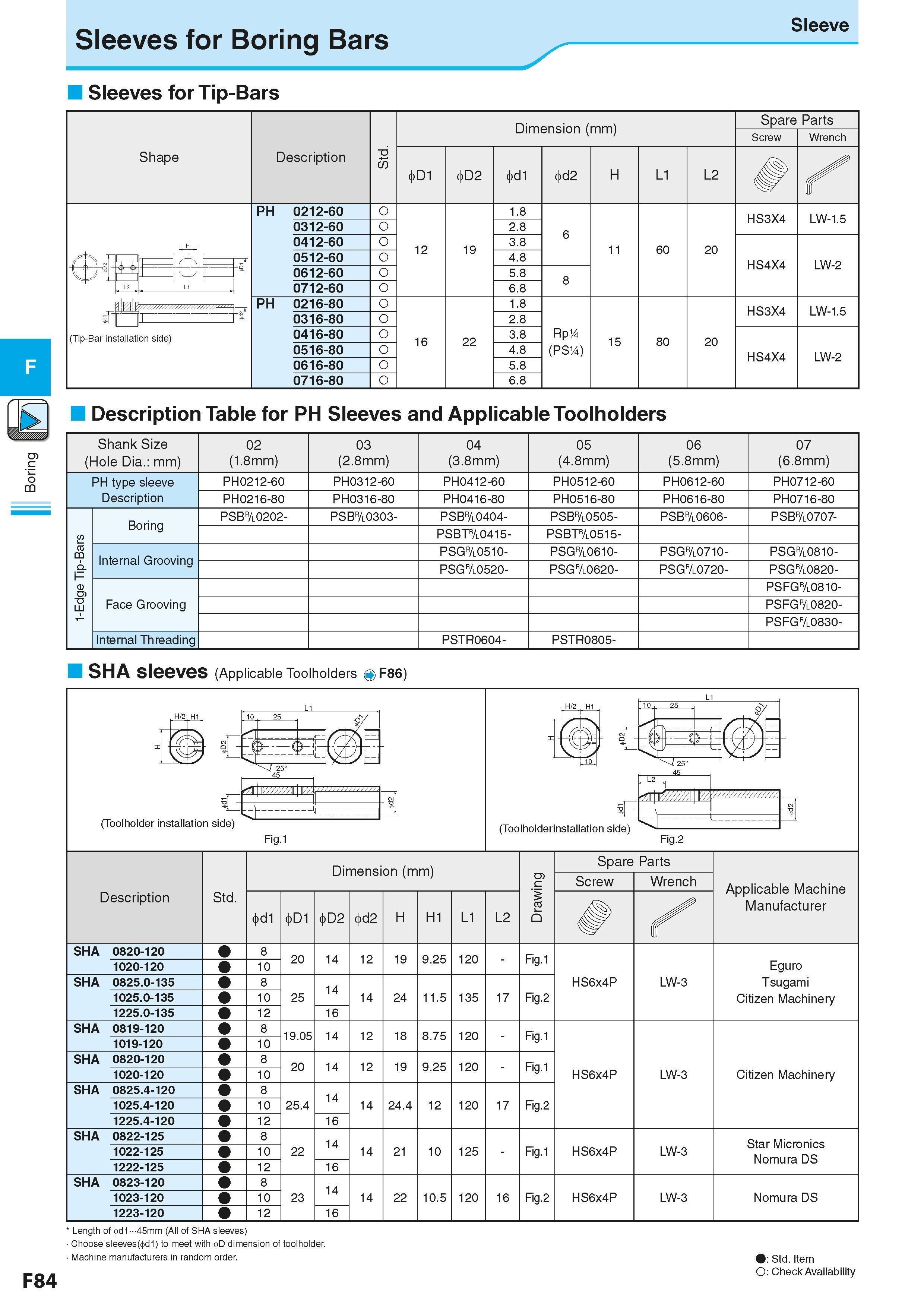

Boring F84 Sleeves for Boring Bars Sleeves for Tip-Bars Description Table for PH Sleeves and Applicable Toolholders Shank Size (Hole Dia.: mm) 02 (1.8mm) 03 (2.8mm) 04 (3.8mm) 05 (4.8mm) 06 (5.8mm) 07 (6.8mm) PH type sleeve Description PH0212-60 PH0312-60 PH0412-60 PH0512-60 PH0612-60 PH0712-60 PH0216-80 PH0316-80 PH0416-80 PH0516-80 PH0616-80 PH0716-80 1-Edge Tip-Bars Boring PSB&0202- PSB&0303- PSB&0404- PSB&0505- PSB&0606- PSB&0707- PSBT&0415- PSBT&0515- Internal Grooving PSG&0510- PSG&0610- PSG&0710- PSG&0810- PSG&0520- PSG&0620- PSG&0720- PSG&0820- Face Grooving PSFG&0810- PSFG&0820- PSFG&0830- Internal Threading PSTR0604- PSTR0805- SHA sleeves (Applicable Toolholders 4 F86) Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм < d1 < D1 < D2 < d2 H1 L1 L2 ar Dr Spare Parts Screw Wrench Applicable Machine Manufacturer SHA 0820-120 1020-120 SHA 0825.0-135 1025.0-135 1225.0-135 10 20 14 12 19 9.25 120 Fig.1 10 25 14 HS6x4P LW-3 14 24 11.5 135 17 Fig.2 Eguro Tsugami Citizen Machinery 12 16 SHA 0819-120 1019-120 SHA 0820-120 1020-120 SHA 0825.4-120 1025.4-120 1225.4-120 10 19.05 14 12 18 8.75 120 Fig.1 10 20 14 12 19 9.25 120 Fig.1 HS6x4P LW-3 Citizen Machinery 10 25.4 14 14 24.4 12 120 17 Fig.2 12 16 SHA 0822-125 1022-125 1222-125 10 22 14 14 21 10 125 Fig.1 HS6x4P LW-3 12 16 Star Micronics Nomura DS SHA 0823-120 1023-120 1223-120 10 23 14 14 22 10.5 120 16 Fig.2 HS6x4P LW-3 Nomura DS 12 16 H 8 8 8 8 8 8 8 Length of 4>d1-45mm (All of SHA sleeves) Choose sleeves( d1) to meet with D dimension of toolholder. Machine manufacturers in random order. Std. Item O: Check Availability
