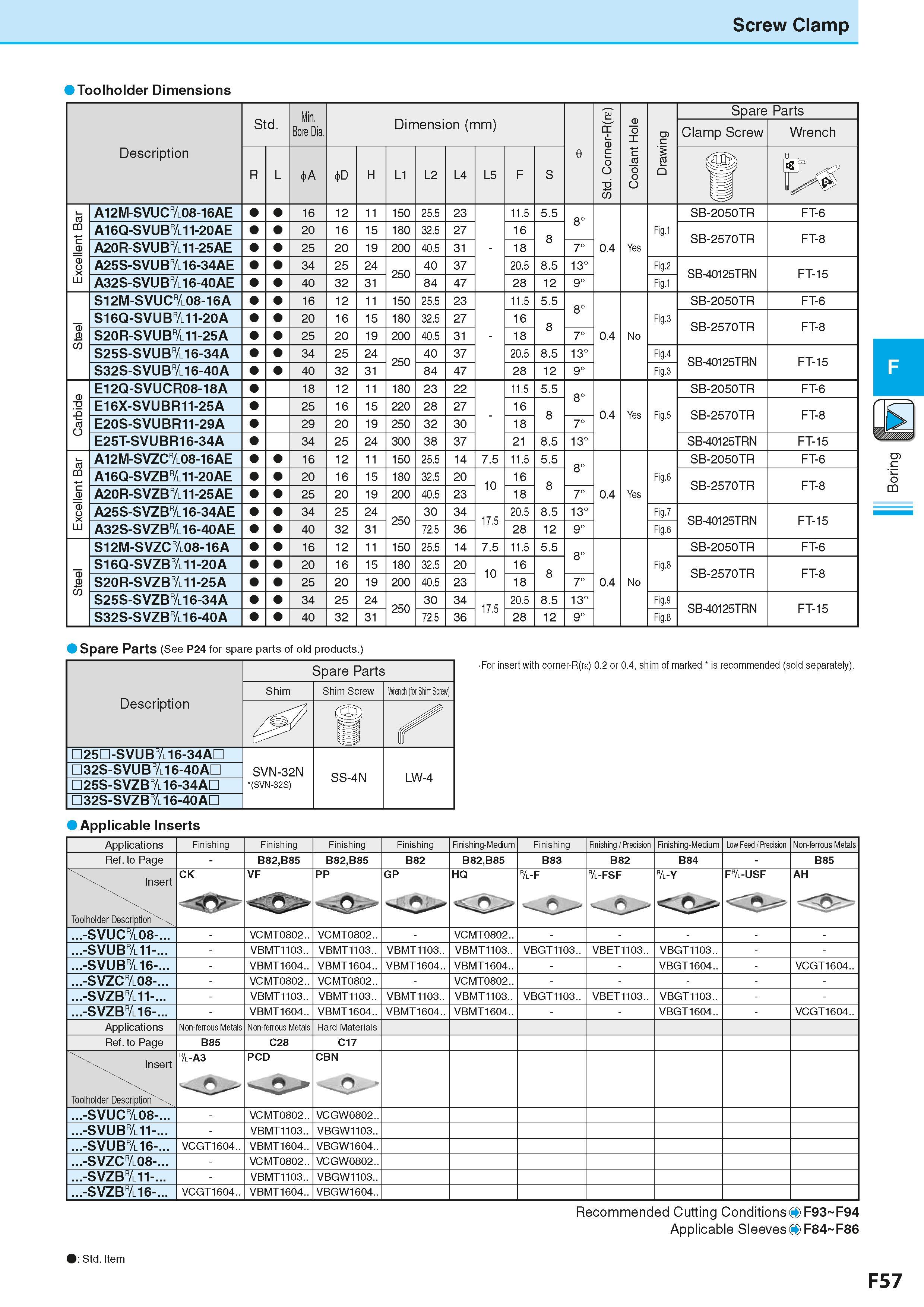

319 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.F57

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. F57 0319 Lab2u

Screw Clamp Toolholder Dimensions Description Обозначение инструмента для заказа Std. Min. Bore Dia. Dimension (mm) Размеры инструмента указаны в мм 0 Std. Corner-R(re) Coolant Hole Drawing Spare Parts Clamp Screw Wrench R L A D H L1 L2 L4 L5 F S u Excellent Bar A12M-SVUC&08-16AE 16 12 11 150 25.5 23 - 11.5 5.5 8° 0.4 Yes Fig.1 SB-2050TR FT-6 A16Q-SVUB&11-20AE 20 16 15 180 32.5 27 16 8 SB-2570TR FT-8 A20R-SVUB & 11-25AE 25 20 19 200 40.5 31 18 7° A25S-SVUB&16-34AE 34 25 24 250 40 37 20.5 8.5 13° Fig.2 SB-40125TRN FT-15 A32S-SVUB&16-40AE 40 32 31 84 47 28 12 9° Fig.1 Steel S12M-SVUC&08-16A 16 12 11 150 25.5 23 - 11.5 5.5 8° 0.4 No Fig.3 SB-2050TR FT-6 S16Q-SVUB&11-20A 20 16 15 180 32.5 27 16 8 SB-2570TR FT-8 S20R-SVUB&11-25A 25 20 19 200 40.5 31 18 7° S25S-SVUB & 16-34A 34 25 24 250 40 37 20.5 8.5 13° Fig.4 SB-40125TRN FT-15 S32S-SVUB&16-40A 40 32 31 84 47 28 12 9° Fig.3 Carbide E12Q-SVUCR08-18A 18 12 11 180 23 22 - 11.5 5.5 8° 0.4 Yes Fig.5 SB-2050TR FT-6 E16X-SVUBR11-25A 25 16 15 220 28 27 16 8 SB-2570TR FT-8 E20S-SVUBR11-29A 29 20 19 250 32 30 18 7° E25T-SVUBR16-34A 34 25 24 300 38 37 21 8.5 13° SB-40125TRN FT-15 Excellent Bar A12M-SVZC&08-16AE 16 12 11 150 25.5 14 7.5 11.5 5.5 8° 0.4 Yes Fig.6 SB-2050TR FT-6 A16Q-SVZB & 11-20AE 20 16 15 180 32.5 20 10 16 8 SB-2570TR FT-8 A20R-SVZB&11-25AE 25 20 19 200 40.5 23 18 7° A25S-SVZB&16-34AE 34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.7 SB-40125TRN FT-15 A32S-SVZB&16-40AE 40 32 31 72.5 36 28 12 9° Fig.6 Steel S12M-SVZC&08-16A 16 12 11 150 25.5 14 7.5 11.5 5.5 8° 0.4 No Fig.8 SB-2050TR FT-6 S16Q-SVZB&11-20A 20 16 15 180 32.5 20 10 16 8 SB-2570TR FT-8 S20R-SVZB&11-25A 25 20 19 200 40.5 23 18 7° S25S-SVZB&16-34A 34 25 24 250 30 34 17.5 20.5 8.5 13° Fig.9 SB-40125TRN FT-15 S32S-SVZB&16-40A 40 32 31 72.5 36 28 12 9° Fig.8 Spare Parts (See P24 for spare parts of old products.) Description Spare Parts Shim Shim Screw Wrench (lot Shim Screw) 1 S' 25D-S
