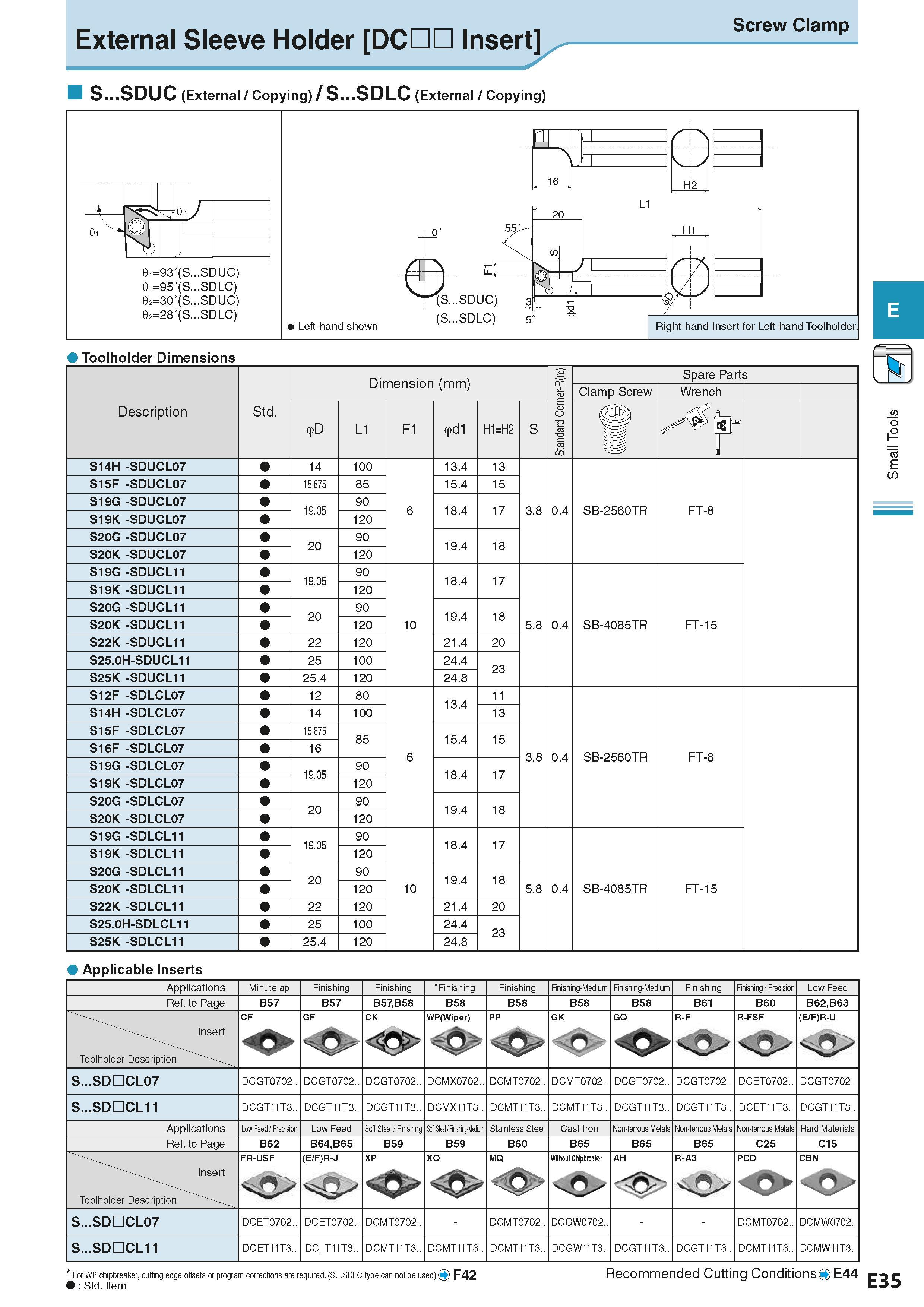

External Sleeve Holder DC££ Insert Screw Clamp S...SDUC (External / Copying) / S...SDLC (External / Copying) Toolholder Dimensions Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Description Обозначение инструмента для заказа Std. 9D L1 F1 d1 H1=H2 S u (% = S14H -SDUCL07 14 100 13.4 13 S15F -SDUCL07 15.875 85 15.4 15 S19G -SDUCL07 19.05 90 6 18.4 17 3.8 0.4 SB-2560TR FT-8 S19K -SDUCL07 120 S20G -SDUCL07 20 90 19.4 18 S20K -SDUCL07 120 S19G -SDUCL11 19.05 90 18.4 17 S19K -SDUCL11 120 S20G -SDUCL11 20 90 19.4 18 S20K -SDUCL11 120 10 5.8 0.4 SB-4085TR FT-15 S22K -SDUCL11 22 120 21.4 20 S25.0H-SDUCL11 25 100 24.4 23 S25K -SDUCL11 25.4 120 24.8 S12F -SDLCL07 12 80 13.4 11 S14H -SDLCL07 14 100 13 S15F -SDLCL07 15.875 85 15.4 15 S16F -SDLCL07 16 6 3.8 0.4 SB-2560TR FT-8 S19G -SDLCL07 19.05 90 18.4 17 S19K -SDLCL07 120 S20G -SDLCL07 20 90 19.4 18 S20K -SDLCL07 120 S19G -SDLCL11 19.05 90 18.4 17 S19K -SDLCL11 120 S20G -SDLCL11 20 90 19.4 18 S20K -SDLCL11 120 10 5.8 0.4 SB-4085TR FT-15 S22K -SDLCL11 22 120 21.4 20 S25.0H-SDLCL11 25 100 24.4 23 S25K -SDLCL11 25.4 120 24.8 w o £ E Applicable Inserts Applications Minute ap Finishing Finishing “Finishing Finishing Finishing-Medium Finishing-Medium Finishing Finishing Precision Low Feed Ref. to Page B57 B57 B57,B58 B58 B58 B58 B58 B61 B60 B62,B63 Insert Toolholder Description CF GF CK WP(Wiper) PP GK GQ R-F R-FSF (E/F)R-U S...SD£CL07 DCGT0702.. DCGT0702.. DCGT0702.. DCMX0702.. DCMT0702.. DCMT0702.. DCGT0702.. DCGT0702.. DCET0702.. DCGT0702.. S...SD£CL11 DCGT11T3.. DCGT11T3.. DCGT11T3.. DCMX11T3.. DCMT11T3.. DCMT11T3.. DCGT11T3.. DCGT11T3.. DCET11T3.. DCGT11T3.. Applications Low Feed / Precision Low Feed Soft Steel / Rnishing Sot Steel / Finishing-Medium Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B62 B64,B65 B59 B59 B60 B65 B65 B65 C25 C15 Insert Toolholder Description FR-USF (E/F)R-J XP XQ MQ Without Chipbreaker AH R-A3 PCD CBN S...SD£CL07 DCET0702.. DCET0702.. DCMT0702.. - DCMT0702.. DCGW0702.. DCMT0702.. DCMW0702.. S...SD£CL11 DCET11T3.. DC T11T3.. DCMT11T3.. DCMT11T3.. DCMT11T3.. DCGW11T3.. DCGT11T3.. DCGT11T3.. DCMT11T3.. DCMW11T3.. For WP chipbreaker, cutting edge offsets or program corrections are required. (S...SDLC type can not be used) O F42 Std. Item Recommended Cutting ConditionsO E44 E35
