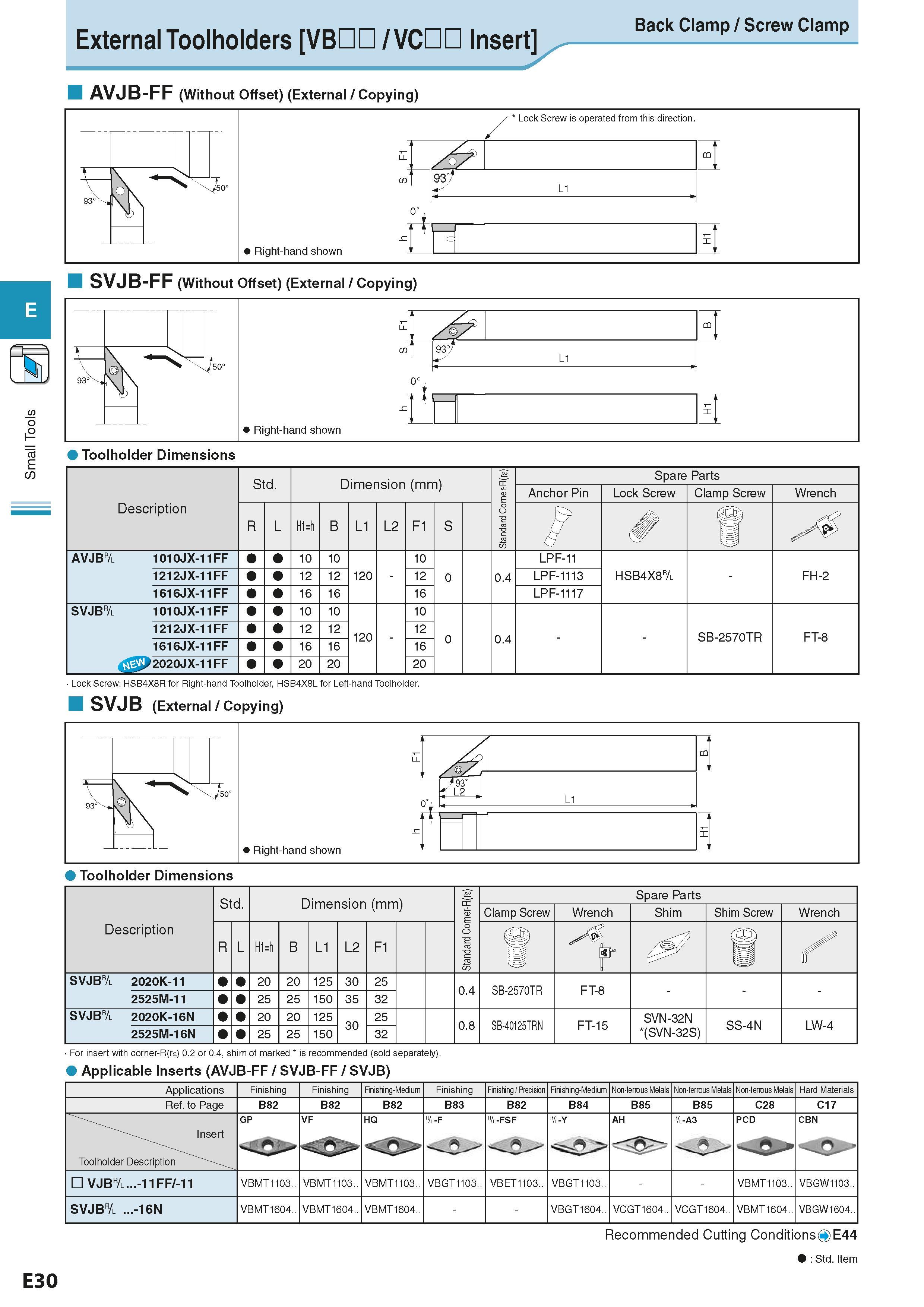

External Toolholders VB££ / VC Insert AVJB-FF (Without Offset) (External / Copying) Back Clamp / Screw Clamp SVJB-FF (Without Offset) (External / Copying) Toolholder Dimensions Std. Dimension (mm) Размеры инструмента указаны в мм Standard Comer-R(re) Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench Description R L H1=h B L1 L2 F1 S iggBfi.) AVJB& 1010JX-11FF 10 10 10 LPF-11 1212JX-11FF 12 12 120 - 12 0 0.4 LPF-1113 HSB4X8& - FH-2 1616JX-11FF 16 16 16 LPF-11 7 SVJB& 1010JX-11FF 10 10 10 1212JX-11FF 12 12 120 12 0 0.4 SB-2570TR FT-8 1616JX-11FF 16 16 16 2020JX-11FF 20 20 20 Lock Screw: HSB4X8R for Right-hand Toolholder, HSB4X8L for Left-hand Toolholder. SVJB (External / Copying) Toolholder Dimensions Std. Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench Shim Shim Screw Wrench Description R L H1=h B L1 L2 F1 r f SVJB& 2020K-11 20 20 125 30 25 0.4 SB-2570TR FT-8 2525M-11 25 25 150 35 32 SVJB& 2020K-16N 20 20 125 30 25 0.8 SB-40125TRN FT-15 SVN-32N SS-4N LW-4 2525M-16N 25 25 150 32 (SVN-32S) For insert with corner-R(r&) 0.2 or 0.4, shim of marked is recommended (sold separately). Applicable Inserts (AVJB-FF / SVJB-FF / SVJB) Applications Finishing Finishing Finishing-Medium Finishing Finishing / Precision Finishing-Medium Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B82 B82 B82 B83 B82 B84 B85 B85 C28 C17 Insert Toolholder Description GP VF HQ r/l-F r/l-FSF r/l-Y AH r/l-A3 PCD CBN VJB&...-11FF/-11 VBMT1103.. VBMT1103.. VBMT1103.. VBGT1103.. VBET1103.. VBGT1103.. VBMT1103.. VBGW1103.. SVJB& ...-16N VBMT1604.. VBMT1604.. VBMT1604.. VBGT1604.. VCGT1604.. VCGT1604.. VBMT1604.. VBGW1604.. Recommended Cutting ConditionsO E44 Std. Item E30 E
