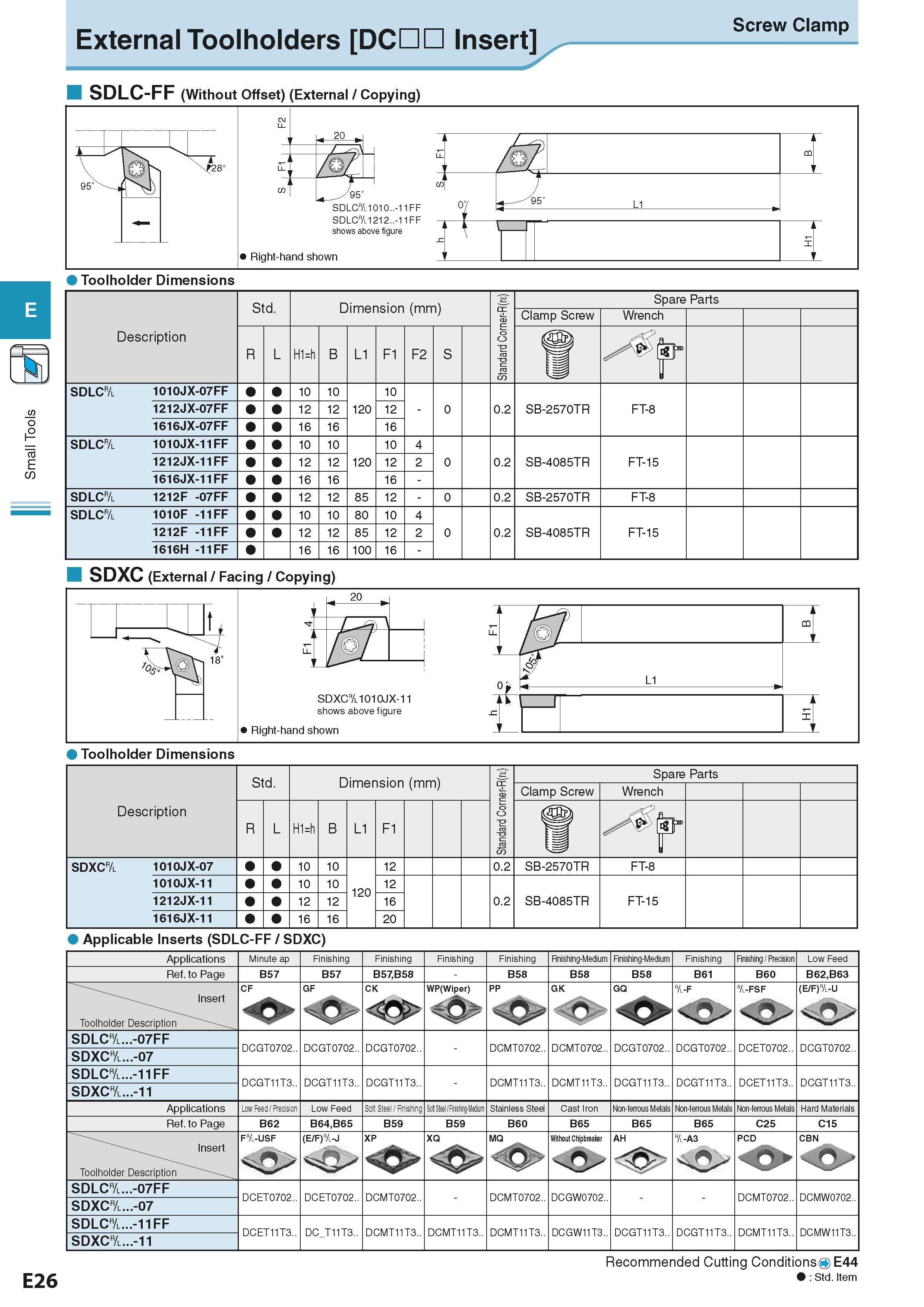

External Toolholders DCIHD Insert SDLC-FF (Without Offset) (External / Copying) Screw Clamp Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench R L H1=h B L1 F1 F2 S u SDLC& 1010JX-07FF 10 10 120 10 - 0 0.2 SB-2570TR FT-8 1212JX-07FF 12 12 12 1616JX-07FF 16 16 16 SDLC& 1010JX-11FF 10 10 120 10 4 0 0.2 SB-4085TR FT-15 1212JX-11FF 12 12 12 2 1616JX-11FF 16 16 16 - SDLC& 1212F -07FF 12 12 85 12 - 0 0.2 SB-2570TR FT-8 SDLC& 1010F -11FF 10 10 80 10 4 0 0.2 SB-4085TR FT-15 1212F -11 FF 12 12 85 12 2 1616H -11 FF 16 16 100 16 - SDXC (External / Facing / Copying) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(re) Spare Parts Clamp Screw Wrench R L H1=h B L1 F1 ijD” SDXC& 1010JX-07 10 10 120 12 0.2 SB-2570TR FT-8 1010JX-11 10 10 12 0.2 SB-4085TR FT-15 1212JX-11 12 12 16 1616JX-11 16 16 20 Applicable Inserts (SDLC-FF / SDXC) Applications Minute ap Finishing Finishing Finishing Finishing Rnishing-Medium Finishing-Medium Finishing Finishing / Precision Low Feed Ref. to Page B57 B57 B57,B58 B58 B58 B58 B61 B60 B62,B63 Insert Toolholder Description CF GF CK WP(Wiper) PP GK -O- GQ &-F &-FSF (E/F)&-U SDLC&...-07FF DCGT0702.. DCGT0702.. DCGT0702.. - DCMT0702.. DCMT0702.. DCGT0702.. DCGT0702.. DCET0702.. DCGT0702.. SDXC&...-07 SDLC&...-11FF DCGT11T3.. DCGT11T3.. DCGT11T3.. - DCMT11T3.. DCMT11T3.. DCGT11T3.. DCGT11T3.. DCET11T3.. DCGT11T3.. SDXC&...-11 Applications Low Feed / Precision Low Feed Soft Steel / Rnishing Sot Steel / Finishing-Medium Stainless Steel Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Ref. to Page B62 B64,B65 B59 B59 B60 B65 B65 B65 C25 C15 Insert Toolholder Description F&-USF (E/F)&-J XP O XQ MQ Without Chipbreaker AH &-A3 PCD o CBN SDLC&...-07FF DCET0702.. DCET0702.. DCMT0702.. - DCMT0702.. DCGW0702.. DCMT0702.. DCMW0702.. SDXC&...-07 SDLC&...-11FF DCET11T3.. DC T11T3.. DCMT11T3.. DCMT11T3.. DCMT11T3.. DCGW11T3.. DCGT11T3.. DCGT11T3.. DCMT11T3.. DCMW11T3.. SDXC&...-11 Recommended Cutting ConditionsO E44 Std. Item
