182 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.D8

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. D8 0182 Lab2u

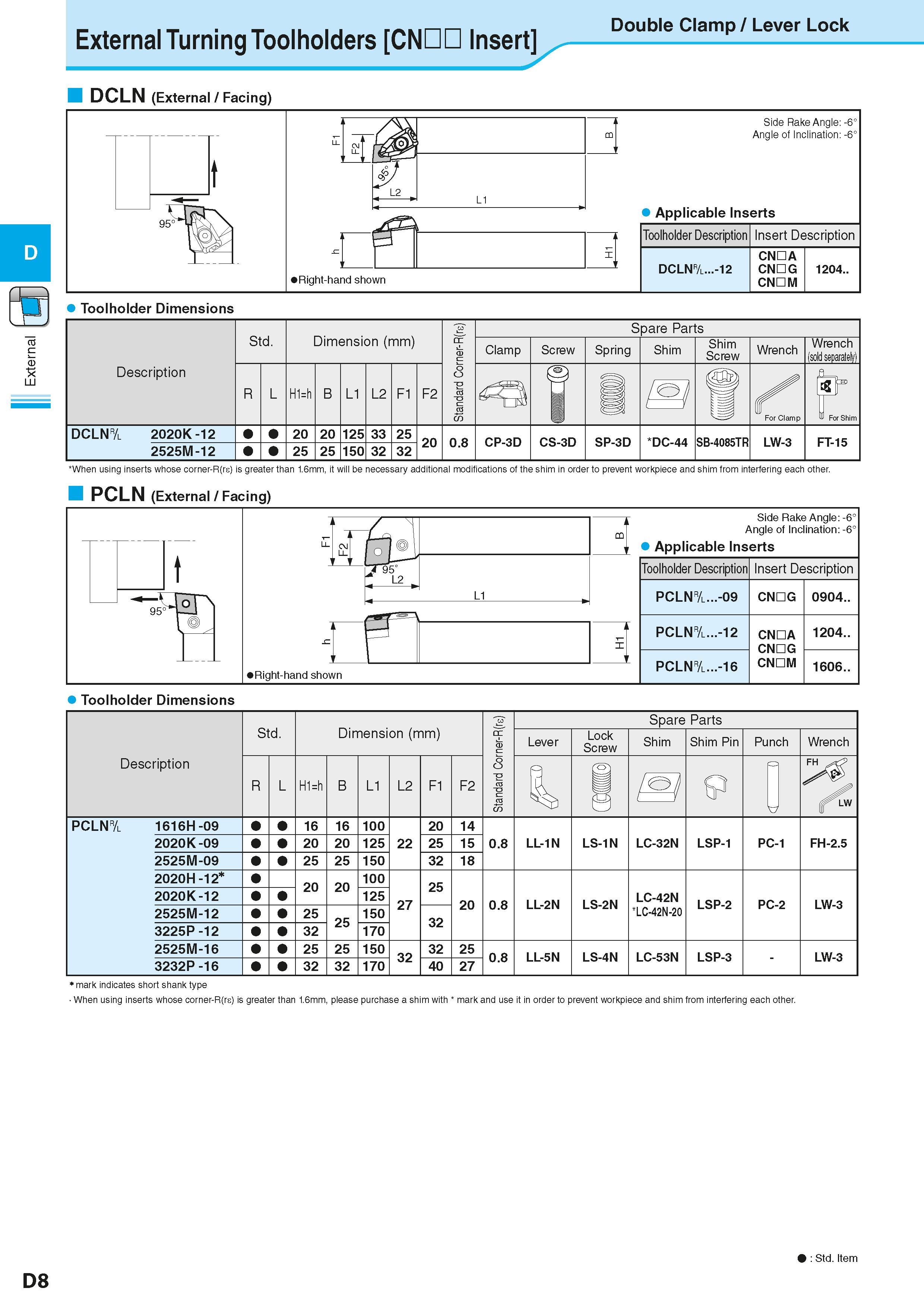

External External Turning Toolholders CNDD Insert Double Clamp 1 Lever Lock DCLN (External / Facing) When using inserts whose corner-R(rs) is greater than 1.6mm, it will be necessary additional modifications of the shim in order to prevent workpiece and shim from interfering each other. PCLN (External / Facing) Toolholder Dimensions When using inserts whose corner-R(rs) is greater than 1.6mm, please purchase a shim with mark and use it in order to prevent workpiece and shim from interfering each other. D8 Std. Item
