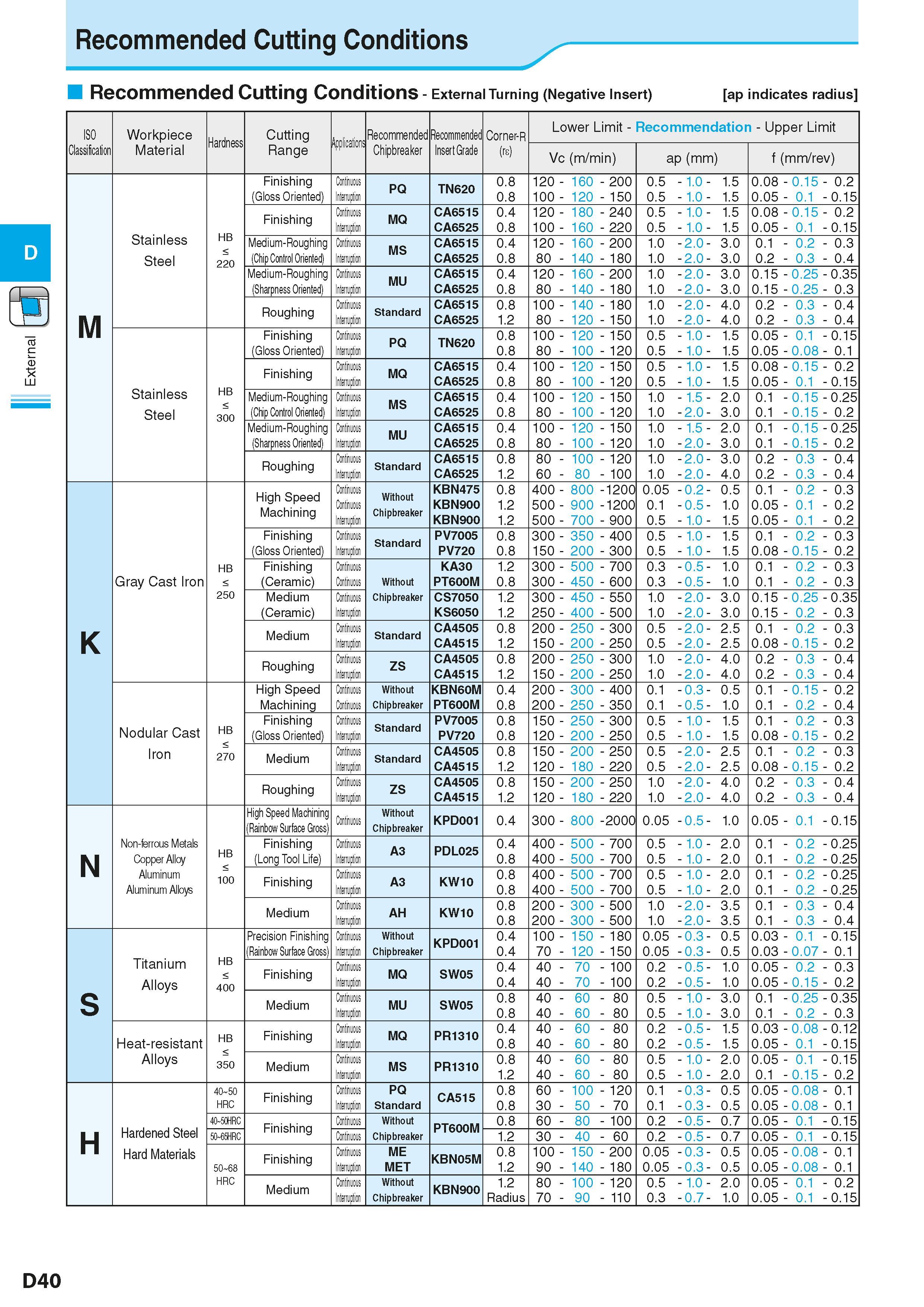

Recommended Cutting Conditions Recommended Cutting Conditions - External Turning (Negative Insert) ap indicates radius ISO Classitcation Workpiece Material Hardness Cutting Range Applications Recommended Chipbreaker Recommendec Insert Grade Corner-R (re) Lower Limit - Recommendation - Upper Limit Vc (m/min) ap (mm) f (mm/rev) M Stainless Steel HB < 220 Finishing (Gloss Oriented) Continuous Intemption PQ TN620 0.8 0.8 120 - 160 - 200 100 - 120 - 150 0.5 -1.C- 1.5 0.5 -1.0- 1.5 0.08 - 0.15 - 0.2 0.05 - 0.1 -0.15 Finishing Continuous Intemption MQ CA6515 CA6525 0.4 0.8 120 - 180 - 240 100 - 160 - 220 0.5 -1.0- 1.5 0.5 -1.0- 1.5 0.08 - 0.15 - 0.2 0.05 - 0.1 -0.15 Medium-Roughing (Chip Control Oriented) Continuous Intemption MS CA6515 CA6525 0.4 0.8 120 - 160 - 200 80 - 140 - 180 1.0 -2.0- 3.0 1.0 -2.0- 3.0 0.1 - 0.2 - 0.3 0.2 - 0.3 - 0.4 Medium-Roughing (Sharpness Oriented) Continuous Intemption MU CA6515 CA6525 0.4 0.8 120 - 160 - 200 80 - 140 - 180 1.0 -2.0- 3.0 1.0 -2.0- 3.0 0.15 -0.25-0.35 0.15 -0.25 - 0.3 Roughing Continuous Intemption Standard CA6515 CA6525 0.8 1.2 100 - 140 - 180 80 - 120 - 150 1.0 -2.0- 4.0 1.0 -2.0- 4.0 0.2 - 0.3 - 0.4 0.2 - 0.3 - 0.4 Stainless Steel HB < 300 Finishing (Gloss Oriented) Continuous Intemption PQ TN620 0.8 0.8 100 - 120 - 150 80 - 100 - 120 0.5 -1.0- 1.5 0.5 -1.0- 1.5 0.05 - 0.1 -0.15 0.05 -0.08 - 0.1 Finishing Continuous Intemption MQ CA6515 CA6525 0.4 0.8 100 - 120 - 150 80 - 100 - 120 0.5 -1.0- 1.5 0.5 -1.0- 1.5 0.08 - 0.15 - 0.2 0.05 - 0.1 -0.15 Medium-Roughing (Chip Control Oriented) Continuous Intemption MS CA6515 CA6525 0.4 0.8 100 - 120 - 150 80 - 100 - 120 1.0 - 1.5- 2.0 1.0 -2.0- 3.0 0.1 -0.15-0.25 0.1 - 0.15 - 0.2 Medium-Roughing (Sharpness Oriented) Continuous Intemption MU CA6515 CA6525 0.4 0.8 100 - 120 - 150 80 - 100 - 120 1.0 - 1.5- 2.0 1.0 -2.0- 3.0 0.1 -0.15-0.25 0.1 - 0.15 - 0.2 Roughing Continuous Intemption Standard CA6515 CA6525 0.8 1.2 80 - 100 - 120 60 - 80 - 100 1.0 -2.0- 3.0 1.0 -2.0- 4.0 0.2 - 0.3 - 0.4 0.2 - 0.3 - 0.4 K Gray Cast Iron HB < 250 High Speed Machining Continuous Continuous Intemption Without Chipbreaker KBN475 KBN900 KBN900 0.8 1.2 1.2 400 - 800 -1200 500 - 900 -1200 500 - 700 - 900 0.05 -0.2- 0.5 0.1 -0.5- 1.0 0.5 -1.0- 1.5 0.1 - 0.2 - 0.3 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing (Gloss Oriented) Continuous Intemption Standard PV7005 PV720 0.8 0.8 300 - 350 - 400 150 - 200 - 300 0.5 -1.0- 1.5 0.5 -1.0- 1.5 0.1 - 0.2 - 0.3 0.08 - 0.15 - 0.2 Finishing (Ceramic) Continuous Continuous Without Chipbreaker KA30 PT600M 1.2 0.8 300 - 500 - 700 300 - 450 - 600 0.3 -0.5- 1.0 0.3 -0.5- 1.0 0.1 - 0.2 - 0.3 0.1 - 0.2 - 0.3 Medium (Ceramic) Continuous Intemption CS7050 KS6050 1.2 1.2 300 - 450 - 550 250 - 400 - 500 1.0 -2.0- 3.0 1.0 -2.0- 3.0 0.15 -0.25-0.35 0.15 - 0.2 - 0.3 Medium Continuous Intemption Standard CA4505 CA4515 0.8 1.2 200 - 250 - 300 150 - 200 - 250 0.5 -2.0- 2.5 0.5 -2.0- 2.5 0.1 - 0.2 - 0.3 0.08 - 0.15 - 0.2 Roughing Continuous Intemption ZS CA4505 CA4515 0.8 1.2 200 - 250 - 300 150 - 200 - 250 1.0 -2.0- 4.0 1.0 -2.0- 4.0 0.2 - 0.3 - 0.4 0.2 - 0.3 - 0.4 Nodular Cast Iron HB < 270 High Speed Machining Continuous Continuous Without Chipbreaker KBN60M PT600M 0.4 0.8 200 - 300 - 400 200 - 250 - 350 0.1 -0.3- 0.5 0.1 -0.5- 1.0 0.1 - 0.15 - 0.2 0.1 - 0.2 - 0.4 Finishing (Gloss Oriented) Continuous Intemption Standard PV7005 PV720 0.8 0.8 150 - 250 - 300 120 - 200 - 250 0.5 -1.0- 1.5 0.5 -1.0- 1.5 0.1 - 0.2 - 0.3 0.08 - 0.15 - 0.2 Medium Continuous Intemption Standard CA4505 CA4515 0.8 1.2 150 - 200 - 250 120 - 180 - 220 0.5 -2.0- 2.5 0.5 -2.0- 2.5 0.1 - 0.2 - 0.3 0.08 - 0.15 - 0.2 Roughing Continuous Intemption ZS CA4505 CA4515 0.8 1.2 150 - 200 - 250 120 - 180 - 220 1.0 -2.0- 4.0 1.0 -2.0- 4.0 0.2 - 0.3 - 0.4 0.2 - 0.3 - 0.4 N Non-ferrous Metals Copper Alloy Aluminum Aluminum Alloys HB < 100 High Speed Machining (Rainbow Surface Gross) Continuous Without Chipbreaker KPD001 0.4 300 - 800 -2000 0.05 -0.5- 1.0 0.05 - 0.1 -0.15 Finishing (Long Tool Life) Continuous Intemption A3 PDL025 0.4 0.8 400 - 500 - 700 400 - 500 - 700 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.1 - 0.2 -0.25 0.1 - 0.2 -0.25 Finishing Continuous Intemption A3 KW10 0.8 0.8 400 - 500 - 700 400 - 500 - 700 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.1 - 0.2 -0.25 0.1 - 0.2 -0.25 Medium Continuous Intemption AH KW10 0.8 0.8 200 - 300 - 500 200 - 300 - 500 1.0 -2.0- 3.5 1.0 -2.0- 3.5 0.1 - 0.3 - 0.4 0.1 - 0.3 - 0.4 S Titanium Alloys HB < 400 Precision Finishing (Rainbow Surface Gross) Continuous Intemption Without Chipbreaker KPD001 0.4 0.4 100 - 150 - 180 70 - 120 - 150 0.05 -0.3- 0.5 0.05 -0.3- 0.5 0.03 - 0.1 -0.15 0.03 -0.07 - 0.1 Finishing Continuous Intemption MQ SW05 0.4 0.4 40 - 70 - 100 40 - 70 - 100 0.2 -0.5- 1.0 0.2 -0.5- 1.0 0.05 - 0.2 - 0.3 0.05 - 0.15 - 0.2 Medium Continuous Intemption MU SW05 0.8 0.8 40 - 60 - 80 40 - 60 - 80 0.5 - 1.0 - 3.0 0.5 - 1.0 - 3.0 0.1 -0.25-0.35 0.1 - 0.2 - 0.3 Heat-resistant Alloys HB < 350 Finishing Continuous Intemption MQ PR1310 0.4 0.8 40 - 60 - 80 40 - 60 - 80 0.2 -0.5- 1.5 0.2 -0.5- 1.5 0.03 -0.08 -0.12 0.05 - 0.1 -0.15 Medium Continuous Intemption MS PR1310 0.8 1.2 40 - 60 - 80 40 - 60 - 80 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.05 - 0.1 -0.15 0.1 - 0.15 - 0.2 H Hardened Steel Hard Materials 40-50 HRC Finishing Continuous Intemption PQ Standard CA515 0.8 0.8 60 - 100 - 120 30 - 50 - 70 0.1 -0.3- 0.5 0.1 -0.3- 0.5 0.05 -0.08 - 0.1 0.05 -0.08 - 0.1 40-50 Finishing Continuous Without Chipbreaker PT600M 0.8 60 - 80 - 100 0.2 -0.5- 0.7 0.05 - 0.1 -0.15 50-65 Continuous 1.2 30 - 40 - 60 0.2 -0.5- 0.7 0.05 - 0.1 -0.15 50-68 HRC Finishing Continuous Intemption ME MET KBN05M 0.8 1.2 100 - 150 - 200 90 - 140 - 180 0.05 -0.3- 0.5 0.05 -0.3- 0.5 0.05 -0.08 - 0.1 0.05 -0.08 - 0.1 Medium Continuous Intemption Without Chipbreaker KBN900 1.2 Radius 80 - 100 - 120 70 - 90 - 110 0.5 - 1.0 - 2.0 0.3 -0.7- 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 -0.15 D40
