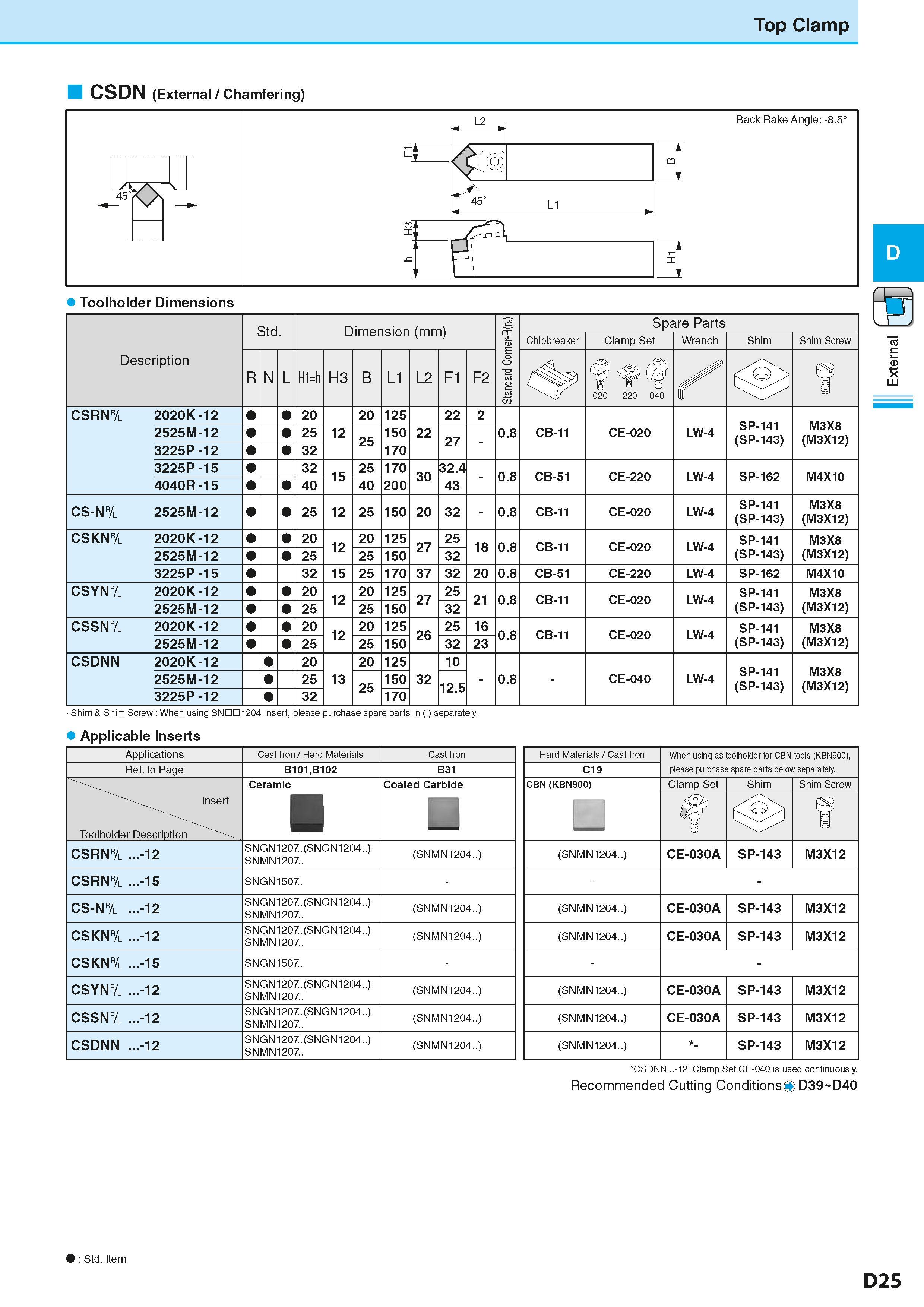

Top Clamp CSDN (External / Chamfering) Back Rake Angle: -8.5° Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм C CD nr or C d n at Spare Parts Chipbreaker Clamp Set Wrench Shim Shim Screw R N L H1=h H3 B Li L2 F1 F2 220 040 s f CSRN& 2020K -12 20 12 20 125 22 22 2 0.8 CB-11 CE-020 LW-4 SP-141 (SP-143) M3X8 (M3X12) 2525M -12 25 25 150 27 - 3225P -12 32 170 3225P -15 32 15 25 170 30 32.4 - 0.8 CB-51 CE-220 LW-4 SP-162 M4X10 4040R -15 40 40 200 43 CS-N& 2525M -12 25 12 25 150 20 32 - 0.8 CB-11 CE-020 LW-4 SP-141 (SP-143) M3X8 (M3X12) CSKN& 2020K -12 20 12 20 125 27 25 18 0.8 CB-11 CE-020 LW-4 SP-141 (SP-143) M3X8 (M3X12) 2525M -12 25 25 150 32 3225P -15 32 15 25 170 37 32 20 0.8 CB-51 CE-220 LW-4 SP-162 M4X10 CSYN& 2020K -12 20 12 20 125 27 25 21 0.8 CB-11 CE-020 LW-4 SP-141 (SP-143) M3X8 (M3X12) 2525M -12 25 25 150 32 CSSN& 2020K -12 20 12 20 125 26 25 16 0.8 CB-11 CE-020 LW-4 SP-141 (SP-143) M3X8 (M3X12) 2525M -12 25 25 150 32 23 CSDNN 2020K -12 20 13 20 125 32 10 - 0.8 - CE-040 LW-4 SP-141 (SP-143) M3X8 (M3X12) 2525M -12 25 25 150 12.5 3225P -12 32 170 fl LU D Shim & Shim Screw When using SNnni204 Insert, please purchase spare parts in ( ) separately. Applicable Inserts Applications Cast Iron / Hard Materials Cast Iron Ref. to Page B101,B102 B31 Insert Toolholder Description Ceramic Coated Carbide CSRN& ...-12 SNGN1207..(SNGN1204..) SNMN1207. (SNMN1204..) CSRN& ...-15 SNGN1507.. - CS-N& ...-12 SNGN1207..(SNGN1204..) SNMN1207.. (SNMN1204..) CSKN& ...-12 SNGN1207..(SNGN1204..) SNMN1207. (SNMN1204..) CSKN& ...-15 SNGN1507. - CSYN& ...-12 SNGN1207..(SNGN1204..) SNMN1207. (SNMN1204..) CSSN& ...-12 SNGN1207.(SNGN1204..) SNMN1207. (SNMN1204..) CSDNN ...-12 SNGN1207..(SNGN1204..) SNMN1207. (SNMN1204..) Hard Materials / Cast Iron When using as toolholder for CBN tools (KBN900), please purchase spare parts below separately. C19 CBN (KBN900) Clamp Set Shim Shim Screw f f (SNMN1204..) CE-030A SP-143 M3X12 (SNMN1204..) CE-030A SP-143 M3X12 (SNMN1204..) CE-030A SP-143 M3X12 (SNMN1204..) CE-030A SP-143 M3X12 (SNMN1204..) CE-030A SP-143 M3X12 (SNMN1204..) - SP-143 M3X12 CSDNN...-12: Clamp Set CE-040 is used continuously. Recommended Cutting ConditionsO D39 D40 Std. Item D25
