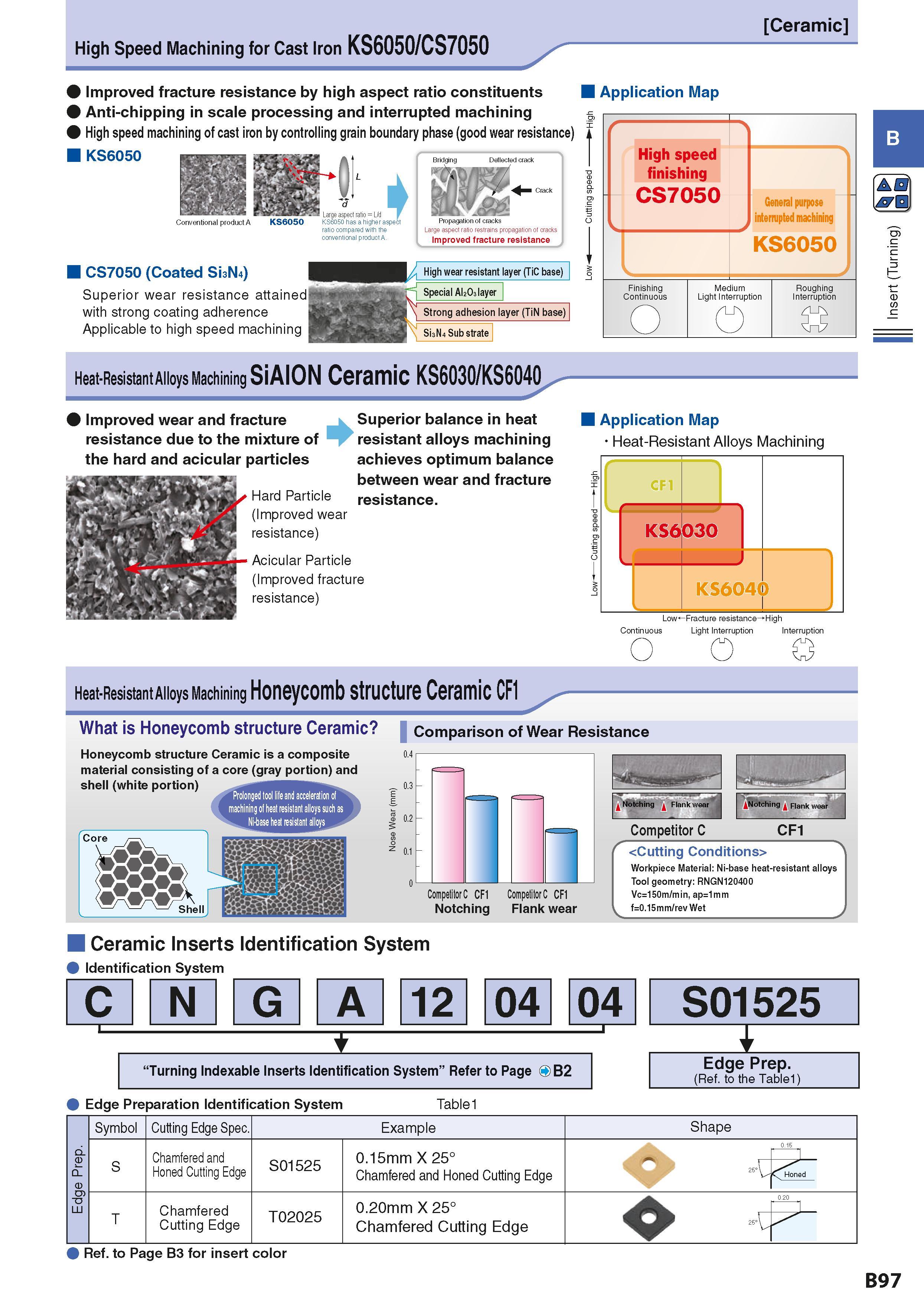

High Speed Machining for Cast Iron KS6050/CS7050 Ceramic Improved fracture resistance by high aspect ratio constituents Application Map Anti-chipping in scale processing and interrupted machining High speed machining of cast iron by controlling grain boundary phase (good wear resistance) KS6050 Conventional product A Large aspect ratio = L/d KS6050 has a higher aspe> ratio compared with the conventional product A. CS7050 (Coated Si3N4) Superior wear resistance attained with strong coating adherence Applicable to high speed machining High wear resistant layer (TiC base) Special Allayer Strong adhesion layer (TiN base) v Si3N4 Sub strate i r 1 High speed 1 finishing - CS7050 General purpose Interrupted machining KS6050 Finishing Continuous Medium Light Interruption Roughing Interruption Heat-Resistant Alloys Machining SiAlON Ceramic KS6030/KS6040 Improved wear and fracture resistance due to the mixture of the hard and acicular particles Superior balance in heat resistant alloys machining Application Map Heat-Resistant Alloys Machining Hard Particle (Improved wear resistance) Acicular Particle (Improved fracture resistance) achieves optimum balance between wear and fracture resistance. Low Fracture resistance High Continuous Light Interruption Interruption Heat-Resistant Alloys Machining Honeycomb structure Ceramic CF1 What is Honeycomb structure Ceramic Comparison of Wear Resistance Honeycomb structure Ceramic is a composite material consisting of a core (gray portion) and shell (white portion) Competitor C CF1 Notching Flank wear \ Workpiece Material: Ni-base heat-resistant alloys Tool geometry: RNGN120400 Vc=150m/min, ap=1mm V f=0.15mm/rev Wet J Ceramic Inserts Identification System Identification System C N G A 12 04 04 “Turning Indexable Inserts Identification System” Refer to Page OB2 S01525 I Edge Prep. (Ref. to the Tablel) Edge Preparation Identification System Table1 Symbol Cutting Edge Spec. Chamfered and Honed Cutting Edge Chamfered Cutting Edge Example S01525 T02025 0.15mm X 25° Chamfered and Honed Cutting Edge 0.20mm X 25° Chamfered Cutting Edge Shape Ref. to Page B3 for insert color L KS6050 J.1E S T B97
