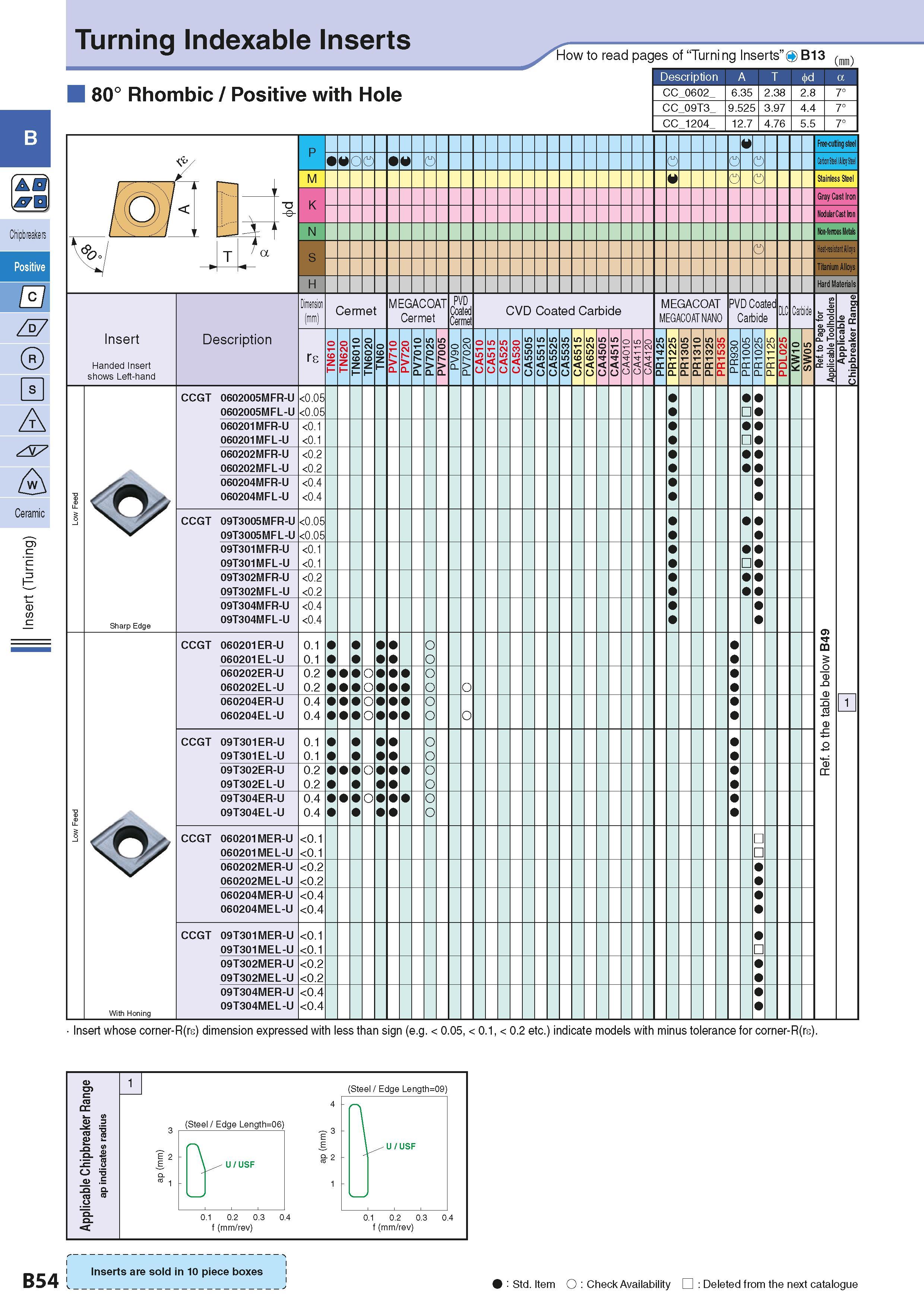

Turning Indexable Inserts How to read pages of “Turning Inserts”O B13 (mm) 80° Rhombic / Positive with Hole Description A T 1 \ T Insert Handed Insert shows Left-hand Sharp Edge With Honing Description CCGT 0602005MFR-U 0602005MFL-U <0.05 <0.05 060201MFR-U 060201MFL-U 060202MFR-U 060202MFL-U 060204MFR-U 060204MFL-U CCGT 09T3005MFR-U 09T3005MFL-U <0.05 <0.05 09T301MFR-U 09T301MFL-U 09T302MFR-U 09T302MFL-U 09T304MFR-U 09T304MFL-U CCGT 060201ER-U 060201EL-U 060202ER-U 060202EL-U 060204ER-U 060204EL-U CCGT 09T301ER-U 09T301EL-U 09T302ER-U 09T302EL-U 09T304ER-U 09T304EL-U CCGT 060201MER-U 060201MEL-U 060202MER-U 060202MEL-U 060204MER-U 060204MEL-U CCGT 09T301MER-U 09T301MEL-U 09T302MER-U 09T302MEL-U 09T304MER-U 09T304MEL-U Dimension r e <0.1 <0.1 <0.2 <0.2 <0.4 <0.4 <0.1 <0.1 <0.2 <0.2 <0.4 <0.4 0.1 0.1 0.2 0.2 0.4 0.4 0.1 0.1 0.2 0.2 0.4 0.4 <0.1 <0.1 <0.2 <0.2 <0.4 <0.4 <0.1 <0.1 <0.2 <0.2 <0.4 <0.4 Q O Cermet Q MEGACOAT Cermet PVD Joatec Cermet CVD Coated Carbide CC 0602 CC 09T3 CC 1204 6.35 9.525 12.7 2.38 3.97 4.76 Q MEGACOAT MEGACOAT NANO PVD Coated Carbide Q DLC 4.4 5.5 7° 7° Carbide O OL I O JH Free-cutting steel Carbon Steel /Alloy Steel Stainless Steel Gray Cast Iron Nodular Cast Iron Heat-resistant Alloys Titanium Alloys Hard Materials m Insert whose corner-R(re) dimension expressed with less than sign (e.g. < 0.05, < 0.1, < 0.2 etc.) indicate models with minus tolerance for corner-R(re). B54 Inserts are sold in 10 piece boxes 9 Std. Item O CheckAvailability Deleted from the next catalogue a B H
