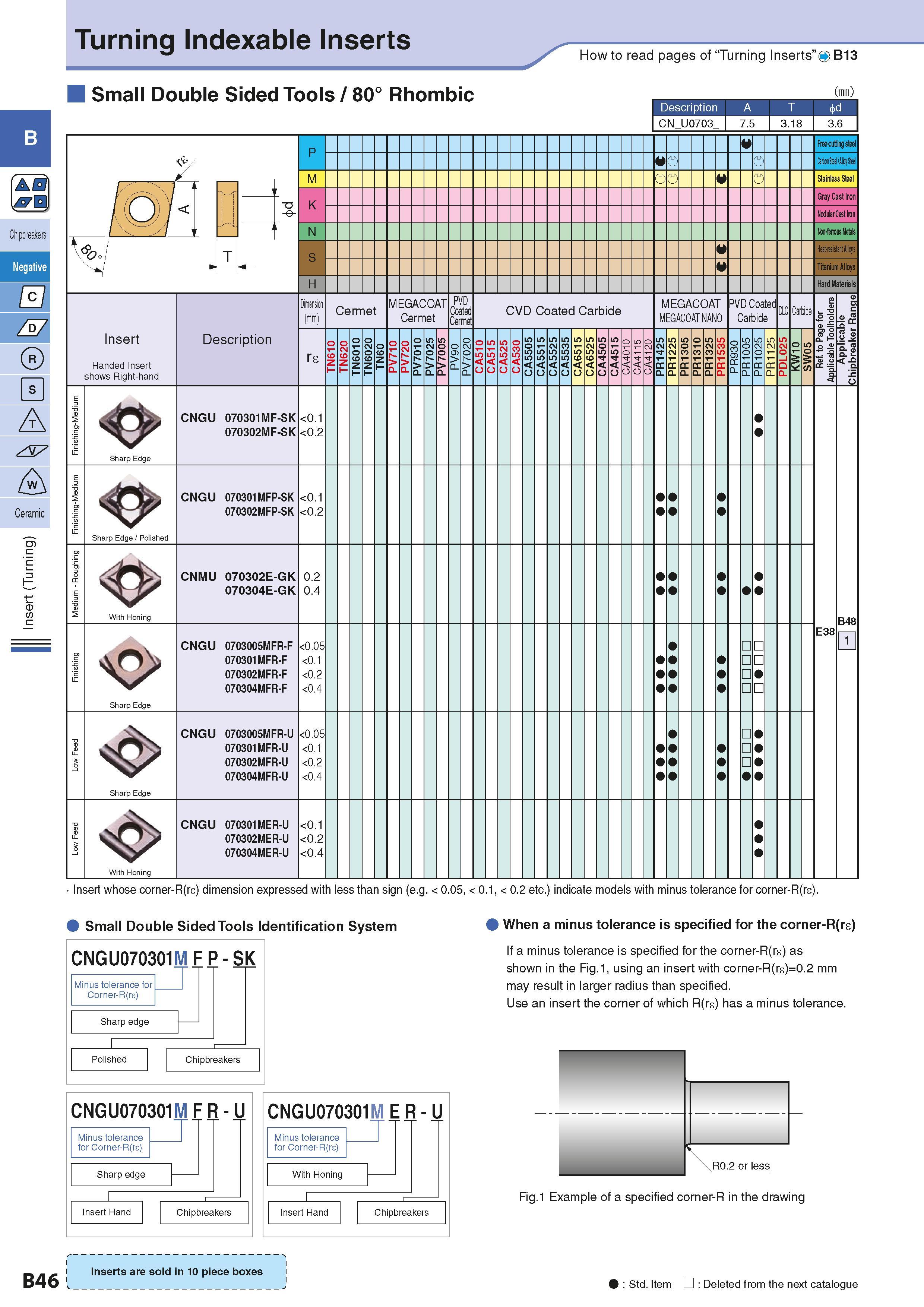

76 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.B46

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. B46 0076 Lab2u

Turning Indexable Inserts How to read pages of “Turning Inserts” 4 B13 Small Double Sided Tools / 80° Rhombic Description A T CN U0703 7.5 3.18 (m) 3.6 T M Q Free-cutting steel Carbon Steel /Alloy Steel Stainless Steel Gray Cast Iron Nodular Cast Iron Heat-resistant Alloys Titanium Alloys Hard Materials Insert Handed Insert shows Right-hand Dimension Cermet MEGACOAT Cermet PVD Joate. Cermet CVD Coated Carbide MEGACOAT MEGACOAT NANO PVD Coated Carbide DLC Carbide Description r e o Q. I o le CNGU 070301MF-SK 070302MF-SK <0.1 <0.2 CNGU 070301MFP-SK 070302MFP-SK <0.1 <0.2 Sharp Edge / Polished CNMU 070302E-GK 070304E-GK 0.2 0.4 E38 CNGU 0703005MFR-F 070301MFR-F 070302MFR-F 070304MFR-F <0.05 <0.1 <0.2 <0.4 B48 E CNGU 0703005MFR-U 070301MFR-U 070302MFR-U 070304MFR-U <0.05 <0.1 <0.2 <0.4 CNGU 070301MER-U 070302MER-U 070304MER-U <0.1 <0.2 <0.4 With Honing Insert whose corner-R(rs) dimension expressed with less than sign (e.g. < 0.05, < 0.1, < 0.2 etc.) indicate models with minus tolerance for corner-R(rs). Small Double Sided Tools Identification System CNGU070301M F P - S Minus tolerance for Corner-R(re) Sharp edge Polished Chipbreakers CNGU070301M F R - U Minus tolerance for Corner-R(re) Sharp edge CNGU070301M E Minus tolerance for Corner-R(re) With Honing R- U Chipbreakers Insert Hand Chipbreakers When a minus tolerance is specified for the corner-R(re) If a minus tolerance is specified for the corner-R(re) as shown in the Fig.1, using an insert with corner-R(re)=0.2 mm may result in larger radius than specified. Use an insert the corner of which R(re) has a minus tolerance. Fig.1 Example of a specified corner-R in the drawing B P K N S H Sharp Edge With Honing Sharp Edge Sharp Edge Insert Hand B46 Inserts are sold in 10 piece boxes Std. Item Deleted from the next catalogue
