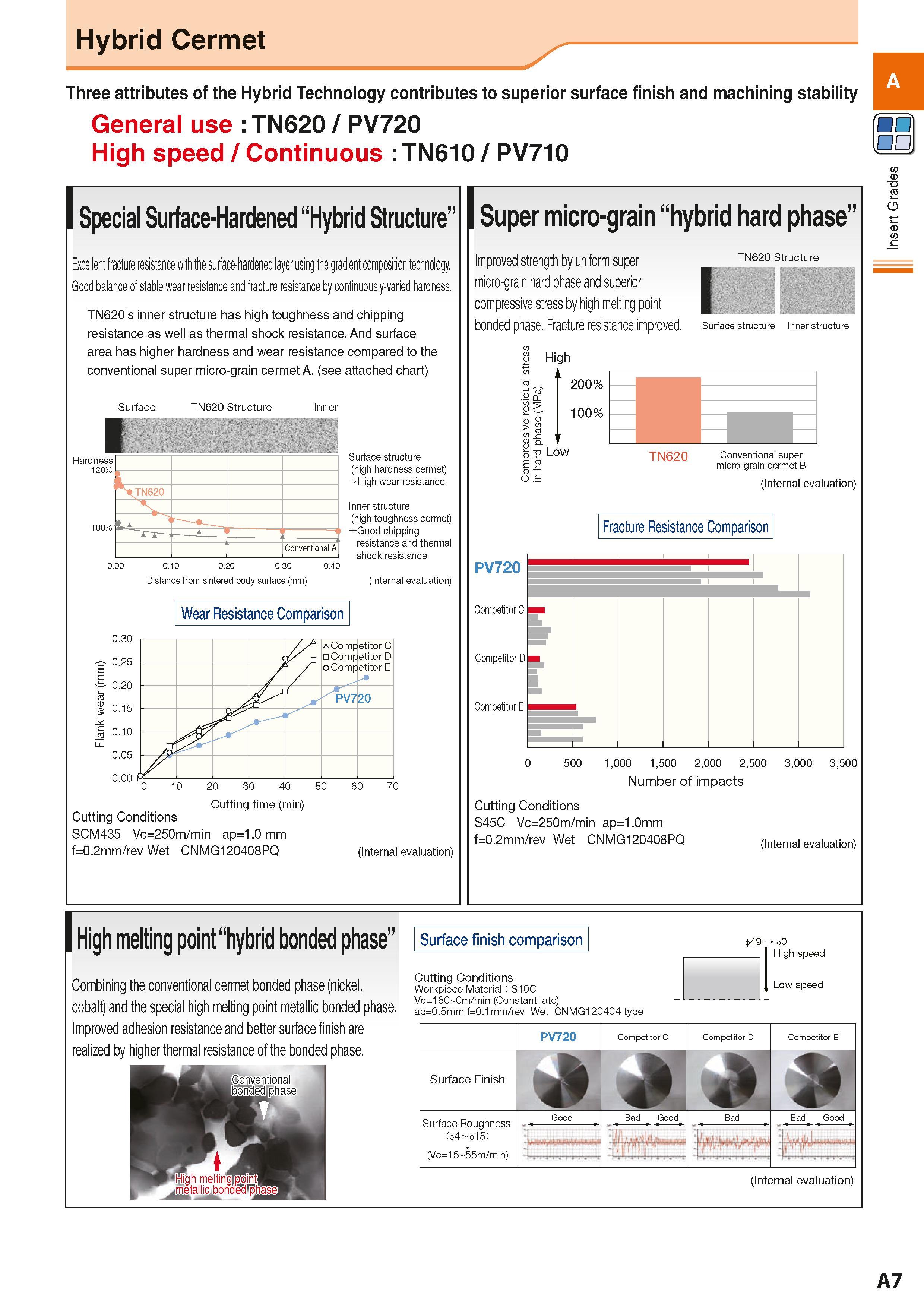

Hybrid Cermet Three attributes of the Hybrid Technology contributes to superior surface finish and machining stability General use TN620 / PV720 High speed / Continuous TN610 / PV710 Special Surface-Hardened “Hybrid Structure” Excellent fracture resistance with the surface-hardened layer using the gradient composition technology. Good balance of stable wear resistance and fracture resistance by continuously-varied hardness. TN620's inner structure has high toughness and chipping resistance as well as thermal shock resistance. And surface area has higher hardness and wear resistance compared to the conventional super micro-grain cermet A. (see attached chart) Surface TN620 Structure Inner ml Hardness 120% TN620 0.10 0.20 0.30 Distance from sintered body surface (mm) Surface structure (high hardness cermet) High wear resistance Inner structure (high toughness cermet) Good chipping resistance and thermal shock resistance (Internal evaluation) Wear Resistance Comparison 0.30 0.25 0.20 0.15 f 0.10 UL 0.05 0.00 pp mm oo CC < etitor C etitor D / / oComp etitor E PV7 20 V 10 20 30 40 50 Cutting time (min) 60 70 Cutting Conditions SCM435 Vc=250m/min ap=1.0 mm f=0.2mm/rev Wet CNMG120408PQ (Internal evaluation) Super micro-grain “hybrid hard phase” Improved strength by uniform super micro-grain hard phase and superior compressive stress by high melting point bonded phase. Fracture resistance improved. High TN620 Structure ;t f . t Surface structure Inner structure
