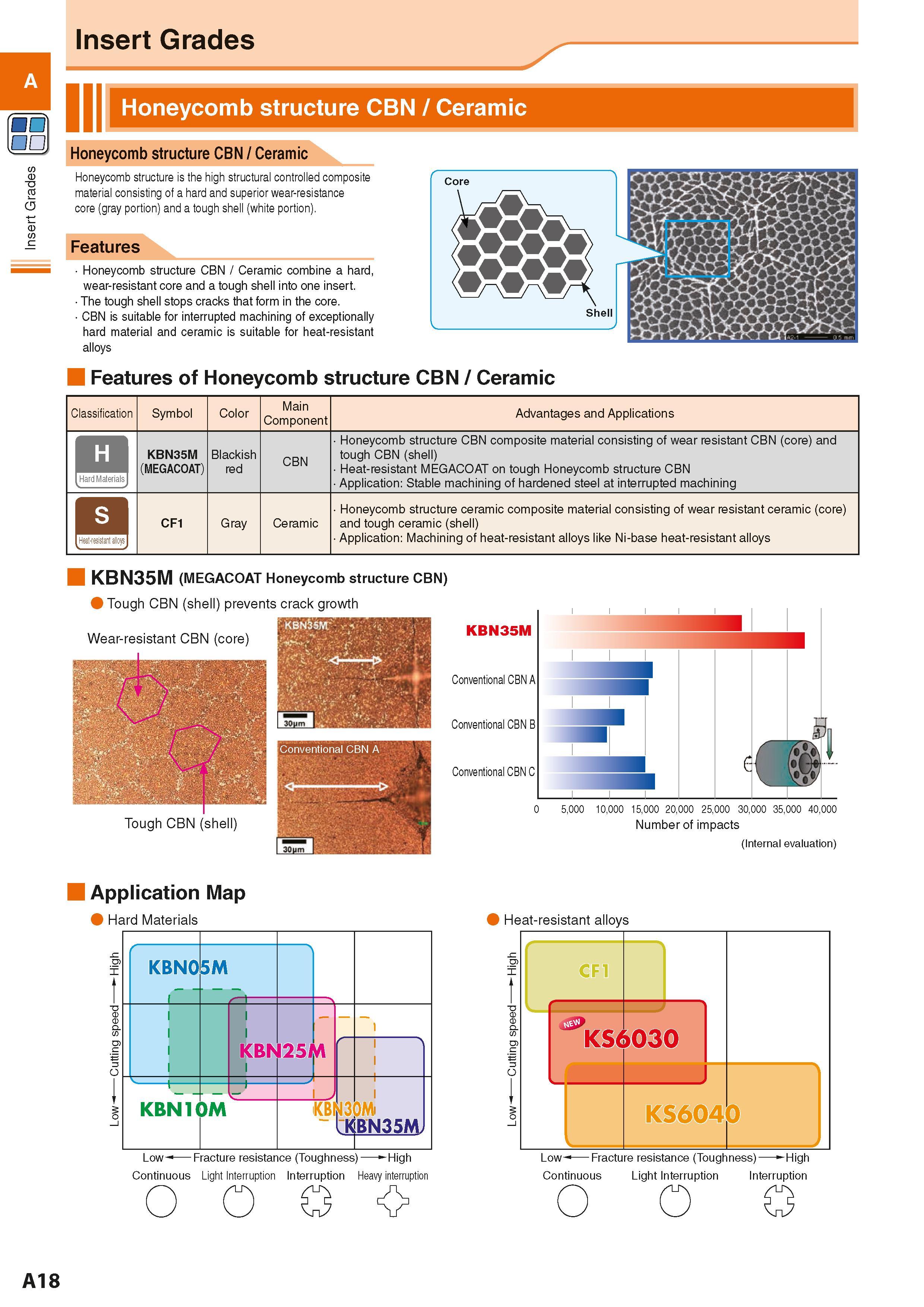

Insert Grades (SO Insert Grades Honeycomb structure CBN / Ceramic Honeycomb structure CBN / Ceramic Honeycomb structure is the high structural controlled composite material consisting of a hard and superior wear-resistance core (gray portion) and a tough shell (white portion). Features Honeycomb structure CBN / Ceramic combine a hard, wear-resistant core and a tough shell into one insert. The tough shell stops cracks that form in the core. CBN is suitable for interrupted machining of exceptionally hard material and ceramic is suitable for heat-resistant alloys Features of Honeycomb structure CBN / Ceramic Classification Symbol Color Main Component Advantages and Applications n KBN35M (MEGACOAT) Blackish red CBN Honeycomb structure CBN composite material consisting of wear resistant CBN (core) and tough CBN (shell) Heat-resistant mEgACOAT on tough Honeycomb structure CBN Application: Stable machining of hardened steel at interrupted machining 1 Hard Materials m CF1 Gray Ceramic Honeycomb structure ceramic composite material consisting of wear resistant ceramic (core) and tough ceramic (shell) 1 Heat-resistant alloys Application: Machining of heat-resistant alloys like Ni-base heat-resistant alloys Core Shell KBN35M Conventional CBN A Conventional CBN B Conventional CBN C 0 Tough CBN (shell) KBN35M (MEGACOAT Honeycomb structure CBN) Tough CBN (shell) prevents crack growth 5,000 10,000 15,000 20,000 25,000 30,000 35,000 40,000 Number of impacts (Internal evaluation) Application Map Hard Materials KBN0 KBN10M 5M KBN25 m KBN30 Ikj 0Mi BN35M Low Fracture resistance (Toughness) High Continuous Light Interruption Interruption Heavy interruption <> Heat-resistant alloys Low Fracture resistance (Toughness) High Continuous Light Interruption Interruption A18
