657 Каталог KYOCERA 2016 Металлорежущий инструмент для токарной обработки на станках Стр.R37

Каталог KYOCERA 2016 Токарные резцы с пластинами Стр. R37 0657 ENG Lab2u

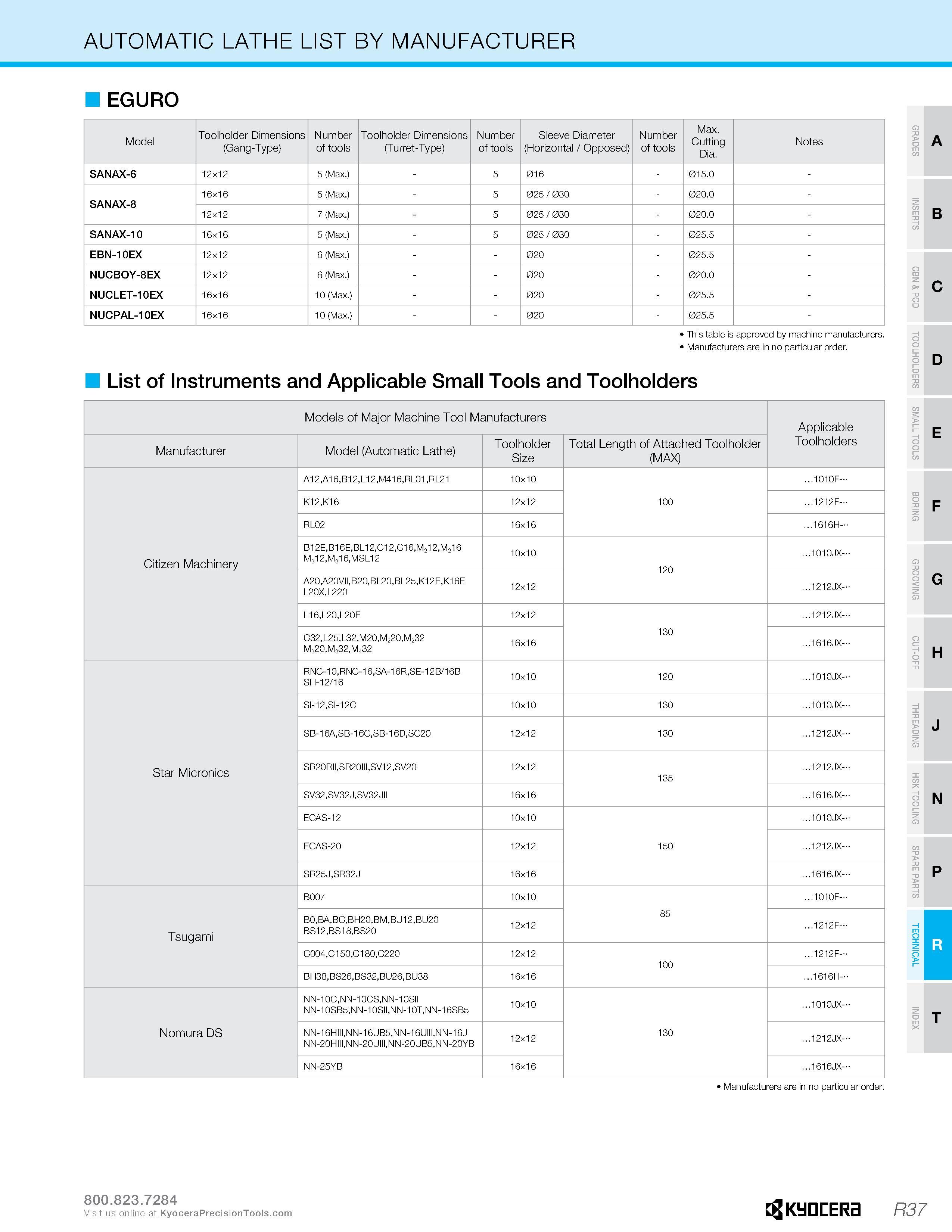

AUTOMATIC LATHE LIST BY MANUFACTURER EGURO Model Toolholder Dimensions (Gang-Type) Number of tools Toolholder Dimensions (Turret-Type) Number of tools Sleeve Diameter (Horizontal / Opposed) Number of tools Max. Cutting Dia. Notes SANAX-6 12x12 5 (Max.) 5 016 015.0 SANAX-8 16x16 5 (Max.) 5 025 / 030 020.0 12x12 7 (Max.) 5 025 / 030 020.0 SANAX-10 16x16 5 (Max.) 5 025 / 030 025.5 EBN-10EX 12x12 6 (Max.) 020 025.5 NUCBOY-8EX 12x12 6 (Max.) 020 020.0 NUCLET-10EX 16x16 10 (Max.) 020 025.5 NUCPAL-10EX 16x16 10 (Max.) 020 025.5 This table is approved by machine manufacturers. Manufacturers are in no particular order. List of Instruments and Applicable Small Tools and Toolholders Models of Major Machine Tool Manufacturers Applicable Toolholders Manufacturer Model (Automatic Lathe) Toolholder Size Total Length of Attached Toolholder (MAX) Citizen Machinery A12,A16,B12,L12,M416,RL01,RL21 10x10 100 ...1010F K12,K16 12x12 ...1212F RL02 16x16 ...1616H B12E,B16E,BL12,C12,C16,M212,M216 M312,M316,MSL12 10x10 120 ...1010JX- A20,A20VII,B20,BL20,BL25,K12E,K16E L20X,L220 12x12 ...1212JX L16,L20,L20E 12x12 130 ...1212JX C32,L25,L32,M20,M220,M232 M320.M332.M432 16x16 ...1616JX- Star Micronics RNC-10,RNC-16,SA-16R,SE-12B/16B SH-12/16 10x10 120 ...1010JX- SI-12,SI-12C 10x10 130 ...1010JX- SB-16A,SB-16C,SB-16D,SC20 12x12 130 ...1212JX- SR20RII,SR20III,SV12,SV20 12x12 135 ...1212JX- SV32,SV32J,SV32JII 16x16 ...1616JX- ECAS-12 10x10 150 ...1010JX- ECAS-20 12x12 ...1212JX- SR25J,SR32J 16x16 ...1616JX Tsugami B007 10x10 85 ...1010F B0,BA,BC,BH20,BM,BU12,BU20 BS12,BS18,BS20 12x12 ...1212F C004,C150,C180,C220 12x12 100 ...1212F BH38,BS26,BS32,BU26,BU38 16x16 ...1616H Nomura DS NN-10C,NN-10CS,NN-10SII NN-10SB5,NN-10SII,NN-10T,NN-16SB5 10x10 130 ...1010JX- NN-16HIII,NN-16UB5,NN-16UIII,NN-16J NN-20HIII,NN-20UIII,NN-20UB5,NN-20YB 12x12 ...1212JX- NN-25YB 16x16 .1616JX G H N p T Manufacturers are in no particular order. F J Kyocera R37
