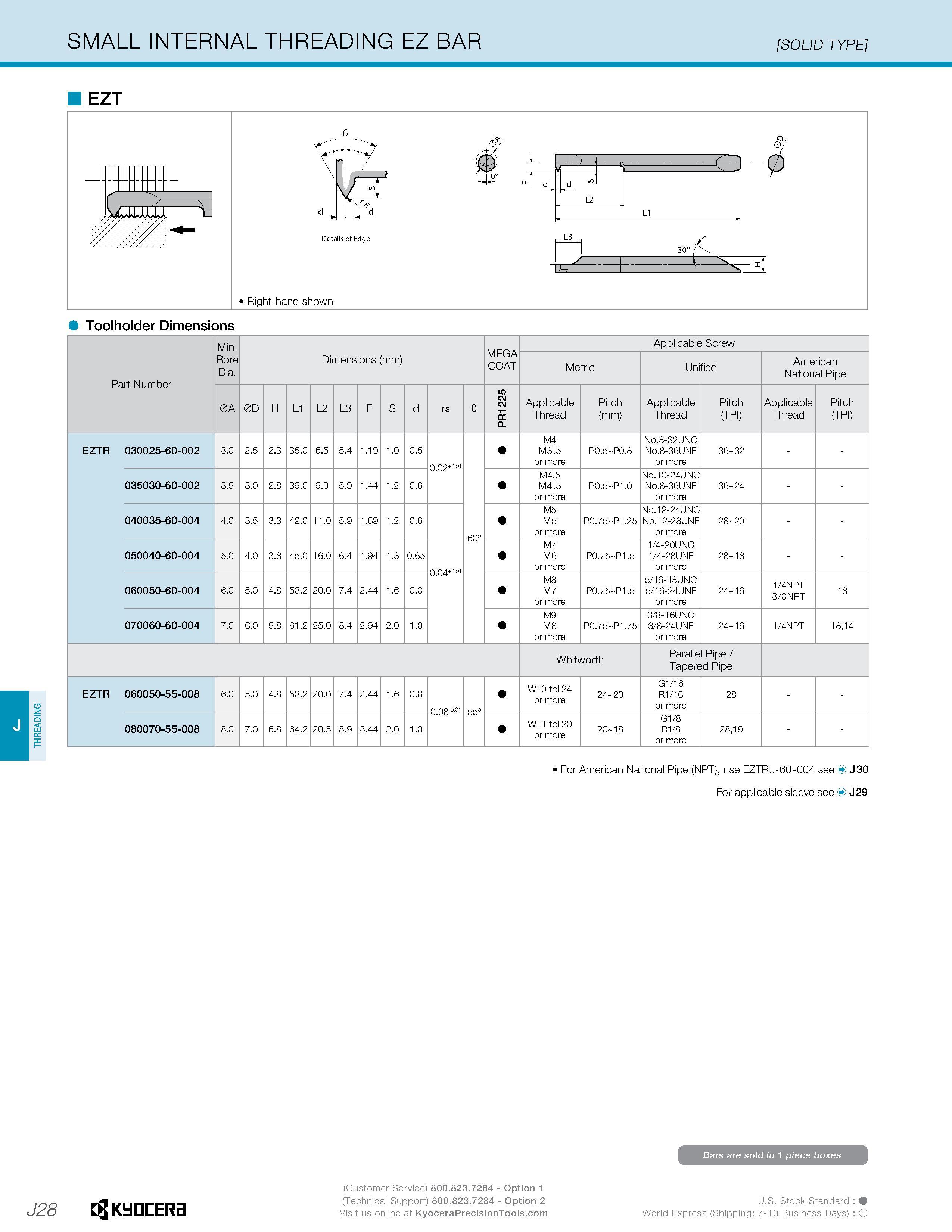

THREADING SMALL INTERNAL THREADING EZ BAR SOLID TYPE EZT Toolholder Dimensions Part Number Min. Bore Dia. Dimensions (mm) MEGA COAT Applicable Screw Metric Unified American National Pipe 0A 0D H L1 L2 L3 F S d r£ e 5 2 CM Applicable Thread Pitch (mm) Applicable Thread Pitch (TPI) Applicable Thread Pitch (TPI) EZTR 030025-60-002 3.0 2.5 2.3 35.0 6.5 5.4 1.19 1.0 0.5 0.02±0-01 60° M4 M3.5 or more P0.5 P0.8 No.8-32UNC No.8-36UNF or more 36 32 - 035030-60-002 3.5 3.0 2.8 39.0 9.0 5.9 1.44 1.2 0.6 M4.5 M4.5 or more P0.5 P1.0 No.10-24UNC No.8-36UNF or more 36 24 - 040035-60-004 4.0 3.5 3.3 42.0 11.0 5.9 1.69 1.2 0.6 0.04±0-°1 M5 M5 or more P0.75 P1.25 No.12-24UNC No.12-28UNF or more 28 20 - 050040-60-004 5.0 4.0 3.8 45.0 16.0 6.4 1.94 1.3 0.65 M7 M6 or more P0.75 P1.5 1/4-20UNC 1/4-28UNF or more 28 18 - 060050-60-004 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 M8 M7 or more P0.75 P1.5 5/16-18UNC 5/16-24UNF or more 24 16 1/4NPT 3/8NPT 18 070060-60-004 7.0 6.0 5.8 61.2 25.0 8.4 2.94 2.0 1.0 M9 M8 or more P0.75 P1.75 3/8-16UNC 3/8-24UNF or more 24 16 1/4NPT 18,14 Whitworth Parallel Pipe / Tapered Pipe EZTR 060050-55-008 6.0 5.0 4.8 53.2 20.0 7.4 2.44 1.6 0.8 0.08-0-01 55° W10 tpi 24 or more 24 20 G1/16 R1/16 or more 28 - 080070-55-008 8.0 7.0 6.8 64.2 20.5 8.9 3.44 2.0 1.0 W11 tpi 20 or more 20 18 G1/8 R1/8 or more 28,19 - For American National Pipe (NPT), use EZTR..-60-004 see J30 For applicable sleeve see J29 J28 Kyocera - Option 2 Bars are sold in 1 piece boxes U.S. Stock Standard World Express C
