434 Каталог KYOCERA 2016 Металлорежущий инструмент для токарной обработки на станках Стр.G74

Каталог KYOCERA 2016 Токарные резцы с пластинами Стр. G74 0434 ENG Lab2u

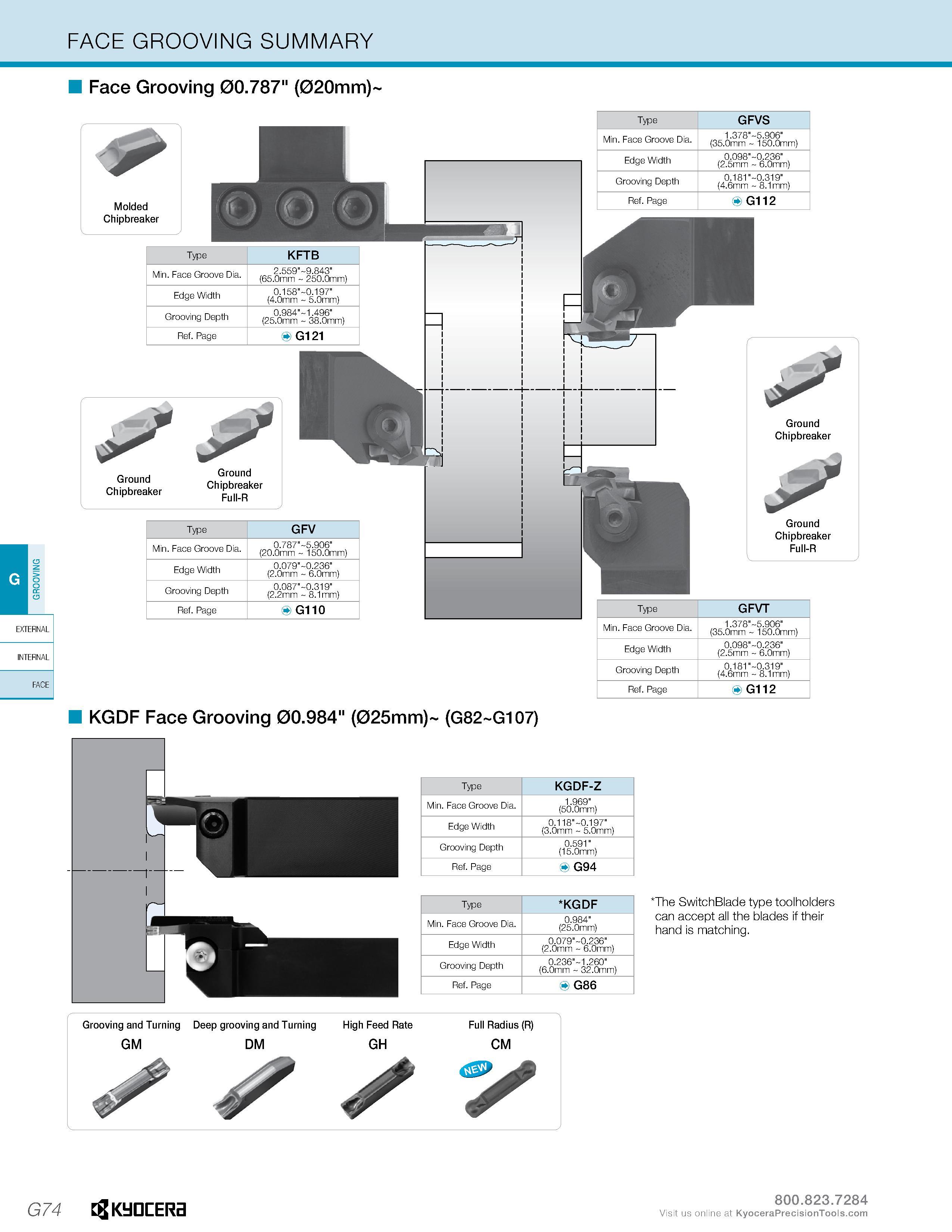

FACE GROOVING SUMMARY Face Grooving 00.787" (020mm)- Type GFVS Min. Face Groove Dia. 1.378" 5.9O6" (35.Omm 15O.Omm) Edge Width O.O98" O.236" (2.5mm 6.Omm) Grooving Depth O.181" O.319" (4.6mm 8.1mm) Ref. Page % G112 Type KFTB Min. Face Groove Dia. 2.559" 9.843" (65.Omm 25O.Omm) Edge Width O.158" O.197" (4.Omm 5.Omm) Grooving Depth O.984" 1.496" (25.Omm 38.Omm) Ref. Page % G121 Ground Chipbreaker Ground Chipbreaker Full-R Type GFV Min. Face Groove Dia. O.787" 5.9O6" (2O.Omm 15O.Omm) Edge Width O.O79" O.236" (2.Omm 6.Omm) Grooving Depth O.O87" O.319" (2.2mm 8.1mm) Ref. Page % G110 Type GFVT Min. Face Groove Dia. 1.378" 5.9O6" (35.Omm 15O.Omm) Edge Width O.O98" O.236" (2.5mm 6.Omm) Grooving Depth O.181" O.319" (4.6mm 8.1mm) Ref. Page % G112 KGDF Face Grooving 00.984" (025mm) (G82 G107) Type KGDF-Z Min. Face Groove Dia. 1.969" (5O.Omm) Edge Width O.118" O.197" (3.Omm 5.Omm) Grooving Depth O.591" (15.Omm) Ref. Page % G94 Type KGDF Min. Face Groove Dia. O.984" (25.Omm) Edge Width O.O79" O.236" (2.Omm 6.Omm) Grooving Depth O.236" 1.26O" (6.Omm 32.Omm) Ref. Page % G86 The SwitchBlade type toolholders can accept all the blades if their hand is matching. Grooving and Turning Deep grooving and Turning High Feed Rate GM DM GH Full Radius (R) CM EXTERNAL INTERNAL FACE G74 Kyocera
