425 Каталог KYOCERA 2016 Металлорежущий инструмент для токарной обработки на станках Стр.G65

Каталог KYOCERA 2016 Токарные резцы с пластинами Стр. G65 0425 ENG Lab2u

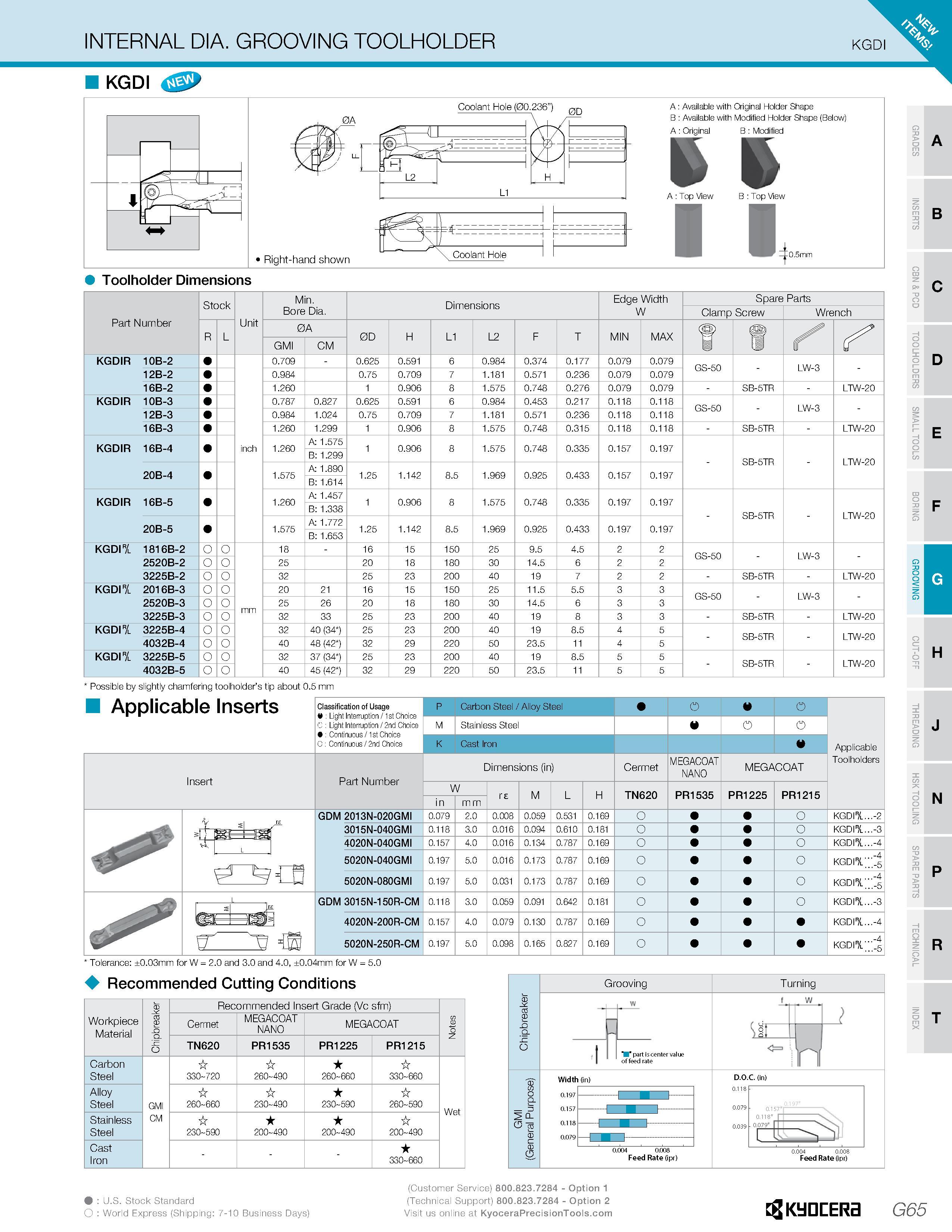

INTERNAL DIA. GROOVING TOOLHOLDER KGDI KGDI Coolant Hole (00.236”) 1 Right-hand shown A: Available with Original Holder Shape B Available with Modified Holder Shape (Below) A Original B Modified i I A Top View B Top View 0.5mm Toolholder Dimensions Stock Min. Dimensions Edge Width Spare Parts Unit Bore Dia. W Clamp Screw Wrench Hart Number L 0A 0D H L1 L2 F T MIN MAX m 1 GMI CM W m r if KGDIR 10B-2 0.709 - 0.625 0.591 6 0.984 0.374 0.177 0.079 0.079 GS-50 LW-3 12B-2 0.984 0.75 0.709 7 1.181 0.571 0.236 0.079 0.079 16B-2 1.260 1 0.906 8 1.575 0.748 0.276 0.079 0.079 - SB-5TR - LTW-20 KGDIR 10B-3 0.787 0.827 0.625 0.591 6 0.984 0.453 0.217 0.118 0.118 GS-50 LW-3 12B-3 0.984 1.024 0.75 0.709 7 1.181 0.571 0.236 0.118 0.118 16B-3 1.260 1.299 1 0.906 8 1.575 0.748 0.315 0.118 0.118 - SB-5TR - LTW-20 KGDIR 16B-4 inch 1.260 A 1.575 0.906 8 1.575 0.748 0.335 0.157 0.197 B 1.299 SB-5TR LTW-20 20B-4 1.575 A 1.890 1.25 1.142 8.5 1.969 0.925 0.433 0.157 0.197 B 1.614 KGDIR 16B-5 1.260 A 1.457 0.906 8 1.575 0.748 0.335 0.197 0.197 B 1.338 SB-5TR LTW-20 20B-5 1.575 A 1.772 1.25 1.142 8.5 1.969 0.925 0.433 0.197 0.197 B 1.653 KGDIr/l 1816B-2 18 - 16 15 150 25 9.5 4.5 2 2 GS-50 LW-3 2520B-2 25 20 18 180 30 14.5 6 2 2 3225B-2 32 25 23 200 40 19 7 2 2 - SB-5TR - LTW-20 KGDIr/l 2016B-3 20 21 16 15 150 25 11.5 5.5 3 3 GS-50 LW-3 2520B-3 mm 25 26 20 18 180 30 14.5 6 3 3 3225B-3 32 33 25 23 200 40 19 8 3 3 - SB-5TR - LTW-20 KGDIr/l 3225B-4 32 40 (34 ) 25 23 200 40 19 8.5 4 5 SB-5TR LTW-20 4032B-4 40 48 (42 ) 32 29 220 50 23.5 11 4 5 KGDIr/l 3225B-5 32 37 (34 ) 25 23 200 40 19 8.5 5 5 SB-5TR LTW-20 4032B-5 40 45 (42 ) 32 29 220 50 23.5 11 5 5 Possible by slightly chamfering toolholder’s tip about 0.5 mm Applicable Inserts Insert Classification of Usage Light Interruption /1 st Choice 0 Light Interruption / 2nd Choice Continuous /1 st Choice C: Continuous / 2nd Choice Carbon Steel / Alloy Steel Stainless Steel o Dimensions (in) Part Number W Cermet TN620 MEGACOAT NANO MEGACOAT PR1535 PR1225 PR1215 Applicable Toolholders GDM 2013N-020GMI 3015N-040GMI 4020N-040GMI 5020N-040GMI 5020N-080GMI KGDI7l...-2 KGDI"/l KGDI"/l KGDI"/l KGDI"/l -3 GDM 3015N-150R-CM KGDI"/l 4020N-200R-CM KGDI"/l 5020N-250R-CM KGDI"/l Tolerance: ±0.03mm for W 2.0 and 3.0 and 4.0, ±0.04mm for W - 5.0 Recommended Cutting Conditions Workpiece Material Chipbreaker Recommended Insert Grade (Vc sfm) Notes Cermet MEGACOAT NANO MEGACOAT TN620 PR1535 PR1225 PR1215 Carbon Steel GMI CM 330-720 260-490 260-660 330-660 Wet Alloy Steel 260-660 230-490 230-590 260-590 Stainless Steel 230-590 200-490 200-490 200-490 Cast Iron 330-660 Kyocera G65
