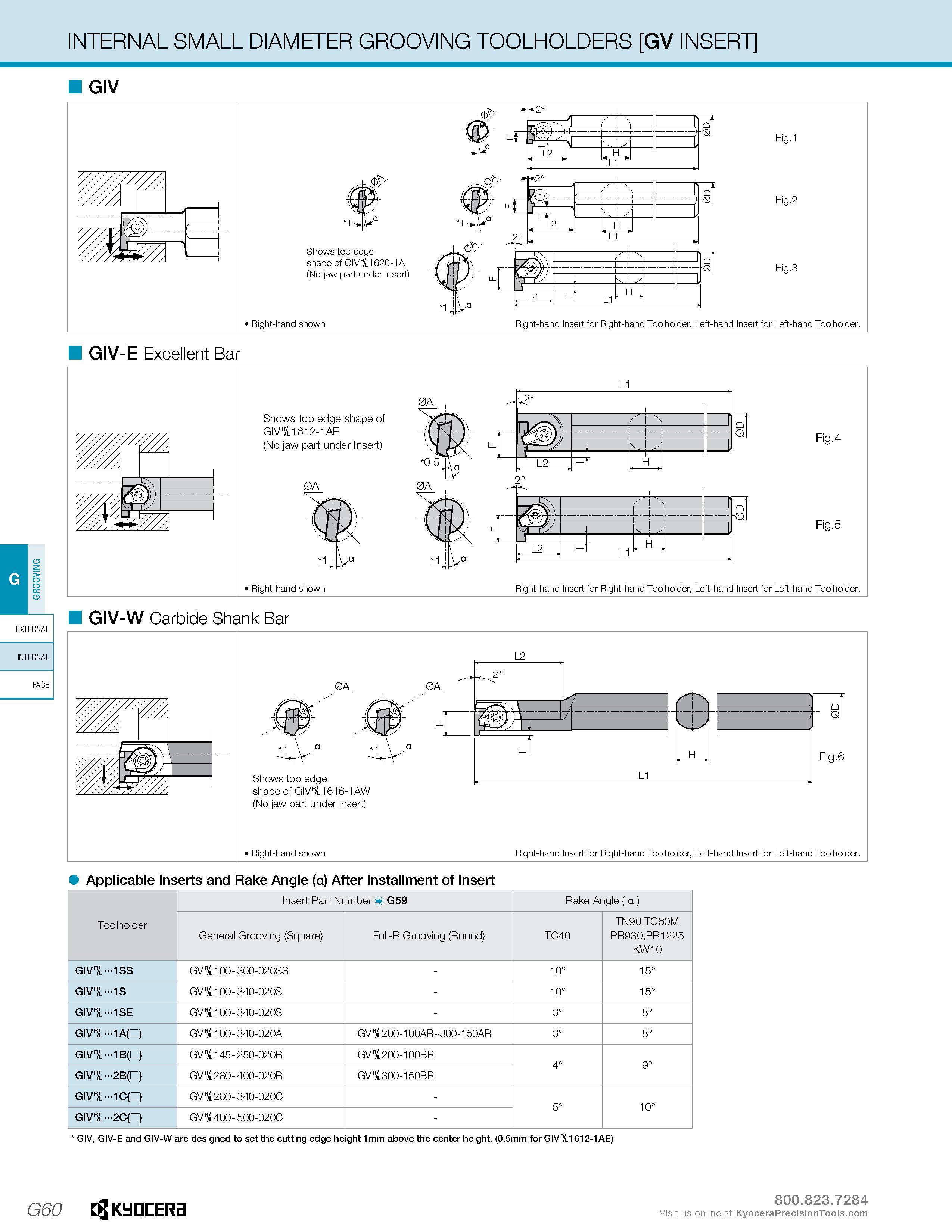

INTERNAL SMALL DIAMETER GROOVING TOOLHOLDERS GV INSERT GIV rLJTT" /W // H L1 Shows top edge shape of GIV 1620-1A (No jaw part under Insert) H L1 Fig.1 Fig.2 Fig.3 Right-hand shown Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. GIV-E Excellent Bar GIV-W Carbide Shank Bar L2 H L2 L1 EXIERNAL INTERNAL FACE Applicable Inserts and Rake Angle (a) After Installment of Insert Toolholder Insert Part Number G59 Rake Angle ( a ) General Grooving (Square) Full-R Grooving (Round) TC40 TN90,TC60M PR930,PR1225 KW10 giv7l-1SS GV 100 300-020SS - 10° 15° GIV7-1S GV 100 340-020S - 10° 15° giv7-ise GV 100 340-020S - 3° 8° giv7-1A(C) GV 100 340-020A GV 200-100AR 300-150AR 3° 8° giv7-1B(C) GV 145 250-020B GV 200-100BR 4° 9° GIV7-2B(C) GV 280 400-020B GV 300-150BR giv7-1C(C) GV 280 340-020C - 5° 10° GIV7-2C(C) GV 400 500-020C - GIV, GIV-E and GIV-W are designed to set the cutting edge height 1mm above the center height. (0.5mm for GIV 1612-1AE) G60 Kyocera
