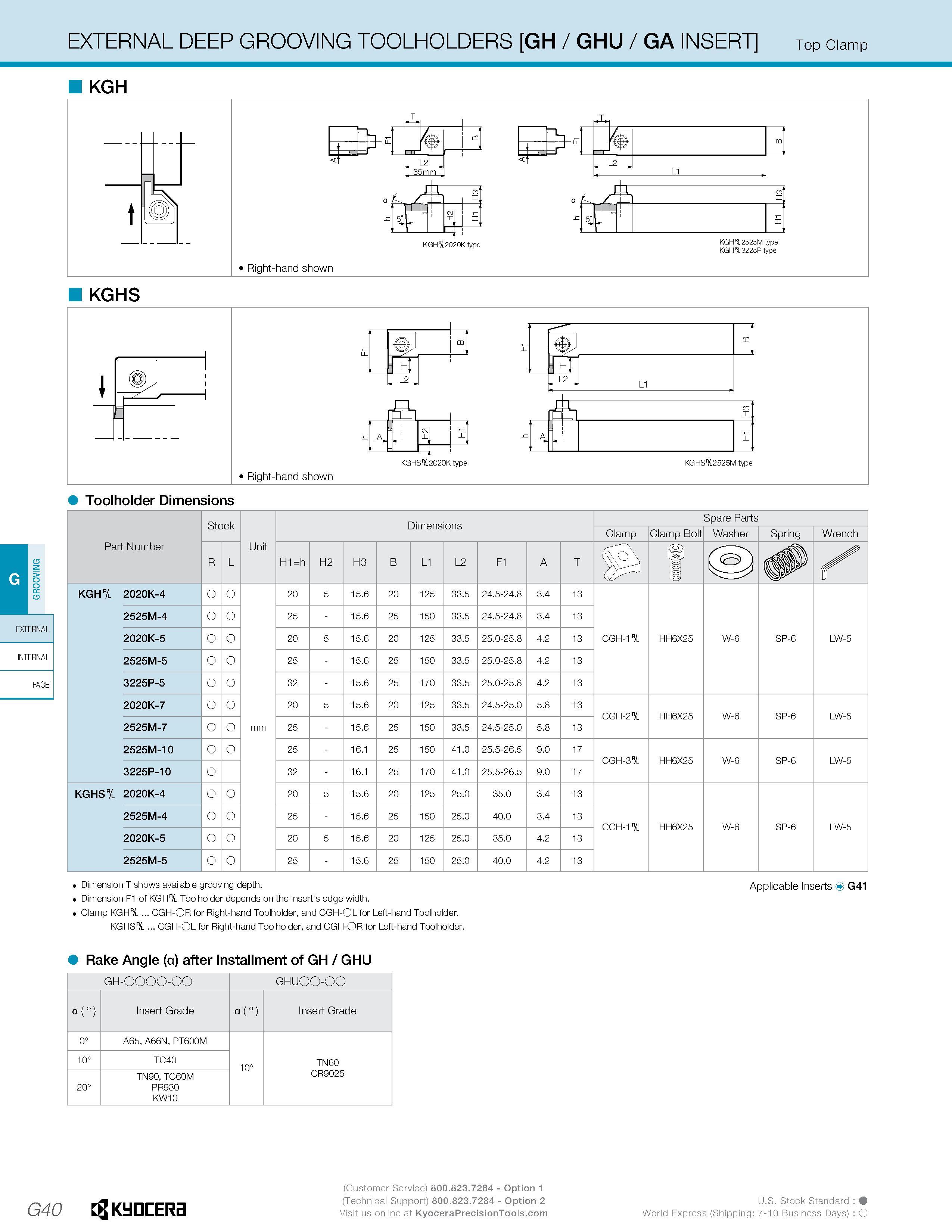

EXTERNAL DEEP GROOVING TOOLHOLDERS GH / GHU / GA INSERT Top Clamp KGH KGH 2020K type KGH 2525M type KGH 3225P type Right-hand shown T KGHS Toolholder Dimensions EXIERNAL INTERNAL FACE Dimension T shows available grooving depth. Applicable Inserts % G41 Dimension F1 of KGH Toolholder depends on the insert's edge width. Clamp KGH ... CGH-OR for Right-hand Toolholder, and CGH-OL for Left-hand Toolholder. KGHS ... CGH-OL for Right-hand Toolholder, and CGH-OR for Left-hand Toolholder. Rake Angle (a) after Installment of GH / GHU GH-OOOO-OO GHUOO-OO a Insert Grade a Insert Grade 0° A65, A66N, PT600M 10° TC40 10° TN60 20° TN90, TC60M PR930 KW10 CR9025 G40 Kyocera - C
